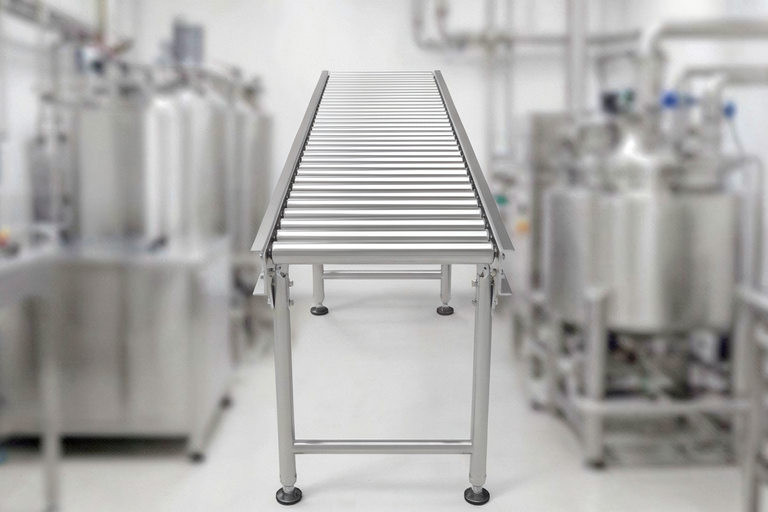

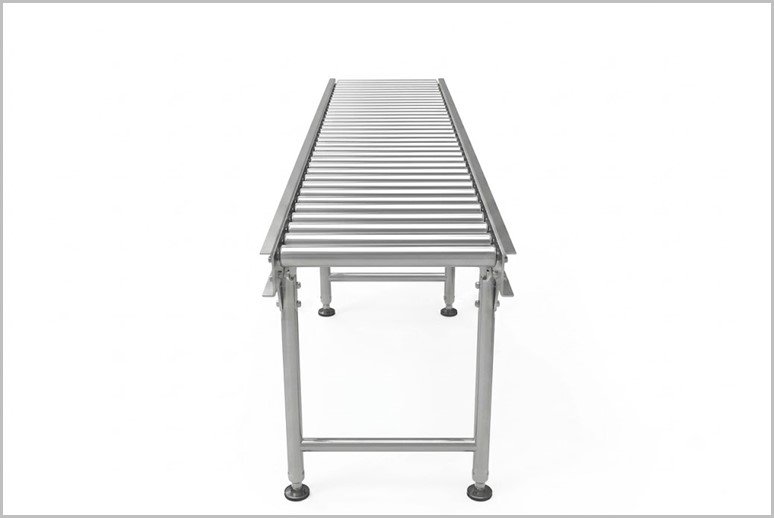

Drive Roller Conveyor

A Drive Roller Conveyor (also known as a powered roller conveyor, live roller conveyor, chain-driven live roller (CDLR), or motorized driven roller (MDR) conveyor) is a type of material handling system that uses powered rollers to automatically move goods along a path.

Unlike gravity roller conveyors, which rely on manual pushing or slight inclines for movement, driven roller conveyors employ motors to rotate the rollers, providing controlled, consistent transport of items such as boxes, totes, cartons, pallets, or packages with flat bottoms.

Drive Roller Conveyor Video

Key Features and How It Works

• Components: Consists of a series of cylindrical rollers mounted on a frame, supported by legs or stands. The rollers are driven by mechanisms like chains, belts, O-rings, or internal motors.

• Drive Types:

  • Chain-Driven Live Roller (CDLR): Heavy-duty; uses chains and sprockets to connect rollers to a central motor. Ideal for heavy loads (e.g., pallets) in dirty or oily environments.

  • Belt-Driven Live Roller (BDLR): Uses belts under or around rollers for smoother, quieter operation on lighter to medium loads.

  • Motorized Driven Roller (MDR): Modern, energy-efficient version with 24V DC brushless motors built directly into individual rollers. Often zoned for zero-pressure accumulation (items don’t touch while queuing), run-on-demand (only activates when needed), and low noise/safety.

• Advantages: High capacity, fast and controlled speed, ability to handle inclines/declines, accumulation without damage, reduced manual labor, and integration with automation (e.g., sensors for sorting or merging).

Salient Features of Conveyor

• Available in S.S./M.S. model.

• Available as per your require speed, length, height & width.

• Structure is made of S.S. 304/M.S. 32mm square pipe with matt finish/painted.

• Table top is made of S.S.304 16 gauge sheet with matt finish.

• Conveyor Belt is supplied with 3 speed pulley.

• Special Self-aligning bearing ensure smooth and trouble free rotation of the Roller.

• Conveyor belt is used as PVC coated canvas belt/endless rubberized belt.

• The Reduction Gear Box provides jerk less & noiseless performance for long time.

Technical Specification of Packaging Conveyor

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
