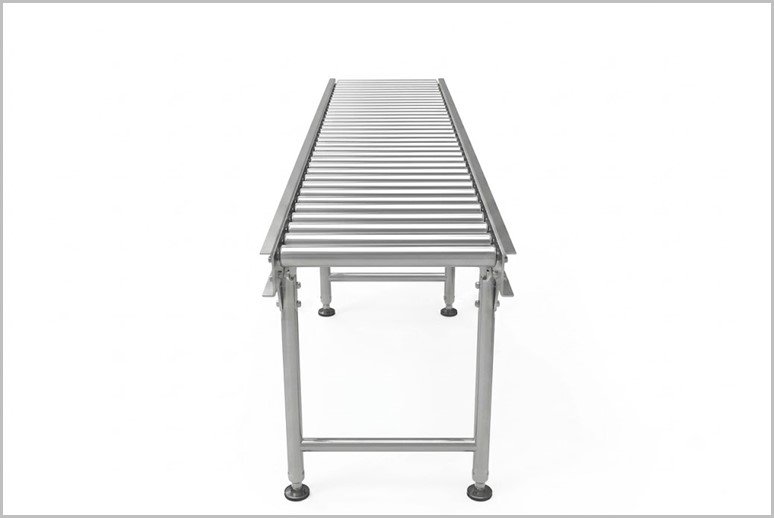

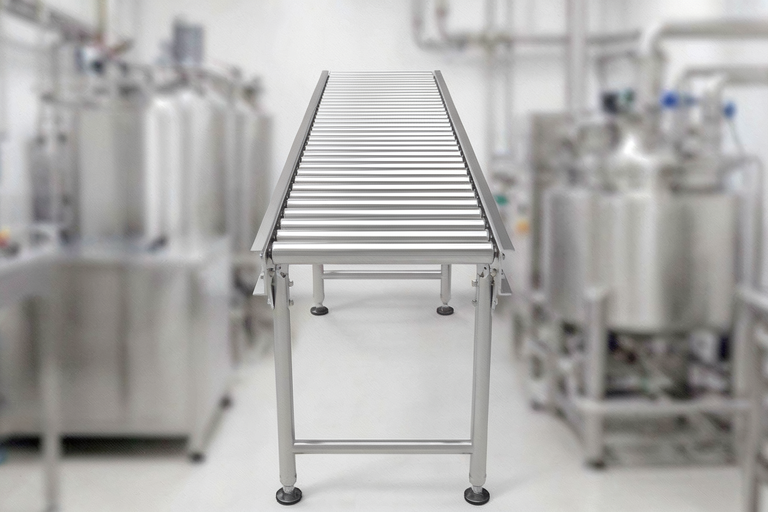

A Flexible Moving Gravity Roller Conveyor (also known as an expandable, portable, or accordion-style gravity roller conveyor) is a non-powered material handling system designed for temporary or dynamic setups. It uses gravity to move items along a series of rollers, with no motors or electricity required.
Flexible Moving Gravity Roller Conveyor Video
Key Features
-
Expandable and Contractible — Extends to various lengths (e.g., 8–60 feet) and collapses for compact storage.
-
Flexible and Curvable — Bends around corners or curves to adapt to changing layouts, such as around obstacles or multiple dock doors.
-
Portable and Movable — Equipped with swivel casters (often with brakes) for easy repositioning by one operator.
-
Height Adjustable — Legs adjust to create a slight incline for gravity flow or match different working heights (typically 27–43 inches).
-
Roller Design — Steel or galvanized rollers (e.g., 1.5–1.9 inches diameter) suit flat-bottomed or irregular packages better than skatewheel versions; self-tracking to keep items centered even in curves.
Common Applications
Roller Conveyor excel in loading/unloading trucks, shipping/receiving docks, temporary assembly lines, packaging stations, warehouses, distribution centers, and retail backrooms. They handle odd-shaped cartons, drums, pails, or boxes where fixed conveyors aren’t practical.
Benefits
-
Cost-effective (no power needed).
-
Quick setup/reconfiguration.
-
Reduces manual lifting and improves ergonomics.
-
Load capacities typically 200–400 lbs per linear foot.
Salient Features of Conveyor
-
Available in S.S./M.S. model.
-
Available as per your require speed, length, height & width.
-
Structure is made of S.S. 304/M.S. 32mm square pipe with matt finish/painted.
-
Table top is made of S.S.304 16 gauge sheet with matt finish.
-
Conveyor Belt is supplied with 3 speed pulley.
-
Special Self-aligning bearing ensure smooth and trouble free rotation of the Roller.
-
Conveyor belt is used as PVC coated canvas belt/endless rubberized belt.
-
The Reduction Gear Box provides jerk less & noiseless performance for long time.
Technical Specification of Packaging Conveyor
| Electrical Load | Depends upon the length of conveyor belt. |
| Height | 815 mm with 75 mm Adjustable Height. |
| Width | Table Top of 12 Working Space on both side of the conveyor Belt. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
