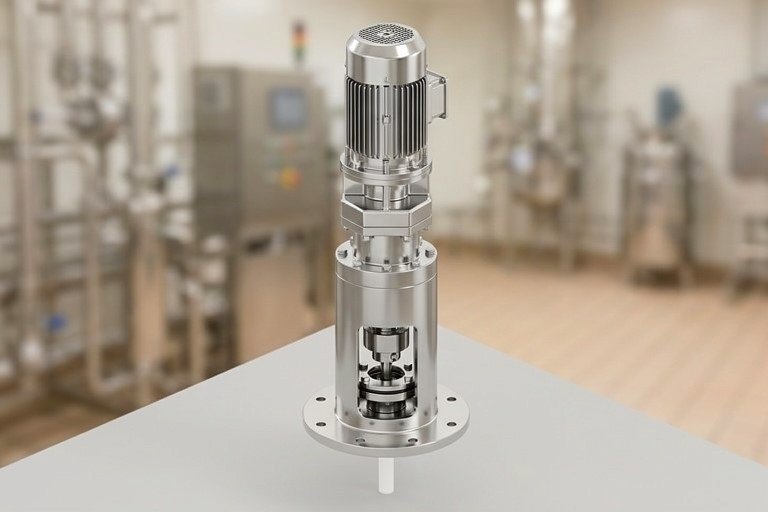

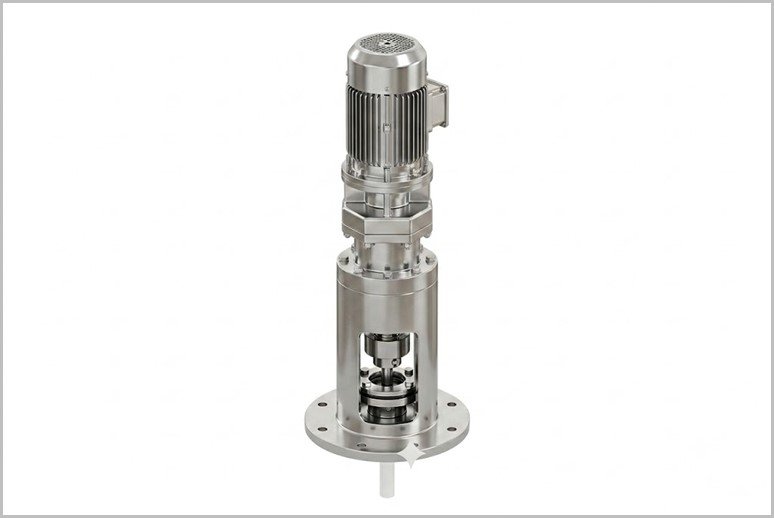

An Industrial Liquid Agitator (also known as an industrial mixer, stirrer, or tank agitator) is a mechanical device used to mix, blend, homogenize, or agitate liquids, often with solids or gases, in large tanks or vessels. It works by rotating an impeller (a set of blades) attached to a shaft, which imparts kinetic energy to the fluid, creating flow patterns like axial (down/up), radial (outward), or turbulent shear. This ensures uniformity, prevents settling, promotes heat transfer, or facilitates chemical reactions.
These devices are essential in industries where consistent mixing is critical for product quality and process efficiency.
Industrial Liquid Agitator Video
Key Components
-
Motor/Drive: Provides power (electric, pneumatic, or hydraulic).
-
Shaft: Connects the motor to the impeller.
-
Impeller: The rotating blades that do the actual mixing.
-
Mounting: Top-entry (most common), side-entry, or bottom-entry.
-
Seals: Prevent leaks in pressurized or sealed tanks.
Common Types of Agitators and Impellers
The type depends on viscosity, tank size, and mixing goal (e.g., low-viscosity blending vs. high-viscosity suspension).
-
Propeller Agitators: Axial flow, efficient for low-viscosity liquids; good for homogenization and heat transfer.
-
Turbine Agitators: Radial flow with flat or pitched blades; high shear for emulsions, dispersions, and gas-liquid mixing.
-
Paddle/Anchor Agitators: Slow-speed, close to tank walls; ideal for high-viscosity fluids and preventing settling.
-
Helical Ribbon Agitators: For very high-viscosity or pasty liquids; creates folding motion.
Applications by Industry
-
Chemical/Pharmaceutical: Blending reagents, emulsions, suspensions.
-
Food & Beverage: Mixing sauces, beverages, fermentation.
-
Water/Wastewater Treatment: Flocculation, pH adjustment.
-
Oil & Gas/Mining: Slurry suspension, crude oil homogenization.
Advantages
-
Ensures product uniformity and consistency.
-
Improves reaction rates and heat transfer.
-
Customizable for specific viscosities and tank sizes.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
