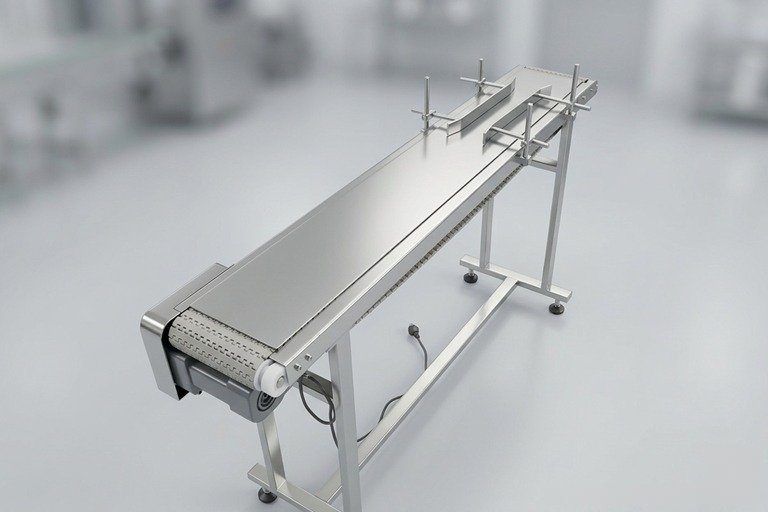

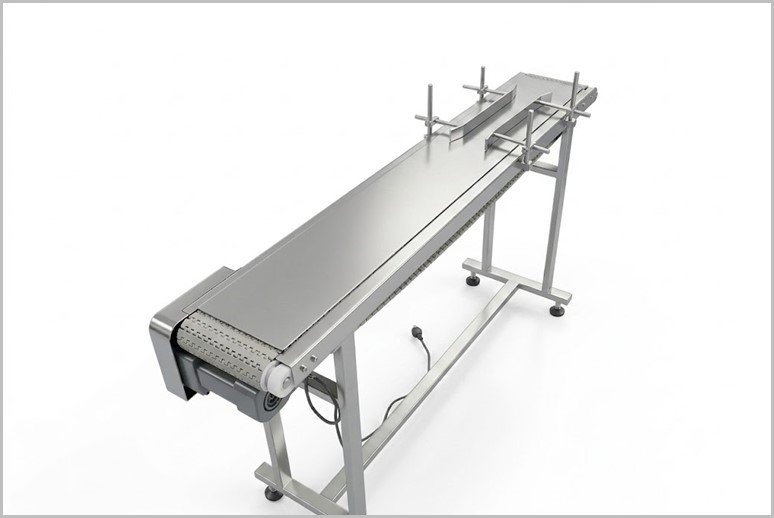

Stainless Steel Wire Mesh Conveyor

A Stainless Steel Wire Mesh Conveyor belt is a type of industrial conveyor belt constructed from interwoven or linked stainless steel wires, forming a flexible, open-mesh structure. It is commonly made from food-grade materials like SS304 or SS316 stainless steel, which provide excellent durability and resistance to corrosion.

Stainless Steel Wire Mesh Conveyor Video

Key Features

• Open mesh design — Allows air, water, and fluids to pass through easily, ideal for drainage, drying, cooling, or heating processes.

• High strength and flexibility — Supports heavy loads while allowing tight turns and small-diameter looping.

• Corrosion and heat resistance — Withstands high temperatures (up to 1150°C in some grades) and harsh environments, including wet, acidic, or chemical exposure.

• Easy to clean and sanitize — Open structure prevents buildup; often meets USDA/FDA standards for hygiene.

• Flat, smooth surface — Provides stable support for small or delicate items; customizable mesh sizes (close for support or large openings for airflow).

• Long-lasting and low maintenance — Resistant to wear, with options for modular repairs.

Common types include:

• Balanced weave (spirals connected by rods for stability).

• Flat flex (lightweight and flexible).

• Chain-driven.

• Rod-reinforced designs.

Common Applications

These belts are widely used in industries requiring hygiene, temperature extremes, or drainage:

• Food processing → Baking, cooling, freezing, drying (e.g., bread, cookies, snacks, vegetables).

• Industrial manufacturing → Heat treating, sintering, metallurgy, glass annealing.

• Pharmaceuticals and chemicals → Washing, drying, or conveying in corrosive settings.

• Other uses → Cooling hot parts, draining oils/lubricants, or general material handling.

Salient Features of Conveyor

• Available in S.S./M.S. model.

• Available as per your require speed, length, height & width.

• Structure is made of S.S. 304/M.S. 32mm square pipe with matt finish/painted.

• Table top is made of S.S.304 16 gauge sheet with matt finish.

• Conveyor Belt is supplied with 3 speed pulley.

• Special Self-aligning bearing ensure smooth and trouble free rotation of the Roller.

• Conveyor belt is used as PVC coated canvas belt/endless rubberized belt.

• The Reduction Gear Box provides jerk less & noiseless performance for long time.

Technical Specification of Stainless Steel Wire Mesh Conveyor

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
