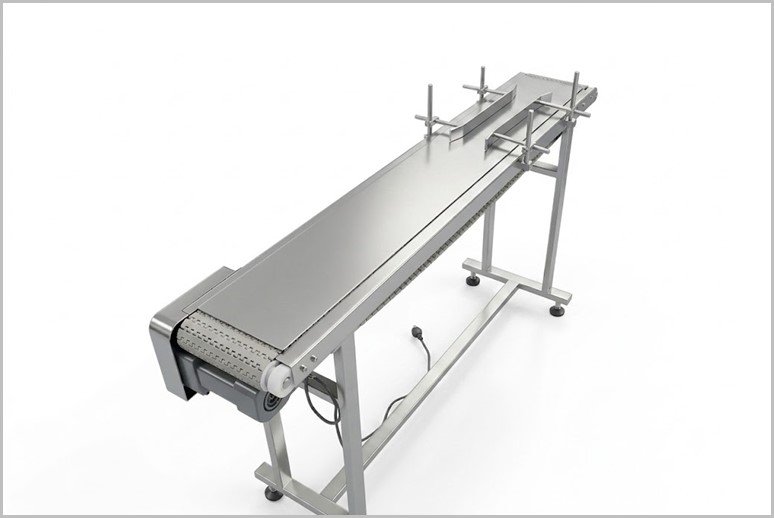

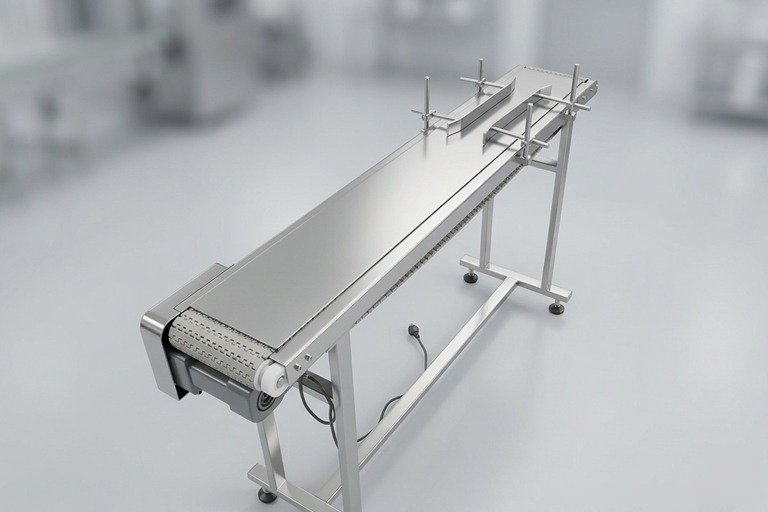

Wire Mesh Conveyor

A Wire Mesh Conveyor (often just called a wire mesh conveyor) is a type of conveyor system that uses a belt made from interlinked metal wires, typically stainless steel, woven or looped together to form an open, flexible, and durable mesh surface. This design creates an endless belt that moves products continuously along a production line. The open structure allows for excellent airflow, drainage, and visibility, distinguishing it from solid belts like rubber or PVC.

Common constructions include:

• Balanced weave (alternating left- and right-hand spirals connected by crimped rods).

• Flat wire (hinged steel for a flat surface).

• Various mesh sizes, from tight weaves for small items to open grids for larger or heavier loads.

Wire Mesh Conveyor Video

Key Advantages

• High temperature resistance: Handles extreme heat (up to 1,200°C in some models) or cold, ideal for ovens, freezers, or quenching.

• Excellent airflow and drainage: Open mesh promotes cooling, drying, washing, or rinsing without pooling liquids.

• Durability and strength: Resistant to corrosion, impact, and wear; suitable for heavy or abrasive materials.

• Easy cleaning and low maintenance: Open design minimizes buildup; quick sanitation for food-grade applications.

• Versatility: Conveys items that rollers or solid belts can’t handle, like odd-shaped or hot/oily parts.

Common Applications and Uses

Wire mesh conveyors are widely used in industries requiring heat, cooling, washing, or drainage:

• Food processing (baking, cooling baked goods, snack foods, freezing).

• Heat treating, forging, and foundry operations.

• Glass, ceramics, and automotive parts handling.

• Washing/drying lines (e.g., parts cleaning or produce rinsing).

• High-impact or dirty environments (e.g., conveying hot, oily, or sharp items).

Salient Features of Conveyor

• Available in S.S./M.S. model.

• Available as per your require speed, length, height & width.

• Structure is made of S.S. 304/M.S. 32mm square pipe with matt finish/painted.

• Table top is made of S.S.304 16 gauge sheet with matt finish.

• Conveyor Belt is supplied with 3 speed pulley.

• Special Self-aligning bearing ensure smooth and trouble free rotation of the Roller.

• Conveyor belt is used as PVC coated canvas belt/endless rubberized belt.

• The Reduction Gear Box provides jerk less & noiseless performance for long time.

Technical Specification of Wire Mesh Conveyor

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
