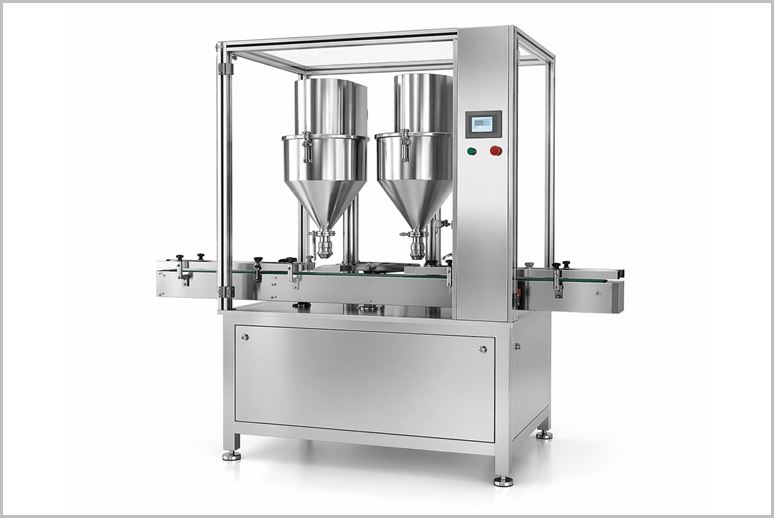

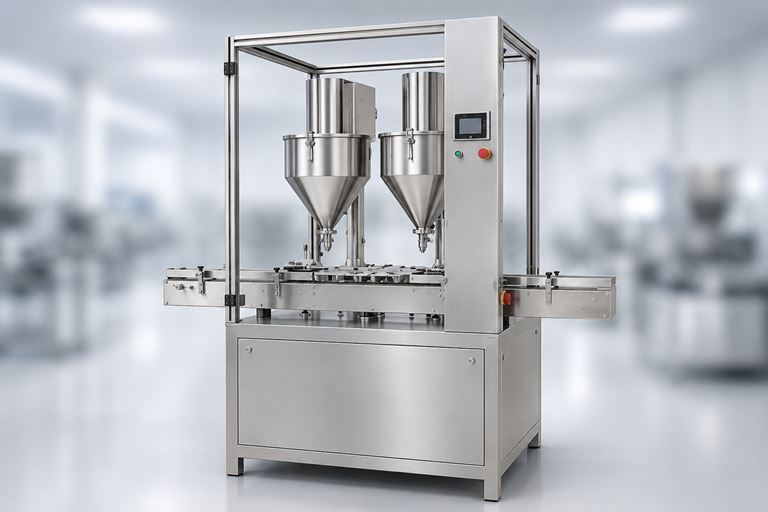

High Speed Auger Powder Filling Machine

Q: What is the production capacity and filling accuracy of the machine?

The machine is available in multiple models: AI-APF 1 : Up to 30 bottles per minute AI-APF 2 : Up to 60 bottles per minute AI-APF 3 : Up to 90 bottles per minute Fill volume ranges from 5gms to 60gms per dose (customizable). Filling accuracy is ±2% to ±3% , depending on powder bulk density uniformity, humidity control, and consistency.

Description

High Speed Auger Powder Filling Machine is a specialized piece of industrial packaging equipment designed for precise, volumetric dispensing of dry powders, granules, and similar non-free-flowing or free-flowing materials into containers like bottles, jars, pouches, or bulk drums. It uses a rotating auger screw driven by a motor to measure and deposit exact amounts of product. Auger Powder Filling Machine are essential in industries such as food, pharmaceuticals, chemicals, and cosmetics, where accuracy, speed, and minimal dust are critical. The “high-speed” aspect typically refers to throughput rates of 60–400+ containers per minute (cpm), depending on the model, product viscosity, and container size. They outperform basic gravity or vibratory fillers by handling challenging products without clumping or waste, often integrating with conveyors, checkweighers, or form-fill-seal (FFS) systems for automated production lines.

Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.

Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.

Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.

Structure Body: This is basic structure that supports the entire system.

Controls: This is the main mechanism to operate the machine parameters.

If you need details on specific models and pricing, let me know!

Salient Features of High Speed Auger Powder Filling Machine

Compact design.
High-efficiency.
Easy to move.
Condensed structure.
Apt for both free-flowing and less free-flowing products.

Dust free with fine powders.
Cost-effective.
Easy to operate due to a programmable logic controller and touch screen with multiple languages.
Corrosion resistant as it is made of premium stainless steel.
Well-suited for all sorts of fine powders.

Working Principle of High Speed Auger Powder Filling Machine

The system is made of three main components inclusive of- filling machine, screw conveyor system and an overhead or ground level storage unit. The screw conveyor system feeds the powder directly in to the hopper of the machine where powder levels drop below certain pre-set levels. The mechanism of the machine is designed in such a way that constant feeding of powder in the filling hopper is restricted. The machine is equipped with capacity sensors for perfect sensing. This ensures the entire operation is smooth and accurate as intended. We offer spices powder filling machine which is apt for filling granules and powders.

Hopper Feeding: Product is loaded into a hopper above the auger.

Auger Rotation: A servo or variable-speed motor rotates the auger at a calibrated speed, drawing a precise volume of powder into its flights (threads).

Dispensing: The auger deposits the measured product into the container below. An agitator blade prevents bridging or rat-holing in the hopper.

Indexing and Control: For high-speed models, servo-driven indexing moves containers rapidly; PLC controls ensure repeatability.

Cleanup: Many feature quick-release augers for easy sanitation, complying with FDA or GMP standards.

High-speed variants often use multi-spindle or rotary continuous-motion designs to parallelize filling, reducing bottlenecks.

Technical Specification of High Speed Auger Powder Filling Machine

Models	AI-APF 1	AI-APF 2	AI-APF 3
Production Output	Up to 30 bottles/minute	Up to 60 bottles/minute	Up to 90 bottles/minute
Fill Volume	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System
Container Size	Custom made as per required container size	Custom made as per required container size	Custom made as per required container size
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder
Power Load	2 H. P.	3 H. P.	4.5 H. P.
Overall Dimension	1810 mm (L) x 905 mm (W) x 1900 mm approx.	2300 mm (L) x 905 mm (W) x 1900 mm approx.	3000 mm (L) x 905 mm (W) x 1900 mm approx.
Conveyor Height	850 – 950 mm adjustable	850 – 950 mm adjustable	850 – 950 mm adjustable
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of High Speed Auger Powder Filling Machine

Excellent Filling Accuracy

cGMP-Compliant & Hygienic Design

Advanced Controls & Efficiency

Reduced Waste & Enhanced Safety

Key Features of High Speed Auger Powder Filling Machine

Accuracy: Volumetric control via auger pitch and rotation speed; fill weights from micro-doses to bulk .

Speed: Up to 400 cpm for free-flowing powders; 70–120 cpm for non-free-flowing.

Versatility: Handles fine powders, granules, or viscous pastes; customizable augers for different products.

Efficiency: Low maintenance with direct-drive motors; dust-free operation via enclosed hoppers.

Integration: Easily pairs with baggers, pouch machines, or labeling systems.

Drawbacks: Best for dry/non-cohesive products; may require product-specific tooling changes.

FAQ for High Speed Auger Powder Filling Machine

What is a High Speed Auger Powder Filling Machine and how does it work?

A High Speed Auger Powder Filling Machine is an automatic volumetric filler that uses a rotating auger screw to precisely dispense dry powders, granules, and similar materials into containers like bottles, jars, or pouches. Powder is loaded into a hopper with an agitator to ensure consistent flow. A servo or clutch-driven auger rotates to meter the exact volume, which is then deposited into indexed containers via conveyor. PLC controls and sensors (including “No Bottle – No Fill”) ensure smooth, high-speed operation with minimal dust and waste.

What is the production capacity and filling accuracy of the machine?

The machine is available in multiple models:

AI-APF 1: Up to 30 bottles per minute
AI-APF 2: Up to 60 bottles per minute
AI-APF 3: Up to 90 bottles per minute

Fill volume ranges from 5gms to 60gms per dose (customizable). Filling accuracy is ±2% to ±3%, depending on powder bulk density uniformity, humidity control, and consistency.

What types of powders and containers can it handle?

It is suitable for both free-flowing and non-free-flowing fine powders, granules, and similar materials used in pharmaceuticals, cosmetics, chemicals, food, nutraceuticals, and agriculture. Container sizes are custom-made according to requirements. All product contact parts are made of premium stainless steel (SS316 contact parts) for hygiene and corrosion resistance.

What are the key features and benefits of the High Speed Auger Powder Filling Machine?

Compact, high-efficiency GMP design with sturdy SS structure
PLC with touch screen HMI (multi-language support) for easy operation
Dust-free operation and agitator in hopper to prevent bridging
Quick changeover, easy cleaning, and tool-less adjustments
“No Bottle – No Fill” system and integration with capping/labeling lines

Benefits include higher throughput, excellent accuracy, reduced labor and wastage, low maintenance, and cost-effectiveness for medium to high-volume production.

Is the machine cGMP compliant and what maintenance does it require?

Yes, it features a cGMP-compliant design with corrosion-resistant stainless steel construction and easy-to-clean parts, making it suitable for pharmaceutical and food-grade applications. Maintenance is minimal due to robust build and quick-release components. Regular tasks include hopper and auger cleaning, checking sensors, and maintaining controlled humidity (<30% RH) for optimal powder flow and accuracy. Quick change parts help minimize downtime.
