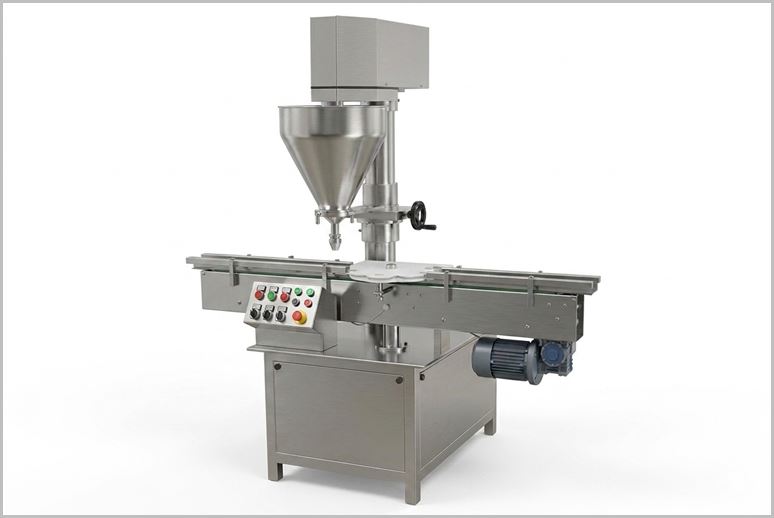

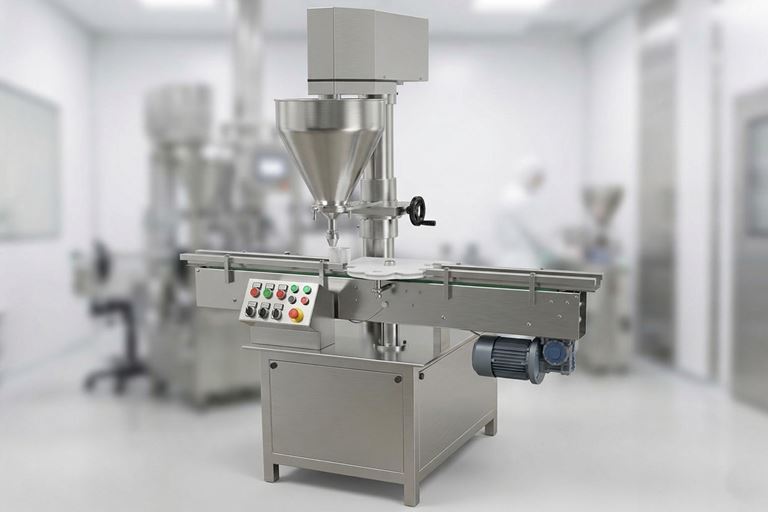

Pharmaceutical Powder Filling Machine

Q: What is the filling accuracy and production capacity of the machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density, and environmental conditions). Production output varies by model: Single-head: up to 30 bottles/min Double-head: up to 60 bottles/min Triple-head: up to 90 bottles/min Fill volumes typically range from 5g to 60g per dose. Servo-driven options and check-weighing systems can further improve precision.

Description

Pharmaceutical Powder Filling Machine are specialized equipment designed for the precise, automated dosing and filling of dry powders into containers like vials, bottles, capsules, or syringes. These machines are essential in the pharmaceutical industry to ensure sterility, minimize contamination, achieve high accuracy, and comply with regulations like GMP (Good Manufacturing Practices). They handle a range of powder types, from free-flowing granules to cohesive fine powders, and are used in aseptic processing for injectables, nutraceuticals, and oral formulations. Key benefits include reduced waste, faster production rates, and features like enclosed pathways to prevent dust exposure and cross-contamination. Common applications include filling lyophilized (freeze-dried) drugs, dry syrups, and high-potency APIs.

Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.

Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.

Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.

Structure Body: This is basic structure that supports the entire system.

Controls: This is the main mechanism to operate the machine parameters.

If you need details on specific models and pricing, let me know!

Salient Features of Pharmaceutical Powder Filling Machine

Standard as well as Optional Servo Driven Filling Head.
Multiple auger head system as per customer requirements.
All contact parts made of SS316 and Nylon/HDPE material with easy removal system for Cleaning.
Machine construction in SS304 material.
Filling Accuracy of +/- 3% depending upon powder characteristics and environmental conditions.

A.C. Variable Frequency Drive Speed Control
Built in Turn Tables with Separate Drive for speed control.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered.
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.

Working Principle of Pharmaceutical Powder Filling Machine

Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.

Most pharmaceutical powder filling machines use auger dosing technology, where a rotating auger screw draws powder from a hopper and dispenses a measured volume into the container. Advanced models incorporate:

Servo motors for precise control and tool-free adjustments.

Check-weighing systems for 100% in-line verification.

Vibration or fluidization to ensure uniform powder flow, especially for challenging materials.

PLC (Programmable Logic Controller) and HMI for automation and easy validation.

The process typically involves: powder loading into a hopper → agitation/fluidization → auger dosing → filling into containers → optional stoppering/capping → ejection.

Technical Specification of Pharmaceutical Powder Filling Machine

Models	AI-APF 1	AI-APF 2	AI-APF 3
Production Output	Up to 30 bottles/minute	Up to 60 bottles/minute	Up to 90 bottles/minute
Fill Volume	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System
Container Size	Custom made as per required container size	Custom made as per required container size	Custom made as per required container size
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder
Power Load	2 H. P.	3 H. P.	4.5 H. P.
Overall Dimension	1810 mm (L) x 905 mm (W) x 1900 mm approx.	2300 mm (L) x 905 mm (W) x 1900 mm approx.	3000 mm (L) x 905 mm (W) x 1900 mm approx.
Conveyor Height	850 – 950 mm adjustable	850 – 950 mm adjustable	850 – 950 mm adjustable
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machine

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machine

Advantages of Pharmaceutical Powder Filling Machine

High Filling Accuracy and Consistency

Enhanced Sterility and Product Safety (Especially for Injectables)

Hygienic Design and Easy Maintenance

Versatility and Regulatory Compliance

Economic and Operational Benefits

Key Features of Pharmaceutical Powder Filling Machine

Sterility & Containment: Machines often feature seamless stainless steel augers, HEPA filtration, and isolator compatibility for high-containment.

Versatility: Handle multiple powders in one run (e.g., dual dosing for blends) and container sizes without major retooling.

Maintenance: Tool-less disassembly for CIP and SIP validation.

Challenges: Sticky or hygroscopic powders may require anti-static coatings or nitrogen purging.

FAQ for Pharmaceutical Powder Filling Machine

What is a Pharmaceutical Powder Filling Machine and how does it work?

A Pharmaceutical Powder Filling Machine is specialized equipment used for the precise, automated dosing and filling of dry powders into containers such as vials, bottles, or jars. It primarily uses auger dosing technology, where a rotating helical screw (auger) draws powder from a hopper and dispenses a measured volume into each container. The process involves a conveyor transporting containers to the filling station, a sensor triggering the auger via a magnetic clutch, and controls ensuring consistent fills. Advanced models include servo motors, PLC/HMI systems, and optional laminar airflow for sterile (Class 100) operations.

What is the filling accuracy and production capacity of the machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density, and environmental conditions). Production output varies by model:

Single-head: up to 30 bottles/min
Double-head: up to 60 bottles/min
Triple-head: up to 90 bottles/min

Fill volumes typically range from 5g to 60g per dose. Servo-driven options and check-weighing systems can further improve precision.

What types of powders and containers can it handle?

It is suitable for both free-flowing and non-free-flowing powders, including fine cohesive powders, granules, and challenging materials used in injectables, dry syrups, antibiotics, and lyophilized drugs. Contact parts are SS316 with easy-clean design. The machine handles custom container sizes (vials, bottles, etc.) with quick changeover tooling. It is ideal for pharmaceutical, nutraceutical, biotech, and related industries requiring GMP compliance.

What are the key features and compliance standards?

Key features include:

SS316 contact parts and SS304 structure
Servo-driven or multiple auger heads
Variable speed control via AC drive
PLC with HMI (optional)
Inbuilt laminar airflow for sterile filling
IQ/OQ documentation support

The machine is designed for cGMP compliance, with hygienic, easy-maintenance construction to minimize contamination and support sterile aseptic processing.

How do I maintain the machine and ensure long-term performance?

Maintenance is straightforward thanks to tool-less disassembly, quick-release tooling, and easy-clean contact parts. Regular cleaning of the auger, hopper, and funnels is recommended, along with checking seals and sensors. Optional features like dust extraction and laminar flow help maintain sterility. The robust design supports low downtime, and we provide full technical support, spare parts, and validation documentation (IQ/OQ) for regulatory compliance.
