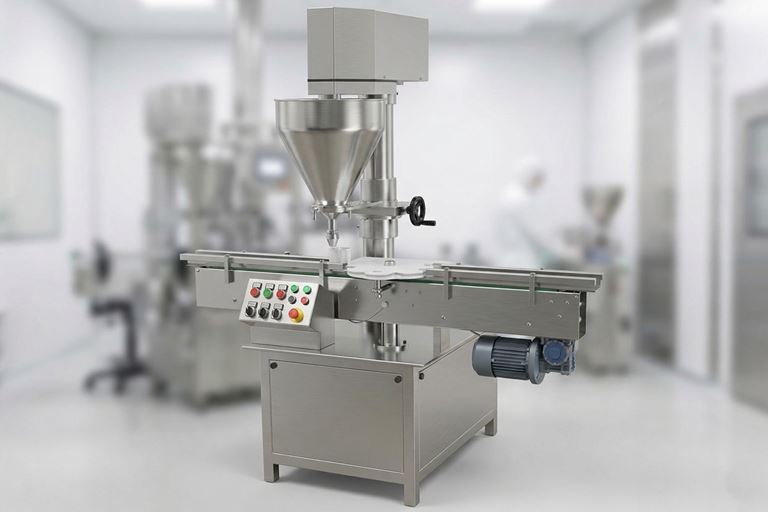

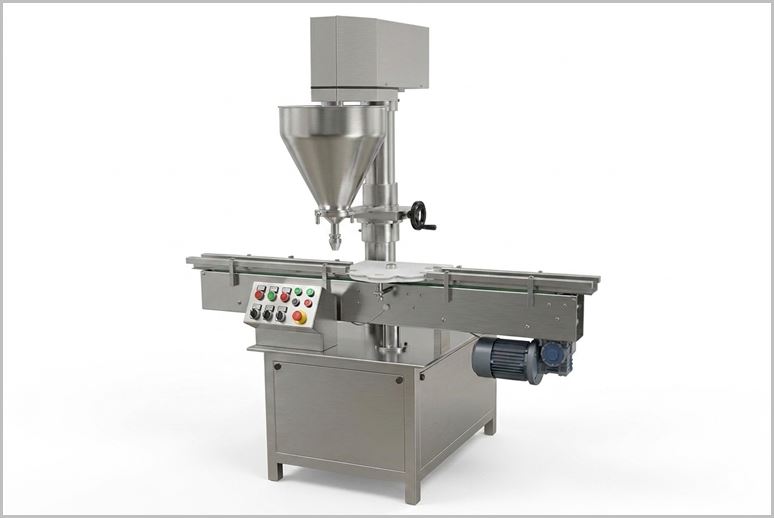

Antibiotic Powder Filling Machine are specialized pharmaceutical equipment designed for the precise, sterile filling of powdered antibiotics into vials or bottles. These machines are essential in pharmaceutical manufacturing because many antibiotics are unstable in liquid form and must be produced as dry powders for reconstitution later. The process involves high-speed dosing, often using auger or vacuum-pressure systems, while maintaining aseptic conditions to prevent contamination. Challenges include managing fine dust from potent ingredients, ensuring operator safety, and minimizing product loss—especially for cost-sensitive drugs.
These machines typically operate in cleanroom Class B environments, comply with GMP standards, and integrate features like 100% in-process control (IPC) for weighing and filling accuracy.
Antibiotic Powder Filling Machine Video
Key Features and Technologies
-
Filling Methods: Auger dosing for precision, vacuum-pressure for handling difficult powders, or screw-based systems for high-speed sterile filling.
-
Containment and Safety: Equipped with laminar flow hoods, RABS, or isolators to protect operators from toxic dust and maintain sterility.
-
Additional Functions: Often include stoppering, capping, and check-weighing in a single unit; some support dual-powder dosing in one vial.
-
Customization: Modular designs allow for space-saving in cleanrooms, with options for voltage and integration with secondary packaging lines.
Application of Powder Filling Machine
There are different types of powder filling machines available for each individual operation. Auger Filler is having below industry wise applications:
Pharmaceutical Industry: Dry Syrup Powder and API Powder.
Herbal & Nutraceutical Industry: Moringa powder, leaves powder, protein powder, baking soda etc.
Food Industry: Milk powder, spices, pulses, fine flour, powdered sugar, coffee powder, tea powder, salt, food color, food flavor, curry powder, flour, cornstarch, baking mix, cocoa, glazing compound, psyllium husk, oregano, instant coffee, coffee beans, salt, bread, sugar, sand etc.
Cosmetic Industry: Face pack powder, talcum powder, translucent powders, color cosmetics, hair care powder etc.
Chemical Industry: Ceramic powder, acid powders, specialty chemicals etc.
Agriculture Industry: Fertilizers, Insecticides, NPK granules, powdered organics, inorganic fertilizers etc.
Salient Features of Auger Powder Filling Machine
-
Standard as well as Optional Servo Driven Filling Head.
-
Multiple auger head system as per customer requirements.
-
“No Bottle – No Fill” System.
-
All contact parts made of SS316 and Nylon/HDPE material with easy removal system for Cleaning.
-
Machine construction in SS304 material.
-
Filling Accuracy of +/- 3% depending upon powder characteristics and environmental conditions.
-
A.C. Variable Frequency Drive Speed Control
-
Built in Turn Tables with Separate Drive for speed control.
-
IQ/OQ documentation can be provided.
-
PLC system with Graphical User Interface can be offered.
-
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.
Process Operation of Antibiotic Powder Filling Machine
Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.
Design of Auger Filling Machine
-
Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.
-
Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.
-
Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.
-
Structure Body: This is basic structure that supports the entire system.
-
Controls: This is the main mechanism to operate the machine parameters.
Technical Specification of Powder Filler Machine
| Models | AI-APF 1 | AI-APF 2 | AI-APF 3 |
| Production Output | Up to 30 bottles/minute | Up to 60 bottles/minute | Up to 90 bottles/minute |
| Fill Volume | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System |
| Container Size | Custom made as per required container size | Custom made as per required container size | Custom made as per required container size |
| Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder |
| Power Load | 2 H. P. | 3 H. P. | 4.5 H. P. |
| Overall Dimension | 1810 mm (L) x 905 mm (W) x 1900 mm approx. | 2300 mm (L) x 905 mm (W) x 1900 mm approx. | 3000 mm (L) x 905 mm (W) x 1900 mm approx. |
| Conveyor Height | 850 – 950 mm adjustable | 850 – 950 mm adjustable | 850 – 950 mm adjustable |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
