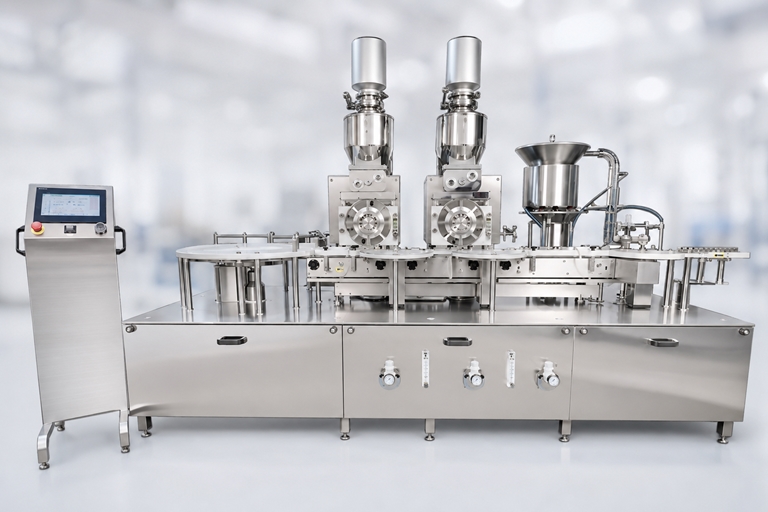

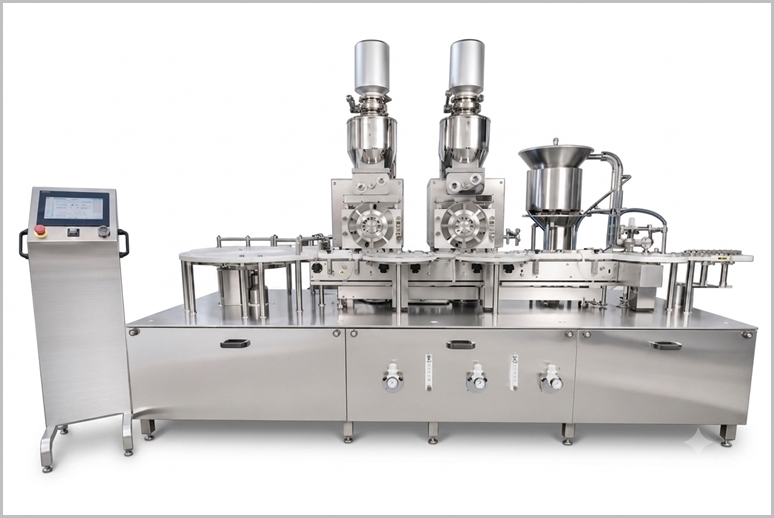

Aseptic Powder Filling Machine

Q: What is the filling accuracy and production speed of the Aseptic Powder Filling Machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density uniformity, and environmental conditions). Single Head (APF 12S) : Up to 100 vials/minute Double Head (APF 12D) : Up to 200 vials/minute Fill range is typically 50mg to 10 grams (up to 1500mg in single dosing with change parts).

Description

Aseptic Powder Filling Machine is specialized equipment used primarily in the pharmaceutical, biotechnology, and sometimes food industries to fill sterile powders into containers like vials, syringes, cartridges, or bottles under strictly controlled, sterile conditions. The “aseptic” aspect ensures the process prevents microbial contamination, maintaining product sterility throughout filling, which is critical for injectable drugs or sensitive formulations. These machines often integrate with isolators, RABS, or cleanrooms to achieve this. Unlike standard filling machines, aseptic powder fillers handle dry powders delicately to avoid segregation, ensure precise micro-dosing, and support high-speed production while minimizing waste and enabling easy validation. They address challenges like cold-chain limitations by enabling room-temperature stable formulations.

Preparation: Containers are washed, sterilized, and depyrogenated.

Filling: Powder is supplied via a hopper with agitators for uniform flow. Dosing mechanisms dispense exact amounts into containers in a barrier system.

Closing: Stoppers or caps are applied aseptically.

Inspection: Integrated checks for fill weight, integrity, and particulates.

Output: Sealed, sterile units ready for labeling and distribution.

If you need details on specific models and pricing, let me know!

Salient Features of Aseptic Powder Filling Machine

Compact GMP Model.
Built in Turn Tables with Separate Drive for speed control of infeed and outfeed of vials.
Powder wheel rotation and vial transportation through servo motors.
Various safety features including Clutch system for Vial Breakage.
All contact parts made of SS316L materials with easy removal system for Autoclaving / Sterilization.
Filling Accuracy of ± 2% depending upon powder characteristics and environmental conditions.
Tool Less adjustment of Doctor Blade and Wiper Blade saves valuable time and easy for setting.

Built in Rubber Stoppering System,Multiple dosing system with the help of change parts.
Suitable to fill 50mg to 1500mg in single dosing.
Vacuum driven specially designed Powder Wheels.
IQ/OQ Validation documentation can be provided.
PLC system with Graphical User Interface can be offered.
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.
Sampling and Rejection system can be provided on demand.

Working Principle of Aseptic Powder Filling Machine

The sterilized powder is stored in powder hopper is agitated by pair of mechanical agitators for maintaining consistency and uniform bulk density. The powder wheel having twelve ports which rotates at pre-determined speed below the powder hopper with practically no clearance. Powder wheel consist of Piston in each port and behind the powder wheel vacuum plate is provided. There is no clearance between powder wheel and vacuum plate due to back spring pressure. Precise volume of powder is sucked into the port of powder wheel during vacuum; according to the piston length different fill size can be achieved. The excess powder is doctored off by a doctor blade. Doctor blades can be adjusted from outside also without removing powder hopper. When powder wheel indexes further and remain in the port due to the vacuum till it reaches just vertically above the container. The time dose of Compressed air (Nitrogen Gas), sterilized low pressure air sequentially flushes out powder from the port of powder wheel in to the container one by one.

The filled containers are immediately separated on the conveyor by vial separator and moves further for stoppering operation.

The sterilized, siliconised, rubber stoppers stored in the vibrator bowl moves to vibratory bowl and stacked vertically in the rubber stopper chute. The container is hold firmly between pair or timing belt to pickup rubber stopper from exit end of the chute. Further container is passed between two pressing roller for tight fit fixing of rubber stoppers.

Technical Specification of Aseptic Powder Filling Machine

Models	APF 12S	APF 12D
Production Output	Up to 100 vials/minute	Up to 200 vials/minute
Fill Volume	50 mg. to 10grams	50 mg. to 10 grams
Vial Size	5ml to 250ml	5ml to 250ml
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder
Power Load	3.5 H. P.	4.5 H. P.
Overall Dimension	2600mm (L) X 1100mm (W) X 1800mm (H) approx.	3000mm (L) X 1100mm (W) X 1800mm (H) approx.
Net Weight	500 kgs. approx.	700 kgs. approx.
Gross Weight	750 kgs. approx.	950 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of Aseptic Powder Filling Machine

Superior Sterility Assurance

High Filling Accuracy and Precision

High-Speed Production with Automation

Versatility and Regulatory Compliance

Reduced Contamination and Product Stability

Key Features of Aseptic Powder Filling Machine

Precision Dosing: Technologies like Fill2Weight or vacuum-pressure dosing achieve ±1% accuracy, even for hygroscopic or low-density powders.

Sterility Assurance: Operates in isolated environments with steam sterilization, dry heat depyrogenation, and minimal operator intervention.

Versatility: Handles various container types and formats; supports both low-volume lab/pilot scales and high-speed lines.

Efficiency: Reduces energy needs compared to lyophilization; includes auto-calibration, gentle agitation to prevent clumping, and easy cleaning.

Compliance: Meets GMP standards, with options for containment to handle potent compounds.

FAQ for Aseptic Powder Filling Machine

What is an Aseptic Powder Filling Machine and how does it work?

An Aseptic Powder Filling Machine is specialized pharmaceutical equipment designed to fill sterile powders into vials under strictly controlled sterile conditions to prevent microbial contamination. It uses a vacuum-driven powder wheel with pistons and ports: sterilized powder is agitated in a hopper for uniform density, precisely dosed via vacuum suction, excess is doctored off, and then flushed into vials with compressed/nitrogen air. Filled vials proceed immediately to rubber stoppering, maintaining sterility throughout.

What is the filling accuracy and production speed of the Aseptic Powder Filling Machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density uniformity, and environmental conditions).

Single Head (APF 12S): Up to 100 vials/minute
Double Head (APF 12D): Up to 200 vials/minute Fill range is typically 50mg to 10 grams (up to 1500mg in single dosing with change parts).

What types of products and containers can the Aseptic Powder Filling Machine handle?

It is ideal for sterile injectable powders used in the Pharmaceutical and Biotech industries. It handles vial sizes from 5ml to 250ml. The system is particularly suited for sensitive formulations requiring high sterility, such as antibiotics and other injectable dry powders.

What are the key features of the Aseptic Powder Filling Machine?

cGMP compact model with SS316L contact parts (easily removable for autoclaving/sterilization).
Servo-driven powder wheel and vial transport, built-in turn tables, and clutch system for vial breakage protection.
Tool-less doctor & wiper blade adjustment, built-in rubber stoppering, and multiple dosing via change parts.
Options include inbuilt Laminar Air Flow (Class 100), PLC with HMI, IQ/OQ documentation, and sampling/rejection systems.

What are the main advantages of using an Aseptic Powder Filling Machine?

Ensures superior sterility and product safety for injectable powders.
High precision with minimal wastage and consistent dosing.
Hygienic design with easy cleaning, quick changeover, and low maintenance.
High-speed automated operation suitable for large-scale production.
Supports regulatory compliance with validation documentation and integration into complete sterile filling lines.
