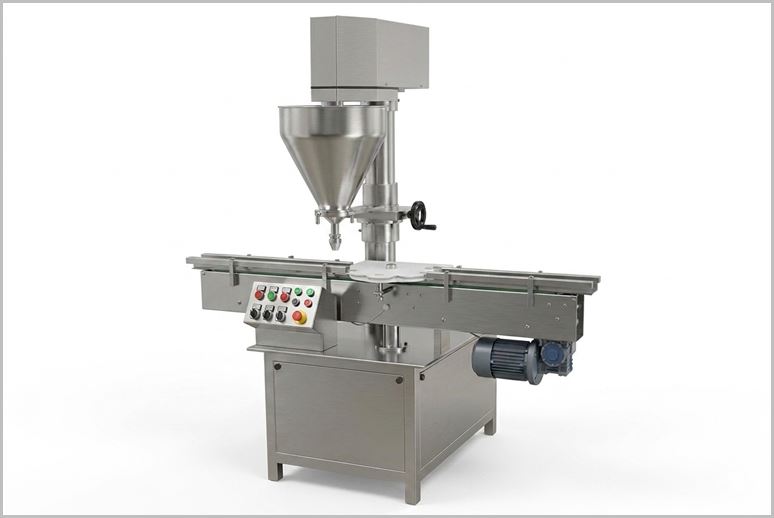

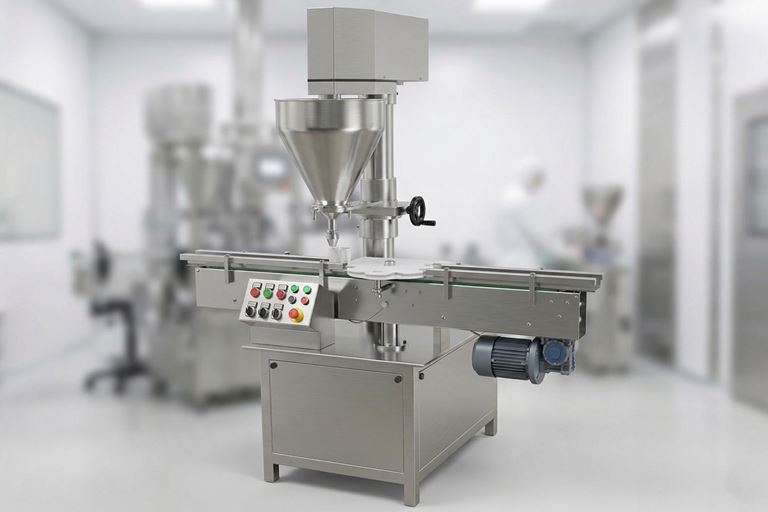

Single Auger Powder Filling Machine

Q: What is the filling accuracy and production speed of the Single Auger Powder Filling Machine?

The machine offers high filling accuracy of ±1.5% to ±2% (or ±2–3% depending on powder type, bulk density uniformity, and controlled humidity). Production Output : Up to 30 bottles per minute (depends on powder characteristics). Fill Volume : 5g to 500g (depending on bottle opening and bulk density). It uses PLC-based control for consistent performance.

Q: What are the key features of the Single Auger Powder Filling Machine?

Compact GMP model with all contact parts in SS316 . “No Bottle – No Fill” system and PLC-based control. Linear design with inbuilt conveyor belt and heavy steel structure to minimize vibration. Easy change parts (star wheel, back guide, funnel & auger). Optional servo-driven head, variable speed control, and inbuilt Laminar Air Flow for sterile filling.

Description

Single Auger Powder Filling Machine is a specialized piece of equipment used in packaging lines to dispense precise volumes of dry powders, granules, or similar materials into containers such as bottles, jars, or bags. It operates on the principle of positive displacement, where a rotating auger scoops and transfers a measured amount of product from a hopper into the container. The “single” designation refers to it having one auger head, making it suitable for mid-volume production runs, typically up to 30–60 containers per minute, depending on the product and setup. Single Auger Powder Filling Machine are widely used in industries like pharmaceuticals (e.g., dry syrups), food (e.g., spices, milk powder), chemicals, and cosmetics. Unlike volumetric fillers, auger machines excel with non-free-flowing, fluffy, sticky, or aerated powders, ensuring high accuracy by compressing the product during transfer.

Feeding: Empty containers are fed onto a conveyor or turntable and indexed to the filling station.

Sensing and Filling: A sensor detects the container, triggering a magnetic clutch or servo motor to rotate the auger at a controlled speed and duration. The auger draws powder from the hopper and deposits it directly into the container.

Dispensing: Once filled, the container moves to the next station. Dust extraction systems minimize mess.

Adjustments: No-tool changeovers for different container sizes via pneumatic separators; auger size and rotation time are calibrated for product density.

This process ensures dust-free, repeatable fills without over- or under-dosing.

If you need details on specific models and pricing, let me know!

Salient Features of Single Auger Powder Filling Machine

Compact GMP Model.
All contact parts made from Stainless Steel 316 materials.
Machine completely enclosed heavy steel structure body to avoid any vibration.
Filling powder in bulk with high filing accuracy of ±2 to 3%, depending upon powder type and bulk density of powder.

“No Bottle – No Filling” system.
Production output up to 30 bottles per minute, PLC based control mechanism.
Linear design with inbuilt conveyor belt.
Machine manufacture from high quality Stainless Steel for long life.

Working Principle of Single Auger Powder Filling Machine

The incoming dry bottle is fed through the Infeed Turn Table with suitably guided on the moving conveyor belt at the required speed for feeding. There is filling head mounted on machine top plate, when bottle reaches to the first filling station, it will be held by the bottle holder. Immediately it will be sensed by the bottle sensor as soon as it gets signals from sensor magnetic clutch starts to rotate which is mounted on auger shaft. It will fill the desired amount of powder to the bottle through auger, where rotation time is previously saved in PLC control. After filling bottle moves further for next operation. The main advantage of this machine is star wheel pick up system of bottle is directly connected with Auger rotation, so till bottle get filled with powder as per set value.

Duly filled bottles delivered on outfeed conveyor for capping operation.

Technical Specification of Single Auger Powder Filling Machine

Model	ADF – 40
Design	Linear
Movement	Left to right
Concept	PLC based panel
Production Output	Up to 30 bottles/minute (depends upon powder characteristics)
Filling Volume	50 grams to 500 grams (Fill range depending upon Bottle Opening & Bulk density of powder)
Filling Accuracy	±1.5% to ±2% depending upon consisting and uniformity of bulk density of powder under Controlled level of Humidity
Hopper Capacity	30 Liters approx.
No. of Auger	1 No.
No. of Funnel	1 No.
Bottle size	5 gms to 100 gms
Machine Contact parts	Stainless Steel
Change parts	· Star wheel & back guide · Funnel & Auger
Power Supply	0.5 H.P.
Electrical Characteristics	440 Volts, Three phase, 50 hertz
Overall Dimension	2400mm (L) X 900mm (W) X 1700mm (H) approx. (Length include main machine + Turn Table)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of Single Auger Powder Filling Machine

High Filling Accuracy and Consistency

Ideal for Lower to Medium Production Volumes

Versatile Powder and Container Handling

Hygienic Design and Easy Maintenance

Key Features of Single Auger Powder Filling Machine

Servo or Clutch-Driven Filling Head — Standard or optional servo-driven auger for precise volumetric control and consistent dosing.

“No Bottle – No Fill” System — Ensures filling only occurs when a container is present, preventing wastage and spillage.

High-Quality Material Construction:
- All product contact parts made of SS316 and Nylon/HDPE with easy removal for cleaning.
- Machine frame constructed from SS304 for durability and corrosion resistance.

Excellent Filling Accuracy — Achieves ±2–3% accuracy (depending on powder characteristics, bulk density uniformity, and environmental conditions).

Variable Speed Control — A.C. Variable Frequency Drive for adjustable speed and smooth operation.

Built-in Turn Table — With separate drive for reliable container handling and synchronization.

Robust Drive Assembly — Includes motor, transmission, and magnetic clutch mechanism for reliable start/stop operation.

Advanced Control Options — PLC system with HMI (optional) and IQ/OQ documentation support.

Sterile Operation Option — Inbuilt Laminar Air Flow for Class 100 sterile filling.

Easy Maintenance & Quick Changeover — Tool-less/quick-release auger and funnel design for fast cleaning and tooling change.

FAQ for Single Auger Powder Filling Machine

What is a Single Auger Powder Filling Machine and how does it work?

A Single Auger Powder Filling Machine is a versatile packaging equipment that dispenses precise volumes of dry powders, granules, or similar materials into bottles, jars, or bags using a rotating helical auger screw. Empty containers are fed via conveyor or turntable. A sensor detects the container, triggering a magnetic clutch or servo motor to rotate the auger, which draws powder from the hopper and deposits it into the container. It excels with non-free-flowing, sticky, or aerated powders and features a “No Bottle – No Fill” system for dust-free, repeatable fills.

What is the filling accuracy and production speed of the Single Auger Powder Filling Machine?

The machine offers high filling accuracy of ±1.5% to ±2% (or ±2–3% depending on powder type, bulk density uniformity, and controlled humidity).

Production Output: Up to 30 bottles per minute (depends on powder characteristics).
Fill Volume: 5g to 500g (depending on bottle opening and bulk density). It uses PLC-based control for consistent performance.

What types of powders and containers can the Single Auger Powder Filling Machine handle?

It is ideal for free-flowing as well as non-free-flowing, fluffy, sticky, or aerated powders and granules. Common applications include dry syrups, spices, milk powder, chemicals, and cosmetics. The machine handles bottles from 5g to 100g (with custom change parts for star wheel, funnel, and auger) and is widely used in Pharmaceutical, Food, Cosmetic, Chemical, Agriculture, Herbal, and Nutraceutical industries.

What are the key features of the Single Auger Powder Filling Machine?

Compact GMP model with all contact parts in SS316.
“No Bottle – No Fill” system and PLC-based control.
Linear design with inbuilt conveyor belt and heavy steel structure to minimize vibration.
Easy change parts (star wheel, back guide, funnel & auger).
Optional servo-driven head, variable speed control, and inbuilt Laminar Air Flow for sterile filling.

What are the main advantages of using a Single Auger Powder Filling Machine?

Excellent accuracy with minimal wastage for challenging powders.
Suitable for mid to lower production volumes at an economical cost.
Hygienic SS316 contact parts, easy cleaning, and quick changeover.
Reliable automation with low maintenance and dust-free operation.
Versatile across multiple industries and easy integration with capping lines.
