Preparation Vessel

Description

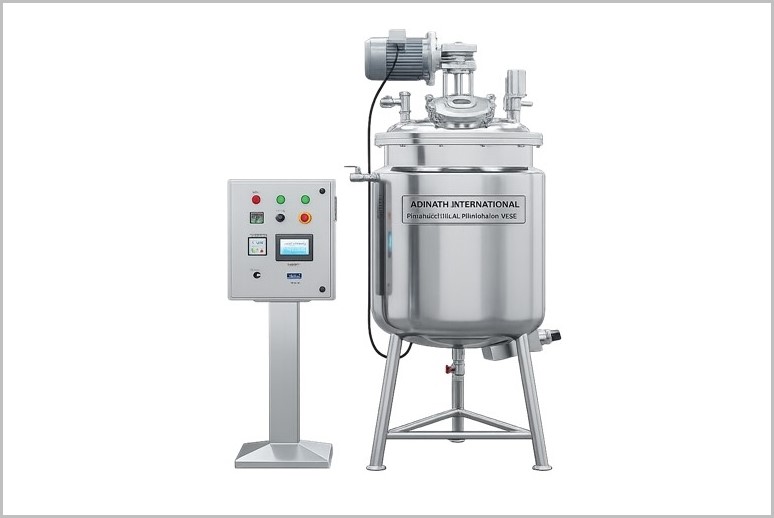

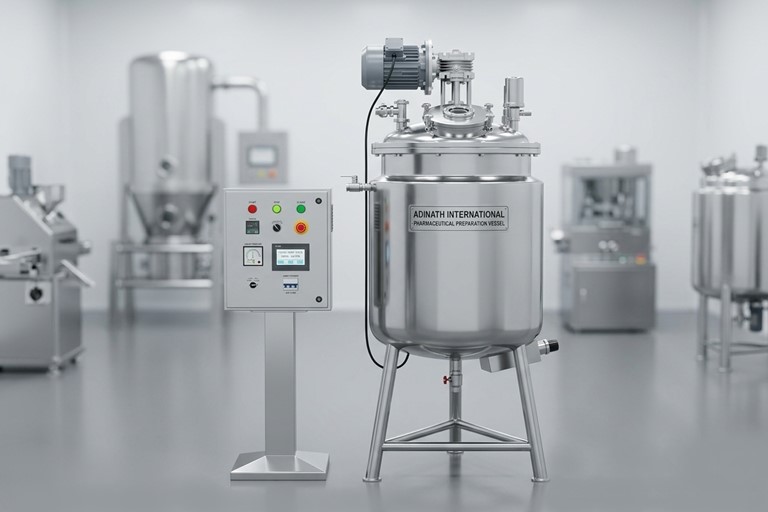

Preparation Vessel also known as a paste preparation vessel, solution preparation vessel, or injectable preparation vessel is a specialized stainless-steel container used in pharmaceutical, biotechnology, and chemical industries for mixing, heating, and preparing formulations such as pastes, slurries, suspensions, buffers, or injectable liquids. These vessels ensure compliance with Good Manufacturing Practices (GMP) and are designed for sterile or non-sterile processes, often featuring agitation systems, heating/cooling jackets, and load cells for precise control.

If you need details on specific models and pricing, let me know!

Salient Features of Preparation Vessel

Double-jacketed design for efficient heating and cooling using steam or hot water, with thermal insulation options.
Equipped with pitch-type stirrer, magnetic mixer, or high-shear magnetic emulsifier. Variable speed (adjustable via VFD) with top-mounted orientation for homogeneous mixing.
Vessel, fittings, and stirrer designed for Clean-In-Place (CIP) and Sterilize-In-Place (SIP) operations for easy cleaning and sterilization.

Zero dead-leg aseptic flush bottom outlet diaphragm valve, zero dead-leg sampling valve (CIP/SIP able), nitrogen purging, and custom nozzles/connections.
Volume monitoring via load cells, optional pH and conductivity sensors, standard control panel or PLC with HMI (21 CFR Part 11 compliant).
Available from 5 liters to 20,000 liters, suitable for lab-scale, pilot, and large production batches.

Types of Preparation Vessel

Sterile Manufacturing Vessel

Sterile Preparation Vessel

Injectable Preparation Vessel

Jacketed Mixing Vessel

WFI Storage Tank

Oral Liquid Preparation Vessel

Applications of Preparation Vessel

Advantages of Preparation Vessel

Precise Temperature Control

Enhanced Process Efficiency

Versatile Material Compatibility

Easy Cleaning & Low Maintenance

Broad Industry Applicability

Key Features of Preparation Vessel

Construction: Typically made of SS 316L with SS 304 jackets for temperature control. Dish-end (dome-shaped) tops and bottoms minimize dead zones and facilitate cleaning.

Mixing Mechanisms: High-speed stirrers, inline homogenizers, or high-shear mixers for uniform blending.

Heating/Cooling: Jacketed design allows steam, hot water, or chilled circulation to maintain temperatures.

Additional Features: Load cells for weighing, nitrogen purging for sterility, pressure/vacuum capabilities, and self-washing systems.

Capacities: Range from 50L to 300L or more, depending on batch size.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

FAQ for Preparation Vessel

What is a Preparation Vessel?

A Preparation Vessel, also known as a Solution Preparation Vessel, Paste Preparation Vessel, or Sterile Preparation Vessel, is a specialized stainless-steel vessel used in pharmaceutical, biotechnology, and chemical industries. It is designed for mixing, heating, cooling, and preparing formulations such as pastes, slurries, suspensions, buffers, and injectable liquids under controlled conditions while complying with cGMP standards.

How does the Preparation Vessel work?

The vessel uses a double-jacketed design for efficient heating and cooling with steam, hot water, or chilled fluids. An agitator (pitch-type stirrer, magnetic mixer, or high-shear emulsifier) ensures homogeneous mixing. Features like CIP/SIP systems, nitrogen purging, and load cells help maintain sterility, precise volume control, and temperature regulation during the preparation process.

What are the key features of the Preparation Vessel?

Double-jacketed construction with thermal insulation for precise temperature control.
SS 316L contact parts and advanced agitation systems (variable speed via VFD).
CIP/SIP compatible with zero dead-leg valves and aseptic design.
Nitrogen purging, load cells for volume monitoring, and optional pH/conductivity sensors.
PLC with HMI (21 CFR Part 11 compliant) and capacities from 5 liters to 20,000 liters.

What are the available capacities and materials?

Preparation Vessels are available in capacities ranging from 5 liters to 20,000 liters, making them suitable for lab-scale, pilot, and large commercial production. They are typically fabricated with SS 316L contact parts and SS 304 jackets for excellent corrosion resistance, hygiene, and durability.

Which industries use the Preparation Vessel?

It is widely used in the Pharmaceutical, Biotechnology, Cosmetic, Chemical, Ayurvedic, and Herbal & Nutraceutical industries for preparing sterile and non-sterile formulations, injectables, pastes, and liquid solutions.
