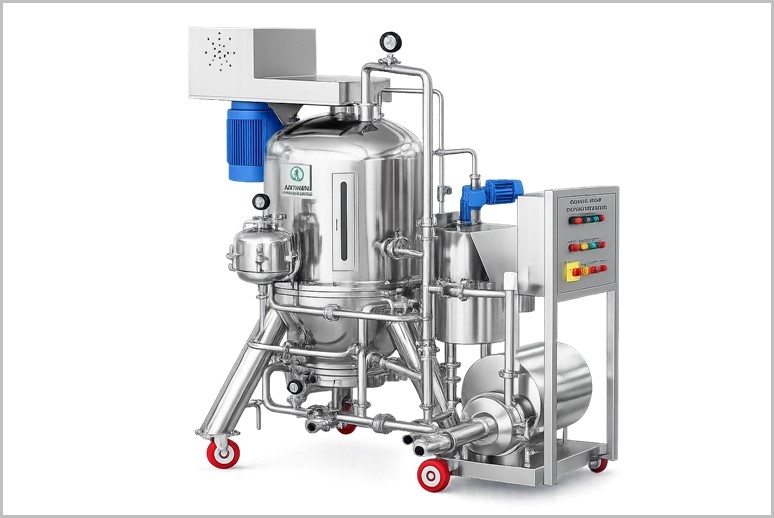

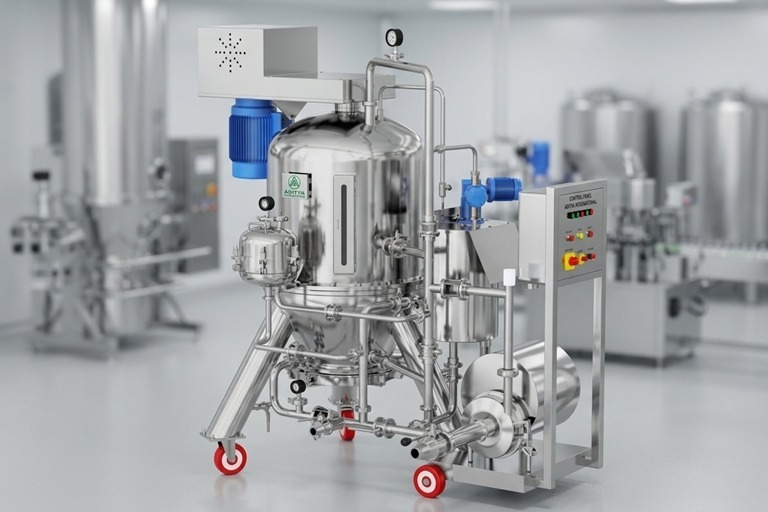

Sterile Preparation Vessel

Sterile preparation vessels are engineered for hygiene, durability, and precision. Common attributes include:

• Materials: Typically constructed from high-grade stainless steel (e.g., SS 316L) for corrosion resistance and smooth surfaces (electropolished to Ra < 0.25 µm for easy cleaning).

• Capacity Range: From small-scale (1–10 liters for R&D or high-value products like vaccines) to large industrial sizes (up to 20,000 liters).

• Jacketed Design: Double or triple jackets for heating/cooling (via steam, hot water, or chilled fluids) and temperature control (e.g., 40–60°C to protect heat-sensitive ingredients).

• Agitation Systems: Magnetic stirrers, paddle blades, or variable-speed agitators for uniform mixing of viscous or dense fluids without introducing contaminants.

• Sterilization Capabilities:
  • SIP (Sterilization-in-Place) using pure steam.
  • CIP (Clean-in-Place) for automated washing.
  • Nitrogen blanketing or sparging to displace oxygen and inhibit microbial growth.

• Filtration Integration: Inline sterile filters (0.22–0.45 micron) to remove particles and microorganisms during transfer.

• Controls and Monitoring: PLC-based panels for pH, temperature, pressure, and dissolved oxygen (DO) monitoring; often placed in Grade B cleanrooms under positive nitrogen pressure.

• Accessories: Flanged tops with silicone gaskets, harvesting ports, sampling valves, and variable frequency drives for stirrer speed.

These vessels are fully enclosed with domed tops and bottoms to minimize dead zones and facilitate drainage, reducing the risk of residue buildup.
