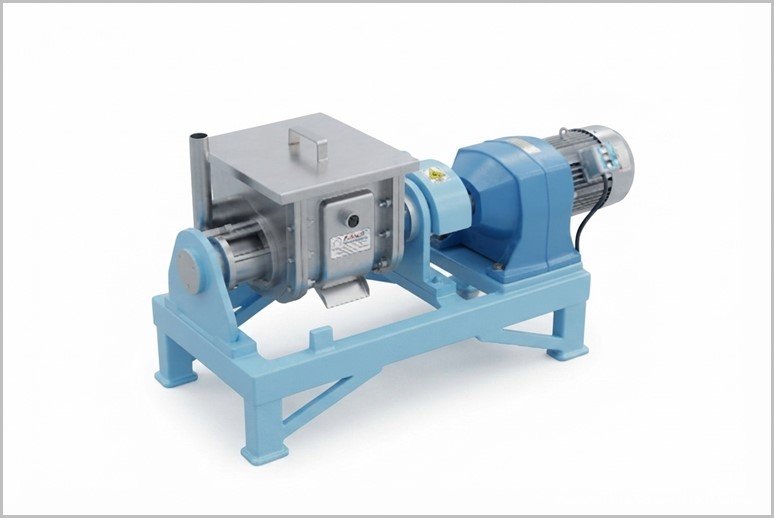

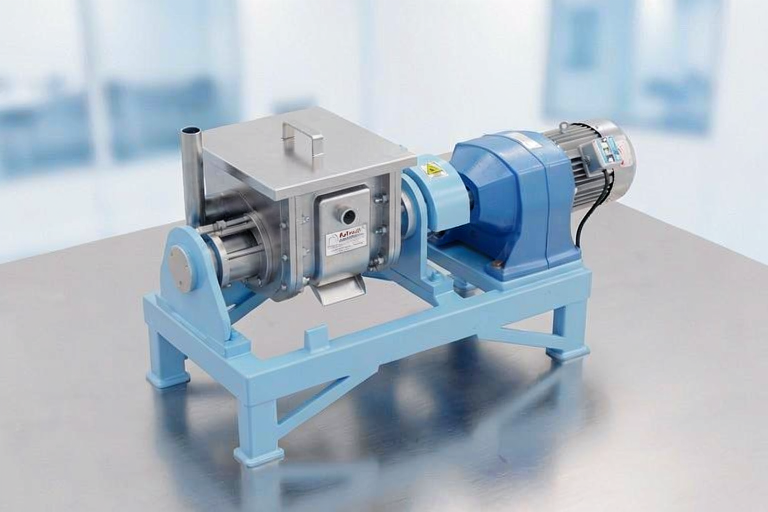

Based on your query, it appears you’re inquiring about Bubble Gum Kneader machines (also known as Sigma Mixers or Kneaders), which are specialized industrial equipment used for mixing and kneading high-viscosity materials like bubble gum base, chewing gum, dough, polymers, and similar substances. Bubble Gum Kneader feature sigma-shaped (Z-blade) mixers for thorough, uniform blending and are available in various capacities, including 5 kg, 10 kg, 20 kg, 50 kg, and 100 kg batch sizes.
Bubble Gum Kneader Video
Key Features
-
Design: Double-arm sigma blades for intensive kneading; jacketed for heating/cooling if needed.
-
Construction: Mild steel (MS) or stainless steel (SS 304/316); food-grade options available.
-
Tilting Mechanism: Manual or hydraulic for models >250 kg (smaller models use mechanical).
-
Power: Varies by capacity.
-
Applications: Bubble gum base mixing, chewing gum production, biscuit dough, soap, rubber solutions, and viscous pastes.
-
Capacity Range: Batch sizes from 5 kg to 100 kg; output up to 5,000 kg/hr depending on model.
-
Voltage: Typically 220V/380V/415V, 3-phase.
-
Dimensions/Weight: Vary by size.
Salient Features of Sigma Mixer Machine
-
Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
-
Stainless Steel polish to matt & mirror finish as per customer’s requirements.
-
Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
-
Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
-
Jacket for heating or cooling application can be offered.
-
Mineral wool insulation with cladding on jacket.
-
Tangential designed ‘Z’ blades offered for uniform mixing.
-
PTFE made shaft sealing provided for food grade compatibility.
-
Minimum gap between trough inner shell & blades removes possibility of sticking product.
-
On demand Spray system, vacuum system
Optional Features/Accessories of Sigma Mixer
-
Liquid Spray System
-
Vacuum System
-
Blades Cooling Arrangement
-
Screw System
-
Automatic Valve Discharge System
Process Operation of Bubble Gum Kneader
In Sigma mixer tangential action of mixing and kneading obtained by ‘Z’ type (SIGMA) shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from one end to another end. Discharge of the finished product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw beside the container.
The mixing action is a combination of bulk movement, stretching, folding, dividing, and recombining of the material. The shearing & tearing action of the material against blades and the side walls causes size reduction of the solids. After the time period required for sterilizing the batch has elapsed, the heating circuit shuts of the pneumatics damper (exhaust) opens and cooling operation commences.
In the tangential design, the blades rotate in the trough meeting tangentially. The front blade generally rotates faster than the rear blade usually in the ratio of 3:2. Tangential blades are generally used for material of higher viscosities such as adhesives, rubber compounds, flush colors, dyes, and pigments.
In the overlapping design, the blades overlap above the saddle of the container. Due to the overlapping action, it is necessary that the relative position of the two blades is unchanged, and as a result, both the blades rotate at the same speed. Materials that flow freely or creep down into the blades are mixed using the overlapping blade action. This design offers a faster interchange of material from one blade compartment of the mixer to the other. Overlapping blade action is used for materials of lighter viscosities such as carbon pastes, clay coating, creams, and ointments. The overlapping blade produces a lower kneading and shearing compared to the tangential blade action.
Technical Specification of Sigma Mixer Kneader
| Model | Capacity – Liters | Motor (H.P.) | ||
| Working Capacity approx. | Gross Capacity approx. | General | Heavy Duty | |
| ASM – 5 | 5 Liters | 8 Liters | 1 H.P. | 1.5 H.P. |
| ASM – 10 | 10 Liters | 15 Liters | 1 H.P. | 1.5 H.P. |
| ASM – 20 | 20 Liters | 30 Liters | 1.5 H.P. | 3 H.P. |
| ASM – 50 | 50 Liters | 80 Liters | 5 H.P. | 7.5 H.P. |
| ASM – 75 | 75 Liters | 110 Liters | 7.5 H.P. | 10 H.P. |
| ASM – 100 | 100 Liters | 150 Liters | 10 H.P. | 15 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
