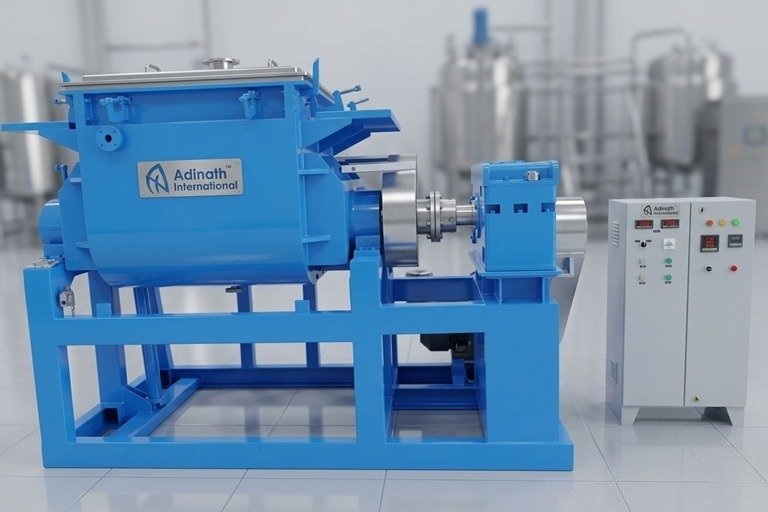

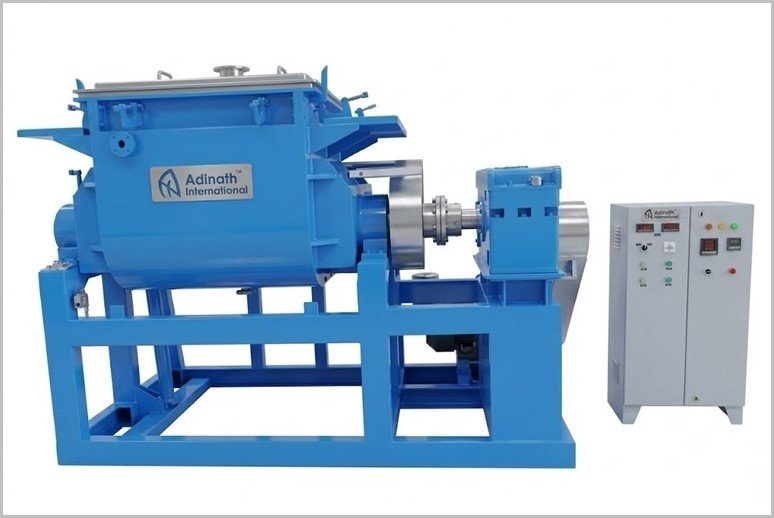

Bubble Gum Sigma Mixer

It excels at mixing high-viscosity, sticky, and dough-like substances such as gum bases for bubble gum and chewing gum. It is also suitable for other confectionery products and high-viscosity materials commonly handled in pharmaceutical, nutraceutical, cosmetic, and chemical industries.

Salient features include construction in Stainless Steel 316/304 or Mild Steel, optional jacket for heating/cooling with mineral wool insulation, tangential Z-shaped blades for uniform mixing, PTFE shaft seals for food-grade compatibility, minimal blade-to-trough gaps to prevent sticking, and manual or hydraulic discharge options. Additional options include spray and vacuum systems.

It uses the tangential action of counter-rotating Z-shaped (sigma) blades that rotate at different speeds (typically 3:2 ratio). This creates intensive shearing, folding, stretching, dividing, and recombining motions for thorough homogenization. Discharge is achieved by tilting the container, bottom valves, or an extrusion screw.

Models range from ASM-50 (50L working capacity) to ASM-3000 (3000L working capacity), with corresponding gross capacities and motor options from 5 HP up to 120 HP (general and heavy-duty variants). Power voltage can be customized to meet customer requirements.

Discharge options include hand-wheel (manual) or hydraulic (automatic) tilting. It can be equipped with a jacket for heating or cooling applications, along with mineral wool insulation and cladding for precise temperature control during processing of viscous gum bases.

It is primarily designed for the confectionery industry (bubble gum and chewing gum production) but is also widely used in Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, Cosmetic, and Chemical industries for high-viscosity mixing applications.

It delivers superior performance for high-viscosity and sticky materials where standard mixers fail, provides energy-efficient thorough dispersion, ensures durable construction for longevity and easy cleaning, and produces consistent, high-quality homogenous gum base mixtures.

Available in Stainless Steel 316 or 304 (with matt or mirror polish as required) for food-grade hygiene and corrosion resistance, or Mild Steel with red oxide primer and epoxy paint finish. PTFE seals ensure compatibility, and options like hard chrome plating enhance durability.

Yes. It can be customized with different blade designs (tangential or overlapping), jacketed heating/cooling, vacuum or spray systems, VFD for speed control, custom capacities, material finishes, and cGMP-compliant features to suit specific production needs.
