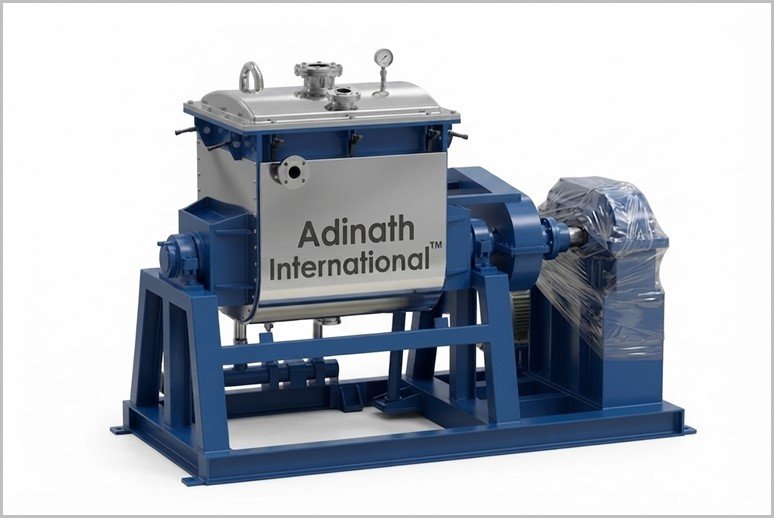

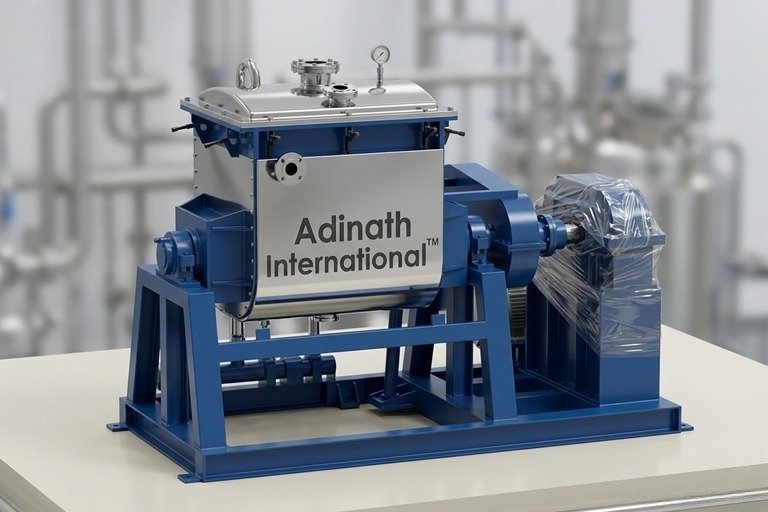

Chemicals Sigma Mixer

It excels at kneading and homogenizing high-viscosity pastes and compounds, including adhesives, sealants, polymers, resins, rubber compounds, pigments, dyes, and other specialty chemicals that standard mixers cannot handle effectively.

Key features include construction in SS 316, SS 304, or Mild Steel with various finishes, tangential Z-shaped blades for uniform mixing, PTFE shaft seals, minimal blade-to-trough gaps to prevent sticking, jacketed heating/cooling with insulation, and options for manual/hydraulic discharge, liquid spray systems, vacuum systems, and more.

It operates using the tangential action of counter-rotating Z-shaped sigma blades that rotate at different speeds (typically 3:2 ratio). This generates intensive shearing, folding, stretching, and recombining motions for thorough homogenization. Discharge is possible via tilting the trough, bottom valves, or extrusion screw.

Models range from ASM-50 (50L working / 80L gross, 5–7.5 HP) to ASM-3000 (3000L working / 3800L gross, 100–120 HP). Working capacity is typically 40-65% of gross volume, with general and heavy-duty motor options. Power voltage is customizable.

Discharge options include hand-wheel (manual) or hydraulic (automatic) tilting, bottom valves, screw extrusion, or automatic valve systems. Jacketed designs with mineral wool insulation support heating or cooling, and blades cooling arrangements are also available.

It is primarily used in the Chemical Industry for high-viscosity mixing. It is also suitable for Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, and Cosmetic industries.

It provides superior performance for high-viscosity and fibrous materials, energy-efficient thorough dispersion and homogenization, durable construction for longevity and easy maintenance, consistent high-quality output, and options like vacuum or explosion-proof designs for hazardous chemicals.

Available in Stainless Steel 316/304 (matt or mirror polish) or Mild Steel (epoxy painted). Optional features include liquid spray systems, vacuum systems, blades cooling, screw discharge, automatic valves, and explosion-proof configurations for safe handling of hazardous chemicals.

Yes. Customization options include blade designs (tangential/overlapping), jacketed heating/cooling, vacuum or spray systems, VFD speed control, different discharge methods, custom capacities, and material finishes to meet specific chemical processing and safety requirements (including cGMP standards where applicable).
