Kneading Machine Concrete Mixer Rubber Tyre

Description

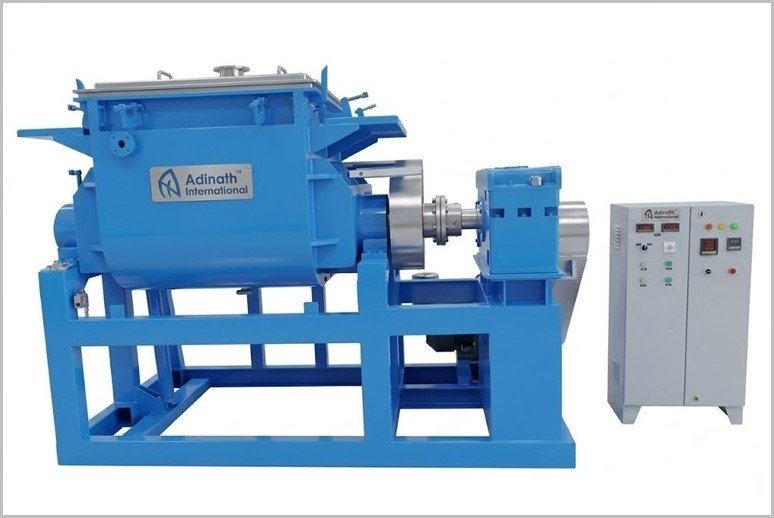

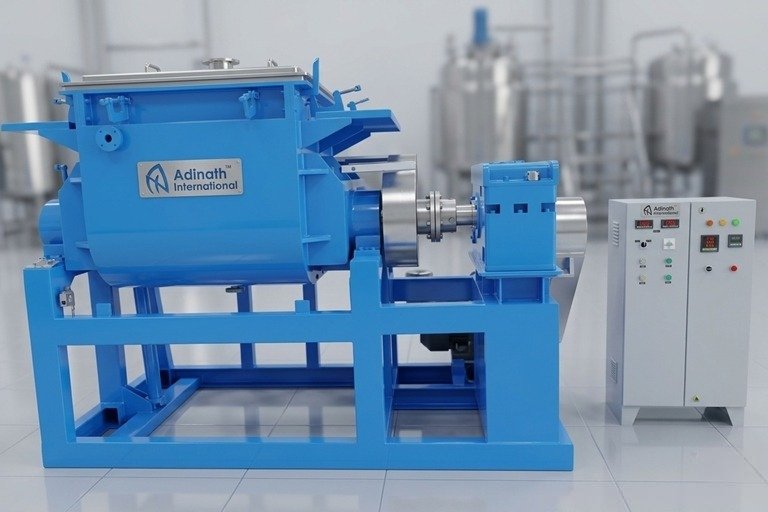

The phrase Kneading Machine Concrete Mixer Rubber Tyre refers to a versatile industrial mixing equipment commonly known as a Sigma Mixer, Z-Blade Kneader, or Double-Arm Sigma Kneader. This heavy-duty machine is specially designed for thoroughly kneading and mixing high-viscosity, semi-solid, sticky, and elastic-plastic materials across multiple industries. The unique product listing title likely comes from Indian manufacturers highlighting its wide applications in concrete-related putties, rubber compounding, and type manufacturing.

A Sigma Mixer features two counter-rotating Z-shaped (sigma) blades mounted in a U or W-shaped trough. These blades operate at different speeds, creating intense shearing, folding, and kneading action. This powerful mechanical process ensures uniform dispersion and homogeneous blending even in the toughest materials, making it far superior to conventional mixers for viscous compounds.

Salient Features of Kneading Machine Concrete Mixer Rubber Tyre

Available in SS 316, SS 304, and Mild Steel construction options.
Stainless steel surfaces finished in matte or mirror polish according to client preference.
Mild steel receives one layer of red oxide primer plus two layers of epoxy coating.
Product discharge available via manual hand-wheel mechanism or automatic hydraulic system.
Optional heating or cooling jacket provided for process temperature control.

Jacket fitted with mineral wool insulation and protective outer cladding.
Tangential ‘Z’-shaped blades engineered for consistent, homogeneous blending.
PTFE shaft seals incorporated to meet food-grade hygiene standards.
Ultra-close clearance between trough wall and blades prevents material adherence.
Spray system and vacuum system available on request.

Working Principle of Kneading Machine Concrete Mixer Rubber Tyre

In a Sigma mixer, kneading and mixing arise from the precise counter-rotation of ‘Z’-shaped (SIGMA) blades that turn at unequal speeds. This motion continuously shifts material from one side of the trough to the other. Finished product leaves the machine by tilting the trough, opening bottom valves, or using a side-mounted extrusion screw.

The overall process combines bulk flow, stretching, folding, splitting, and rejoining of the batch. Intense shear and tearing between the blades and the trough walls also reduce solid particle size. Once the required sterilization interval ends, the heating circuit switches off, the pneumatic exhaust damper opens, and cooling begins.

Tangential blade arrangement The two blades meet tangentially inside the trough. The front blade normally runs faster than the rear blade, typically at a 3:2 speed ratio. This configuration is preferred for highly viscous products such as adhesives, rubber compounds, flush colors, dyes, and pigments.

Overlapping blade arrangement The blades overlap above the central saddle of the container and must maintain a fixed relative position, so both rotate at identical speeds. This layout suits free-flowing or gently descending materials and enables rapid transfer between the two blade compartments. Overlapping action is chosen for lower-viscosity products such as carbon pastes, clay coatings, creams, and ointments; it produces less intense kneading and shearing than the tangential design.

Technical Specification of Kneading Machine Concrete Mixer Rubber Tyre

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Benefits of Kneading Machine Concrete Mixer Rubber Tyre

Superior mixing uniformity and product consistency

Reduced mixing time and higher productivity

Better incorporation of fillers and additives

Improved final product quality and performance

Easy maintenance and long service life

Versatility across rubber, construction, adhesive, and chemical industries

Key Features of Kneading Machine Concrete Mixer Rubber Tyre

U-shaped trough with two counter-rotating Z-shaped (sigma) blades for efficient shearing and uniform mixing.

Available in capacities from lab-scale to large industrial.

Options for heating/cooling jackets, hydraulic tilting, vacuum operation, and stainless/mild steel construction.

FAQ for Grinding Wheel Preparation Sigma Mixer

What is a Kneading Machine Concrete Mixer Rubber Tyre?

It is a heavy-duty industrial Sigma Mixer (also called a Z-blade kneader or double-arm sigma kneader) designed for thorough mixing and kneading of high-viscosity, sticky, and elastic-plastic materials. The name highlights its use in concrete-related putties, rubber compounding, and tyre manufacturing.

How does this kneading machine work?

Two counter-rotating Z-shaped (sigma) blades turn at different speeds inside a U- or W-shaped trough. The action creates continuous shearing, folding, stretching, and kneading that transfers material from one side to the other and ensures uniform dispersion even in tough compounds.

What materials of construction are available?

The machine is built in Stainless Steel 316, Stainless Steel 304, or Mild Steel. Stainless-steel surfaces can be finished in matte or mirror polish, while mild-steel versions receive one coat of red-oxide primer and two coats of epoxy paint.

What capacity range is offered?

Models span from ASM-50 (approx. 50 liters working / 80 liters gross) to ASM-3000 (approx. 3000 liters working / 3800 liters gross). Motor power is available in general or heavy-duty ratings, and voltage can be matched to local supply.

What discharge options are available?

Finished product can be unloaded by tilting the trough, opening bottom valves, or using a side-mounted extrusion screw. Discharge may be manual (hand-wheel) or automatic (hydraulic), with optional automatic valve systems.

Can temperature be controlled during mixing?

Yes. Optional heating or cooling jackets regulate process temperature. The jackets are insulated with mineral wool and protected by outer cladding; blade-cooling arrangements can also be added.

What is the difference between tangential and overlapping blade designs?

Tangential blades meet at the trough edges and usually rotate at a 3:2 speed ratio, delivering high shear ideal for viscous materials such as rubber compounds and adhesives. Overlapping blades rotate at the same speed, suit lower-viscosity products, and provide faster material interchange with milder kneading.

What special design features help with sticky or abrasive materials?

Tangential Z-blades ensure homogeneous blending, PTFE shaft seals maintain food-grade hygiene, ultra-close clearances between blades and trough wall prevent sticking, and robust construction handles abrasive or elastic compounds.

Which industries and applications is this machine suited for?

It is widely used for rubber compounding and tyre production, concrete-related putties, pharmaceuticals, nutraceuticals, cosmetics, chemicals, herbal/Ayurvedic products, and biotech formulations that require intensive kneading of high-viscosity pastes.

What optional accessories can be added?

Available options include a liquid spray system, vacuum system, blade-cooling arrangement, extrusion-screw discharge, automatic valve discharge system, and custom heating/cooling jackets.
