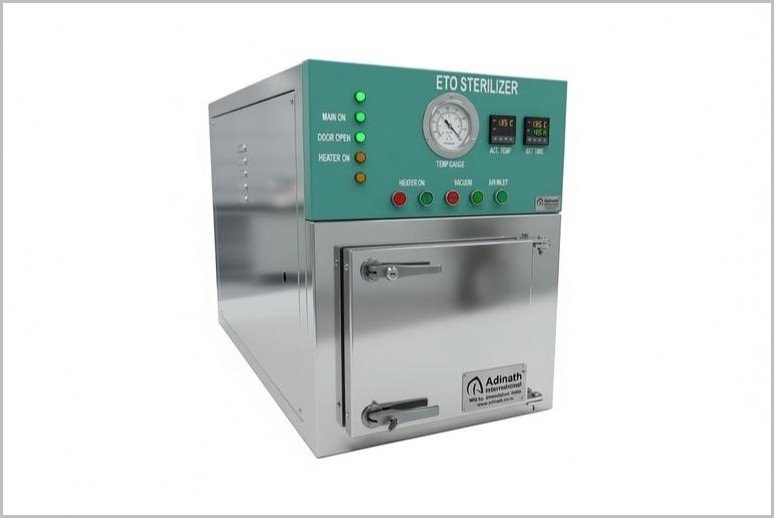

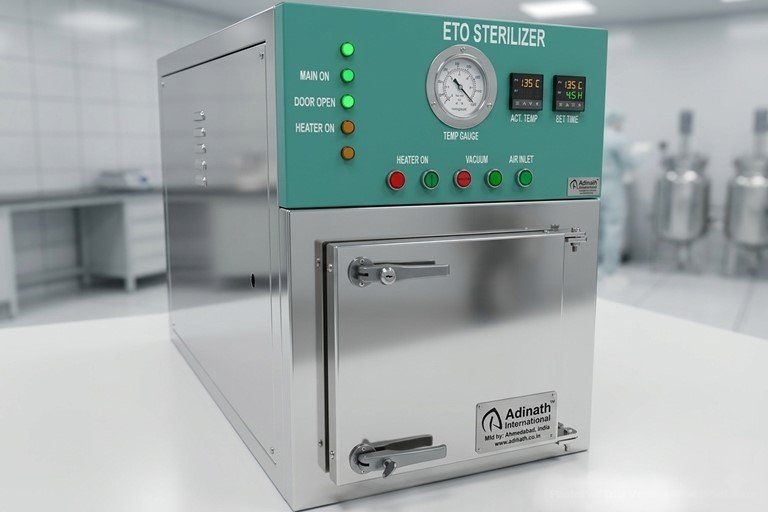

Medical ETO Sterilizer

Description

A Medical ETO Sterilizer, also known as an Ethylene Oxide Sterilizer, is a highly specialized sterilization system used across healthcare and medical device industries. It employs ethylene oxide (ETO) gas to achieve complete sterilization of delicate, heat-sensitive, or moisture-sensitive instruments and materials that cannot withstand traditional high-temperature methods.

Ethylene oxide sterilization is a low-temperature gas sterilization process that effectively eliminates bacteria, viruses, fungi, and even highly resistant bacterial spores. ETO is a colorless, flammable gas with powerful alkylating properties. It penetrates deep into complex materials, disrupting the DNA and proteins of microorganisms, ensuring thorough sterilization without leaving harmful residues when properly aerated.

This method is particularly valuable because it operates at low temperatures (typically 30–60°C) and does not require moisture, making it ideal for sensitive items. Unlike steam autoclaves or dry heat sterilizers, ETO sterilizers preserve the integrity of plastics, electronics, optics, rubber, and multi-layered packaging.

Salient Features of Medical ETO Sterilizer

Comprehensive cGMP validation packages (IQ, OQ, DQ) are available as an optional add-on to streamline factory qualification.
Simplified operator interfaces ensure intuitive command over complex sterilization protocols with minimal specialized training.
Delivers complete sterilization and degassing cycles averaging approximately 8 hours, balancing throughput efficiency with safety.
Built with a flexible, modular chamber framework adaptable to diverse facility layouts.
Comprehensive capacity range available from 0.5 m³ to 40 m³, catering to both small-batch R&D facilities and high-volume industrial production plants.
Complete hands-off cycle management governed by a sophisticated programmable logic controller for maximum precision and repeatability.

Operator-guided functionality utilizing heavy-duty, pneumatically actuated ball valves for tactile process control.
All product-wetted and internal chamber components are constructed from high-grade AISI 304 or 316 stainless steel for optimal corrosion resistance and effortless sanitation.
Engineered to effectively sterilize single-use medical consumables and hospital supplies—including infusion sets, hypodermic syringes, surgical packs, catheters, and urinary drainage bags—without heat degradation.
Employs low-temperature Ethylene Oxide chemistry to drastically lower microbial populations while safeguarding the structural integrity and extending the operational shelf life of delicate polymer goods.
Dual-purpose versatility extending to the agricultural and food processing sectors, efficiently eliminating microbial contamination in packaged cereals, dried fruits, and aromatic spices.

Working Principle of Medical ETO Sterilizer

Core Technology & Distinctive Advantages

Ethylene Oxide (ETO) sterilization serves as an indispensable alternative to traditional thermal autoclaves by utilizing a low-temperature (approx. 50°C), moisture-free environment. This ambient-to-mild thermal profile safeguards heat-sensitive and expensive medical assets from thermal degradation.

Key performance benefits include:

Superior Material Penetration: The gas effortlessly diffuses through complex lumina, multi-layered packaging, and intricate medical devices where steam cannot reach.
Preservation of Delicate Instrumentation: Ideal for high-value and fragile apparatuses—including cardiac catheters, coronary stents, intraocular lenses (IOLs), flexible and rigid endoscopes, and precision surgical blades.
Extended Accessory Lifespan: Gentle chemical kinetics prevent the warping or dulling typical of steam autoclaves, significantly increasing the reuse cycles of compatible surgical accessories and disposable tools.

Available Equipment Models & Control Variants

As an established Indian manufacturer, our portfolio encompasses two distinct configurations designed to suit diverse operational budgets and facility requirements:

Semi-Automatic ETO Sterilizers
- Control Architecture: Equipped with conventional analog push-buttons and robust electromechanical switches on the main control console.
- Operational Flow: Ideal for facilities seeking straightforward, hands-on operator control and reliable, cost-effective processing without complex software interfaces.

Fully Automatic ETO Sterilizers
- Control Architecture: Advanced Programmable Logic Controller (PLC) system paired with an intuitive touchscreen Human-Machine Interface (HMI).
- Operational Flow: Delivers hands-free batch management, pre-programmed recipes, real-time parameter tracking, and automated cycle verification directly from the display panel.

Technical Specification of Medical ETO Sterilizer

Model	AETOS – 2.6	AETOS – 4.5	AETOS – 8
Working Capacity in Cu. Ft.	2.6	4.5	8
Working Volume	70 Liters	125 Liters	200 Liters
Chamber Size	12” (W) x 12” (H) x 32”	12” (W) x 12” (H) x 54” (D) OR 15” (W) x 15” (H) x 36” (D)	20” (W) x 18” (H) x 38” (D) OR 16” (W) x 16” (H) x 54” (D)
Sterilant Gas	40 grams cartridge	100 grams cartridge	170 grams cartridge
Sterilization Cycle	Warm & Cold Cycles are possible.	Warm & Cold Cycles are possible.	Warm & Cold Cycles are possible.
Aeration	In-built aeration facility provided.	In-built aeration facility provided.	In-built aeration facility provided.
Utility	Compressed Air (100 psig)	Compressed Air (100 psig)	Compressed Air (100 psig)
Power Supply	1 K.W.	2 K.W.	2.5 K.W.
Power Voltage	220 volts, Single Phase, 50 Hertz	220 volts, Single Phase, 50 Hertz	220 volts, Single Phase, 50 Hertz

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sterilization Equipment

Industrial ETO Sterilizer

Horizontal Autoclave

Dry Heat Sterilizer

Cath Lab Ethylene Oxide Gas Sterilizer

Steam Sterilizer

Bung Washer cum Processor

Sterilization and Depyrogenation Tunnel

Pure Steam Generator

Applications of Sterilization Equipment

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Benefits of Medical ETO Sterilizer

Completely neutralizes deep-seated microbial DNA without exposing sensitive medical electronics to destructive steam or moisture.

Operates at ambient or low temperatures, preventing the thermal melting or warping of delicate polymer-based surgical instruments.

Easily permeates complex multi-lumen tubing and dense packaging barriers that traditional autoclave steam cannot reliably reach.

Extends the functional lifespan of costly endoscopes and implantable devices by eliminating corrosive oxidation and high-heat stress.

Advanced chamber aeration cycles systematically reduce chemical byproducts to ensure absolute patient safety upon immediate clinical deployment.

Safety, Regulations, and Best Practices of Medical ETO Sterilizer

Because ethylene oxide is a toxic and potentially carcinogenic gas, reputable manufacturers of medical ETO sterilizers incorporate advanced safety features such as:

Automated leak detection systems

Efficient aeration cycles to remove residual ETO

Negative pressure chambers and proper ventilation

Real-time monitoring of gas concentration, temperature, and humidity

Facilities must comply with strict international standards including ISO 11135, FDA guidelines, and EU MDR requirements. Trained personnel follow detailed protocols for cycle validation, biological indicators, and chemical indicators to ensure every load meets rigorous sterility requirements.

FAQ for Medical ETO Sterilizer

What makes a Medical ETO Sterilizer suitable for heat- and moisture-sensitive medical devices?

It operates at low temperatures (typically 30–60°C, often around 50°C) in a moisture-free or controlled-humidity environment using ethylene oxide gas. This prevents thermal degradation or warping of plastics, electronics, optics, rubber, catheters, endoscopes, intraocular lenses, and other delicate items that cannot tolerate steam autoclaves or dry heat.

How does ethylene oxide gas achieve sterilization, and what microorganisms does it eliminate?

ETO is a colorless gas with strong alkylating properties. It penetrates materials and packaging, disrupting the DNA and proteins of microorganisms. It effectively kills bacteria, viruses, fungi, and highly resistant bacterial spores, delivering thorough sterilization when followed by proper aeration.

What capacity ranges and chamber options are available for Medical ETO Sterilizers?

Capacities range from small units (e.g., 0.5 m³) up to large industrial sizes (40 m³). Specific models include AETOS-2.6 (≈70 liters / 2.6 cu. ft.), AETOS-4.5 (≈125 liters / 4.5 cu. ft.), and AETOS-8 (≈200 liters / 8 cu. ft.), with modular stainless-steel chambers that can be adapted to different facility layouts.

What are the differences between semi-automatic and fully automatic Medical ETO Sterilizers?

Semi-automatic models use analog push-buttons and electromechanical switches for straightforward operator control. Fully automatic versions feature PLC control with a touchscreen HMI, pre-programmed recipes, real-time parameter monitoring, and hands-free cycle management for higher precision and repeatability.

How long does a typical sterilization and aeration cycle take?

Complete sterilization plus degassing/aeration cycles average around 8 hours (or longer depending on load and parameters). Cycles include preconditioning/humidification, EO gas exposure (often 4–8 hours), and residual gas removal via vacuum and air flushing (several additional hours), with both warm and cold cycle options available.

Which materials and products can safely be sterilized in a Medical ETO Sterilizer?

It is ideal for single-use medical consumables such as infusion sets, hypodermic syringes, surgical packs, catheters, urinary drainage bags, gloves, complex tubing, multi-layered packaging, and porous materials. It is also compatible with most plastics, metals, composites, and certain packaged food or agricultural items.

What construction and material standards are used in these sterilizers?

Product-wetted and internal chamber components are made from high-grade AISI 304 or 316 stainless steel for corrosion resistance and easy sanitation. Chambers are modular, pressure/vacuum-rated, and designed for cGMP compliance, with optional IQ/OQ/DQ validation packages.

Why is aeration built into Medical ETO Sterilizers, and how is residual gas handled?

Aeration is essential to safely remove toxic residual ethylene oxide from both the chamber and the sterilized items. Units include in-built aeration facilities, vacuum systems, air introduction, negative-pressure design, and exhaust/abatement features to meet safety and environmental requirements.

What safety features and regulatory standards apply to Medical ETO Sterilizers?

Key safety elements include automated leak detection, real-time monitoring of gas concentration/temperature/humidity, efficient aeration, proper ventilation, and negative-pressure chambers. Facilities must follow standards such as ISO 11135, FDA guidelines, and EU MDR, using biological and chemical indicators for cycle validation.

In which industries and applications are Medical ETO Sterilizers commonly used?

They serve pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, cosmetic, and chemical industries, as well as hospitals and medical-device manufacturing. They are especially valuable for heat-sensitive hospital supplies, complex medical devices, and even some packaged cereals, dried fruits, or spices in related sectors.
