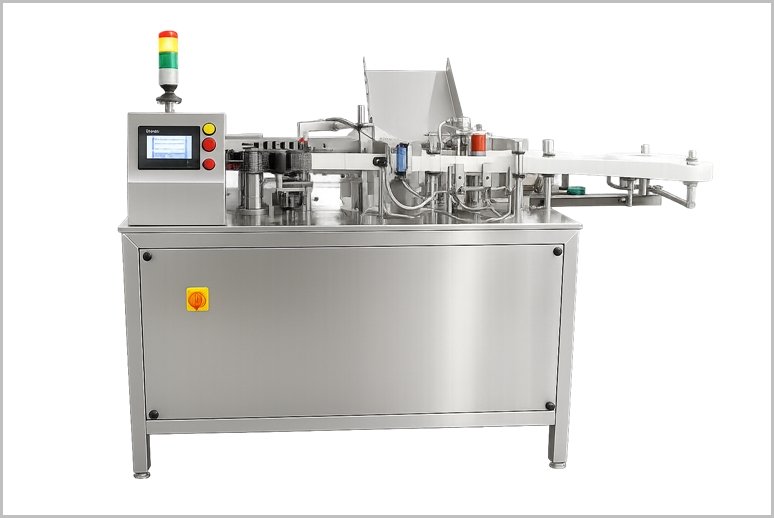

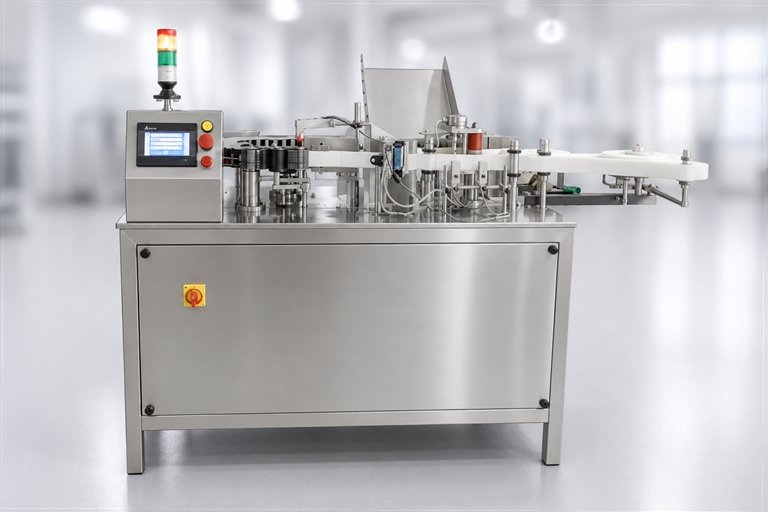

Ampoule Sticker Labeling Machine

Q: What are the available models and their production capacities?

The machine is available in three models: AASL-120 : Up to 120 ampoules per minute AASL-300 : Up to 300 ampoules per minute AASL-600 : Up to 600 ampoules per minute These options cater to different production scales, from medium to high-volume pharmaceutical manufacturing.

Q: What ampoule sizes can the machine handle?

It supports ampoules with: Diameter : 10mm to 18mm Height : 50mm to 105mm It is also suitable for other similar cylindrical containers. Label sizes range from 20–50mm in length and 15–60mm in width.

Q: What industries commonly use the Ampoule Sticker Labeling Machine?

It is primarily used in the pharmaceutical industry for injectables, but also finds applications in: Nutraceuticals Biotech Herbal/Ayurvedic Cosmetics Chemical industries (for similar cylindrical containers)

Description

The Ampoule Sticker Labeling Machine is a highly specialized and efficient piece of industrial equipment designed to meet the demanding needs of the pharmaceutical industry. This advanced machine applies self-adhesive stickers with exceptional accuracy on small glass ampoules, vials, syringes, test tubes, and other cylindrical containers commonly used for injectable medicines, eye drops, vaccines, and liquid formulations.

In today’s fast-paced pharmaceutical manufacturing environment, precise product identification is critical. The Ampoule Labeling Machine ensures high-speed application of labels containing essential information such as batch numbers, manufacturing dates, expiration dates, dosage strength, and branding elements. By maintaining strict compliance with GMP (Good Manufacturing Practice) standards, these machines help manufacturers uphold product safety, traceability, and regulatory requirements.

Salient Features of Ampoule Sticker Labeling Machine

Compact GMP model.
Option of hopper infeed individual operation or through wire mesh conveyor for auto feeding operation.
Missing Label Sensor can be offered on demand.
Camera based Vision System for Print Check and Barcode Check can be offered on demand.
Three models ranging production output 120 per minute, 300 per minute and 600 per minute.
Acrylic top cover provided for clear view of washing during running of the machine.
Printing device can be incorporated for printing batch no., mfg. date etc.

Inbuilt touch screen HMI and PLC on control panel.
Machine body made from high quality Stainless Steel.
Secondary Pressing unit.
“No Ampoule – No Label” system.
Imported Gear Motor for Conveyor & Pressing unit.
Variable A.C. Frequency Drive for speed adjustments.
In built Speed Indicator & Counter.
Imported Sensor for Label & Container.

Working Principle of Ampoule Sticker Labeling Machine

Ampoules are loaded onto infeed hopper of the machine from where it is delivered to the feedworm. Feed worm rotates ampoule and during its operation transfer the ampoules to the Starwheel. The Starhweel is having rollers of same diameter as of ampoule body diameter. Starwheel transfer ampoules to the labeling station where ampoule picks label one by one and further moves towards pressing unit. Pressing Unit equipped with rubber belt for proper placing the labels. During movement of ampoules from pressing belt ampoules get labeled.

Duly labeled ampoules get collected on Outfeed Collection Tray for further operation. In case of printing unit opted labels will be printed with printing device before applying onto ampoules. There are encoders installed which sense gap between two labels and accordingly provide signals to print data onto labels.

Technical Specification of Ampoule Sticker Labeling Machine

Model	AASL-120	AASL-300	AASL-600
Production Rate	Up to 120 Ampoules/Minute	Up to 300 Ampoules/Minute	Up to 600 Ampoules/Minute
Type of Labels	Self-adhesive sticker labels	Self-adhesive sticker labels	Self-adhesive sticker labels
Ampoule Diameter	10mm to 18mm	10mm to 18mm	10mm to 18mm
Ampoule Height	50mm to 105mm	50mm to 105mm	50mm to 105mm
Label Length	20mm to 50mm	20mm to 50mm	20mm to 50mm
Label Width	15mm to 60mm	15mm to 60mm	15mm to 60mm
Label Roll Core Diameter	75 to 76mm	75 to 76mm	75 to 76mm
Power Specification	0.5 H.P.	1 H.P.	2 H.P.
Electrical Characteristics	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension	1150mm (L) x 1100mm (W) x 1100mm (H) approx.	1250mm (L) x 1100mm (W) x 1100mm (H) approx.	1600mm (L) x 1400mm (W) x 1100mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sticker Labeling Machine

Automatic Vial & Bottle Sticker Labeling Machine

Test Tube Sticker Labeling Machine

Single Side Labeling Machine

Automatic Double Side Flat Bottle Sticker Labeling Machine

Automatic Carton or Pouch Labeler

Automatic Horizontal Sticker Labeling Machine

High Speed Sticker Labeling Machine

High Speed Vertical Ampoule Sticker Labeling Machine

Applications of Sticker Labeling Machine

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Ampoule Sticker Labeling Machine

High Speed and Efficiency

Precision and Accuracy

Reduced Breakage and Product Safety

Error Reduction and Quality Control

Regulatory Compliance and Traceability

Key Features of Ampoule Sticker Labeling Machine

Construction and Safety: Typically made from high-quality 304/316 stainless steel for corrosion resistance and easy cleaning to prevent contamination. All moving parts are enclosed in safety guards, with exposed mild steel components powder-coated or nickel-plated for durability.

Control Systems: Equipped with PLC and HMI touchscreens for user-friendly operation, allowing easy adjustments for speed, label length, and product delay. Imported sensors detect label gaps and container presence to prevent errors like missing labels.

Drive and Speed Control: Features variable AC frequency drives for adjustable speeds with constant torque, often paired with imported gear motors for conveyor and pressing units. Built-in speed indicators and counters monitor performance in real-time.

Labeling Precision: Achieves high accuracy with servo motor controls for label dispensing and wrapping. Supports full-wrap or partial labeling, with optional secondary pressing units for secure adhesion.

Feeding and Handling: Includes in-feed trays, screws, or hoppers to load ampoules gently, often with rotary star plates for smooth transfer. Horizontal or vertical orientations are available, with horizontal models preferred for unstable, small-diameter items to enhance stability.

Optional Add-Ons: Inkjet or laser printers for on-label printing, turntables for seamless integration with upstream/downstream lines, and overcurrent/temperature protection for reliability.

FAQ for Ampoule Sticker Labeling Machine

What is an Ampoule Sticker Labeling Machine?

The Ampoule Sticker Labeling Machine is a high-precision, GMP-compliant automatic labeling system designed specifically for applying self-adhesive stickers on small cylindrical containers like glass ampoules, vials, syringes, and test tubes used in injectable medicines, vaccines, eye drops, and liquid formulations. It ensures accurate, high-speed labeling with essential product information such as batch numbers, manufacturing/expiry dates, and dosage details.

What are the available models and their production capacities?

The machine is available in three models:

AASL-120: Up to 120 ampoules per minute
AASL-300: Up to 300 ampoules per minute
AASL-600: Up to 600 ampoules per minute

These options cater to different production scales, from medium to high-volume pharmaceutical manufacturing.

What ampoule sizes can the machine handle?

It supports ampoules with:

Diameter: 10mm to 18mm
Height: 50mm to 105mm

It is also suitable for other similar cylindrical containers. Label sizes range from 20–50mm in length and 15–60mm in width.

How does the Ampoule Sticker Labeling Machine work?

Ampoules are loaded into an infeed hopper and transferred via a feed worm to a starwheel. The starwheel moves them to the labeling station, where each ampoule picks up a self-adhesive label. A secondary pressing unit with a rubber belt ensures secure adhesion. Labeled ampoules are then collected on an outfeed tray. Optional printing units can add variable data (batch no., dates) before application.

What are the key features of this machine?

Compact GMP model with stainless steel construction
“No Ampoule – No Label” system
Inbuilt touch screen HMI and PLC controls
Variable AC frequency drive for speed adjustment
Imported sensors and gear motors
Optional missing label sensor, camera vision system for print/barcode verification, and printing devices
Secondary pressing unit for better label adhesion

Is the machine suitable for high-speed pharmaceutical production?

Yes. With models reaching up to 600 ampoules per minute and features like servo motors, precise sensors, and synchronized feeding/labeling/pressing, it is ideal for fast-paced injectable manufacturing lines while maintaining accuracy and compliance.

What industries commonly use the Ampoule Sticker Labeling Machine?

It is primarily used in the pharmaceutical industry for injectables, but also finds applications in:

Nutraceuticals
Biotech
Herbal/Ayurvedic
Cosmetics
Chemical industries (for similar cylindrical containers)

What safety and compliance features does it offer?

The machine follows strict GMP standards with high-quality stainless steel (often 304/316) construction for easy cleaning and corrosion resistance. It includes safety guards, “No Ampoule – No Label” functionality to prevent errors, and supports optional vision systems for quality control, ensuring regulatory compliance and product traceability.

Can the machine be customized or integrated with other equipment?

Yes. Options include hopper vs. conveyor feeding, printing devices (inkjet, hot foil, etc.), vision inspection systems, and voltage adjustments for different regions. It can be integrated into complete packaging lines with turntables or upstream/downstream equipment.

What are the main advantages of using this labeling machine?

High speed and efficiency with minimal downtime
Precision labeling reduces errors and ensures compliance
Reduced product breakage through gentle handling
User-friendly PLC/HMI controls and easy maintenance
Improved traceability and regulatory adherence for pharmaceutical products
