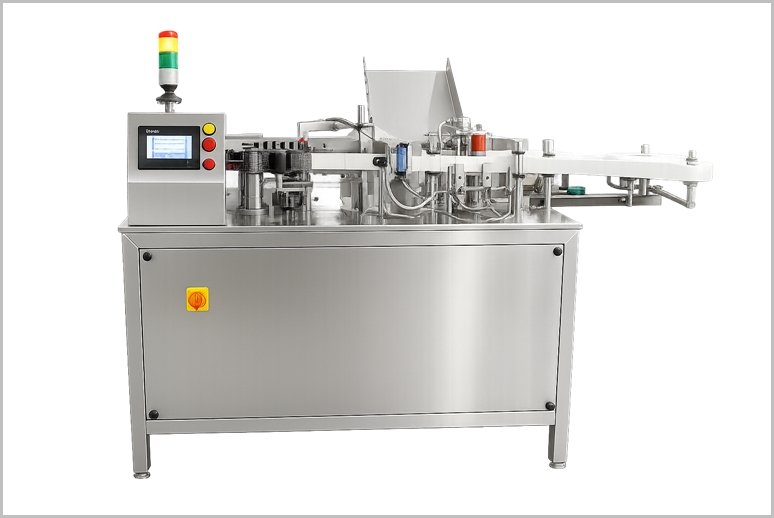

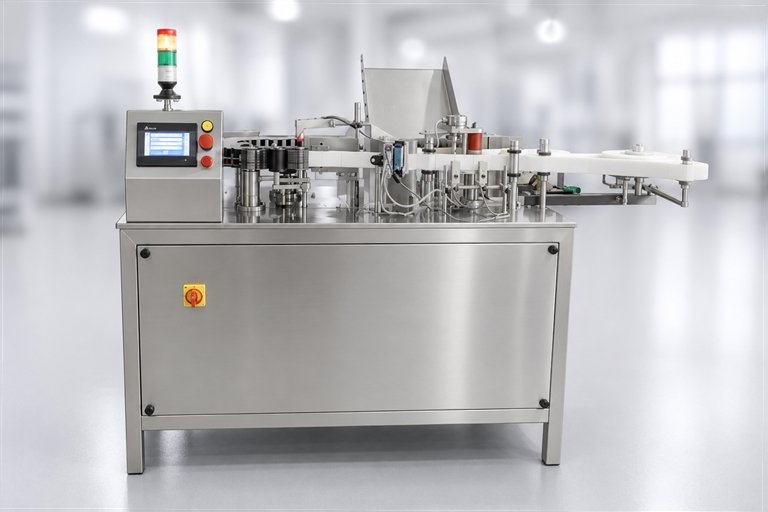

Ampoule Vial Sticker Labeling Plant

Description

An Ampoule Vial Sticker Labeling Plant is a state-of-the-art automated labeling system designed specifically for the pharmaceutical industry. It efficiently applies self-adhesive labels to small-volume containers such as ampoules and vials. These machines play a critical role in modern pharmaceutical manufacturing by ensuring accurate, compliant, and high-speed product identification on glass or plastic containers used for injectable medications, vaccines, and other sterile formulations.

The ampoule vial sticker labeling machine is a specialized production line that automates the entire labeling process for ampoules (single-dose sealed glass containers) and vials (multi-dose containers with rubber stoppers). These compact containers require precise label application due to their small size and curved surfaces. Advanced vial labeling plants integrate servo-driven technology, vision inspection systems, and high-precision sensors to deliver flawless label placement every time.

Modern pharmaceutical labeling equipment handles both ampoules and vials with diameters ranging from 10mm to 30mm. The system feeds containers through a conveyor, aligns them perfectly, applies pressure-sensitive labels, and inspects each unit for quality before discharging them for packaging. This automation significantly reduces manual intervention while maintaining strict GMP (Good Manufacturing Practice) standards.

Salient Features of Ampoule Vial Sticker Labeling Plant

Compact GMP model.
Option of hopper infeed individual operation or through wire mesh conveyor for auto feeding operation.
Missing Label Sensor can be offered on demand.
Camera based Vision System for Print Check and Barcode Check can be offered on demand.
Three models ranging production output 120 per minute, 300 per minute and 600 per minute.
Acrylic top cover provided for clear view of washing during running of the machine.
Printing device can be incorporated for printing batch no., mfg. date etc.

Inbuilt touch screen HMI and PLC on control panel.
Machine body made from high quality Stainless Steel.
Secondary Pressing unit.
“No Ampoule – No Label” system.
Imported Gear Motor for Conveyor & Pressing unit.
Variable A.C. Frequency Drive for speed adjustments.
In built Speed Indicator & Counter.
Imported Sensor for Label & Container.

Working Principle of Ampoule Vial Sticker Labeling Plant

Ampoules are loaded onto infeed hopper of the machine from where it is delivered to the feedworm. Feed worm rotates ampoule and during its operation transfer the ampoules to the Starwheel. The Starhweel is having rollers of same diameter as of ampoule body diameter. Starwheel transfer ampoules to the labeling station where ampoule picks label one by one and further moves towards pressing unit. Pressing Unit equipped with rubber belt for proper placing the labels. During movement of ampoules from pressing belt ampoules get labeled.

Duly labeled ampoules get collected on Outfeed Collection Tray for further operation. In case of printing unit opted labels will be printed with printing device before applying onto ampoules. There are encoders installed which sense gap between two labels and accordingly provide signals to print data onto labels.

Technical Specification of Ampoule Vial Sticker Labeling Plant

Model	AASL-120	AASL-300	AASL-600
Production Rate	Up to 120 Ampoules/Minute	Up to 300 Ampoules/Minute	Up to 600 Ampoules/Minute
Type of Labels	Self-adhesive sticker labels	Self-adhesive sticker labels	Self-adhesive sticker labels
Ampoule Diameter	10mm to 18mm	10mm to 18mm	10mm to 18mm
Ampoule Height	50mm to 105mm	50mm to 105mm	50mm to 105mm
Label Length	20mm to 50mm	20mm to 50mm	20mm to 50mm
Label Width	15mm to 60mm	15mm to 60mm	15mm to 60mm
Label Roll Core Diameter	75 to 76mm	75 to 76mm	75 to 76mm
Power Specification	0.5 H.P.	1 H.P.	2 H.P.
Electrical Characteristics	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder	230 Volts, Single Phase 400/750W Servo Motor with encoder
Overall Dimension	1150mm (L) x 1100mm (W) x 1100mm (H) approx.	1250mm (L) x 1100mm (W) x 1100mm (H) approx.	1600mm (L) x 1400mm (W) x 1100mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sticker Labeling Machine

Automatic Vial & Bottle Sticker Labeling Machine

Test Tube Sticker Labeling Machine

Single Side Labeling Machine

Automatic Double Side Flat Bottle Sticker Labeling Machine

Automatic Carton or Pouch Labeler

Automatic Horizontal Sticker Labeling Machine

High Speed Sticker Labeling Machine

High Speed Vertical Ampoule Sticker Labeling Machine

Applications of Sticker Labeling Machine

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Ampoule Vial Sticker Labeling Plant

Versatility: Adjustable for various sizes and materials (glass, plastic).

Efficiency: User-friendly with no manual label length input; virtually maintenance-free.

Compliance: Meets GMP standards for traceability and sterility.

Customization: Options like online integration, batch printing, or horizontal setups for unstable items.

Key Components of Ampoule Vial Sticker Labeling Plant

A typical labeling plant includes:

In-feed System: Product in-feed tray or screw feeder to handle unstable cylindrical containers in a horizontal or vertical orientation, preventing breakage.

Label Dispensing Unit: Microprocessor-controlled dispenser with sensors for accurate label release, supporting transparent or opaque stickers.

Labeling Mechanism: Rotary star plate or horizontal conveyor for wrapping labels around the container, with servo motors for precision.

Out-feed System: Collection tray or turntable for transferring labeled products to inspection or packing lines.

Control System: PLC and HMI for automation, fault alarms, production counting, and speed synchronization.

Safety Features: Stainless steel construction (304/316 grade) for hygiene, AC drives, and optional vision systems for quality checks.

FAQ for Ampoule Vial Sticker Labeling Plant

What is the primary purpose of an Ampoule Vial Sticker Labeling Plant?

The Ampoule Vial Sticker Labeling Plant is a specialized automated system designed for the precise application of self-adhesive labels on small cylindrical containers like ampoules and vials used in injectable medications, vaccines, and sterile formulations. It ensures high-speed, accurate, and GMP-compliant labeling to support product identification, traceability, and regulatory requirements in pharmaceutical manufacturing.

What feeding options are available for the Ampoule Vial Sticker Labeling Plant?

The machine offers flexible infeed options, including a hopper for individual operation or a wire mesh conveyor for automatic feeding. This adaptability helps handle unstable cylindrical containers gently, minimizing breakage while supporting continuous production flow.

Does the machine support optional printing and inspection features?

Yes. A printing device can be integrated for adding batch numbers, manufacturing dates, and other variable data. Additionally, a missing label sensor and camera-based vision system for print and barcode verification are available on demand for enhanced quality control.

What materials and container types is the labeling plant compatible with?

It is optimized for glass and plastic ampoules/vials with diameters of 10mm to 18mm and heights of 50mm to 105mm. The system works effectively with self-adhesive sticker labels and can handle similar small cylindrical containers across pharmaceutical, nutraceutical, cosmetic, and chemical applications.

How does the secondary pressing unit contribute to labeling quality?

The secondary pressing unit, equipped with a rubber belt and imported gear motor, ensures firm and wrinkle-free application of labels as ampoules move through the system. Combined with the “No Ampoule – No Label” mechanism, it delivers precise, secure label placement every time.

What are the power and electrical requirements for different models?

The plant is available in three models (AASL-120, AASL-300, AASL-600) with power ratings of 0.5 HP, 1 HP, and 2 HP respectively. It operates on 230 Volts single phase with servo motors and encoders. Power voltage can be customized according to customer requirements.

Is the machine suitable for integration into existing production lines?

Absolutely. The Ampoule Vial Sticker Labeling Plant integrates seamlessly with upstream filling/capping machines and downstream inspection/packaging lines. Features like PLC-controlled HMI, variable AC frequency drives, and optional turntables support synchronized, automated workflows.

What safety and hygiene standards does the labeling plant meet?

It is a compact GMP model constructed from high-quality stainless steel (SS 304/316 grade) for superior hygiene and durability. Safety features include acrylic covers for visibility, imported sensors, and optional vision systems, ensuring compliance with pharmaceutical sterility and regulatory standards.

How user-friendly is the control system of the machine?

The machine features an inbuilt touch screen HMI and PLC on the control panel, along with a built-in speed indicator, counter, and variable speed controls. This makes operation intuitive, with easy changeover, low maintenance, and real-time monitoring capabilities.

What are the overall dimensions of the different models?

AASL-120: Approx. 1150mm (L) x 1100mm (W) x 1100mm (H)
AASL-300: Approx. 1250mm (L) x 1100mm (W) x 1100mm (H)
AASL-600: Approx. 1600mm (L) x 1400mm (W) x 1100mm (H)

These compact footprints make the plant suitable for various facility layouts while delivering outputs up to 600 ampoules per minute.
