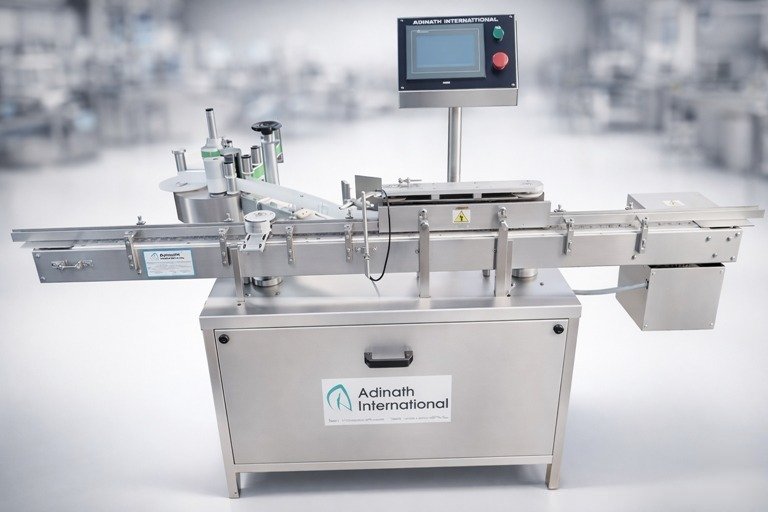

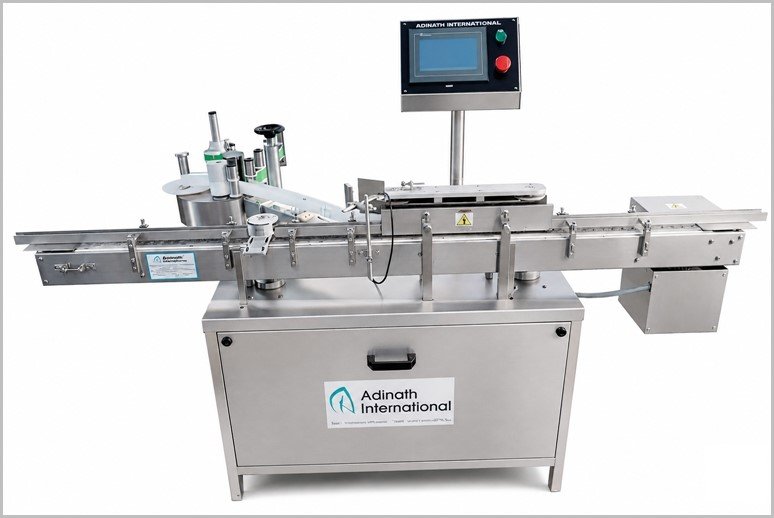

Horizontal Automatic Vial Sticker Labeling Machine

The Horizontal Automatic Vial Sticker Labeling Machine is a specialized industrial packaging equipment designed for applying self-adhesive (sticker) labels onto small, unstable cylindrical containers that cannot stand upright on a traditional conveyor, such as vials, ampoules, test tubes, oral liquid bottles, syringes, lip balms, pens, batteries, or small cosmetic tubes. Unlike vertical labeling machines, it uses a horizontal conveying system to handle delicate or top-heavy items, ensuring stability and preventing breakage during the labeling process.

Horizontal Automatic Vial Sticker Labeling Machine Video

Key Features

• High-Speed Operation: Capable of labeling 100–500 units per minute, significantly boosting production efficiency.

• Precise Labeling: Supports full-wrap, semi-wrap, or partial labeling with ±1mm accuracy; wrinkle-free application using elastic rollers or servo-driven mechanisms.

• Versatile Label Handling: Works with opaque, transparent (“no-look”), barcodes, QR codes, or tamper-evident labels; optional sensors for transparent films.

• Automatic Detection & Safety: Photoelectric sensors detect vials/labels, auto-stop for missing items, alarms for errors, and low bottle-breaking rate via flexible dividers.

• User-Friendly Controls: PLC touchscreen, servo motors, automatic label length detection, and easy changeovers with minimal parts.

• Integration Options: Inline with filling/capping lines; optional printers, vision inspection, reject systems, or safety cabinets.

• Durable Build: Stainless steel (304/316) frame, corrosion-resistant, compact design for cleanrooms.

Working Principle

1. Feeding: Vials are loaded via a hopper, vertical tray, or inclined conveyor. An automatic bottle divider separates and feeds them horizontally onto a roller chain or inclined belt conveyor.

2. Conveying & Alignment: Vials lie on their sides and are stabilized by gravity (inclined belt) or rollers; sensors detect position.

3. Label Dispensing: A servo motor pulls labels from a reel; photoelectric sensors trigger precise release.

4. Application: As the vial rolls forward, the label wraps around via a labeling wheel or belt; pressing rollers ensure smooth, bubble-free adhesion.

5. Output: Labeled vials exit to collection trays or downstream packaging; optional coding/printing occurs simultaneously.

Applications

Primarily in pharmaceuticals, cosmetics (lipsticks, serums), food (small seasoning bottles), and electronics (batteries). It ensures compliance with GMP standards, reduces manual labor, minimizes errors, and handles fragile glass/plastic without damage.

Salient Features of Vial Sticker Labeling Machine

• Compact model with cGMP compliance.

• Suitable for 2ml to 250ml vial sizes.

• Apt for Normal Paper Labels, Transparent Plastic Labels as well as BOPP Labels.

• Optional Printing Device attachment facility.

• Option of adding Missing Label Sensor.

• Option of high end feature such as Camera based Vision System to check printing and barcode.

• No Label Data Input/retrievals require for any Label Size.

• HMI based Touch Screen control panel.

• Different label size working without extra change parts set.

• Speed variation pot inbuilt in control system.

• Synchronized speed of Label Dispensing, Product Feeding and Pressing Device.

• Easy to clean and less maintenance system.

• User Friendly Label Placing Adjustments.

• Online Inkjet and Contact Coding System can be attached.

• Suitable for Partial, Full Wrap Around and Overlap Labeling.

• Variable AC Frequency Drive for speed adjustment.

• Machine cover made from high quality Stainless Steel 304.

Process Operation of Automatic Vial Labeling Machine

The machine features an in-feed table on which to be labeled vials are loaded. These are now transferred to the machine’s conveyor and due to a linear motion mechanism these vials arrive at the labeling station where they are perfectly positioned and even the spacing between them are taken care of.  Owing to a mechanizing rolling spacing device in place, you can achieve perfect spacing between two vials. An electronic product sensor perfectly senses the container and applies the label from a self-adhesive label roll the automatic vial labeling machine comes equipped with.

If you need to have your batch information printing unit addressed as well, you can choose to go for a batch printing device along with the line. Once the sensed container is through the labeling point for wrap-around operation, it has to proceed to the rubber pressing belt with a stationary rubber pad for immaculate label fixing. Here choosing to have an optional camera based vision inspection system can help you inspect the quality of barcode and printing in a much better way. Transferring vials is also a breeze with our automatic vial sticker labeling machine as you can have a customized collection tray in place for the vial collection at the exit.

Technical Specification of Vial Sticker Labeling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
