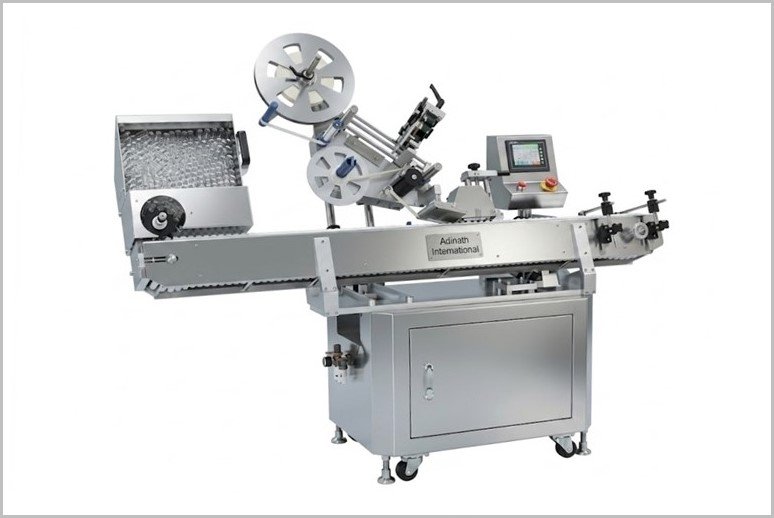

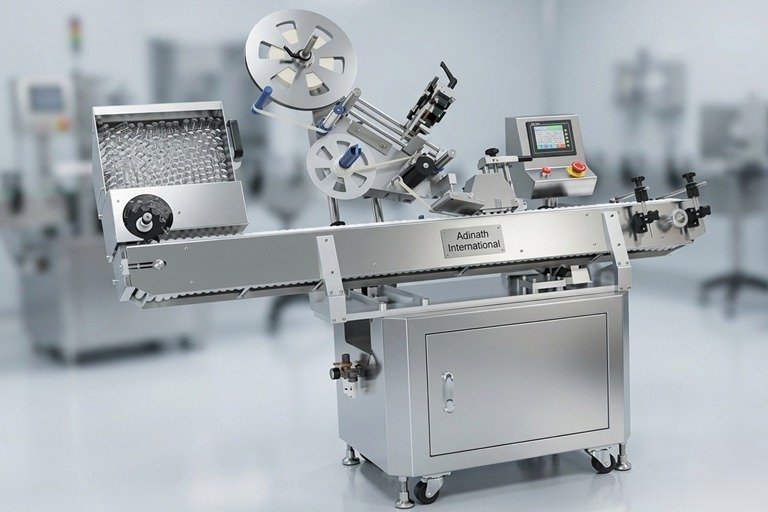

Sticker Labeling Machine For Wrap Around

A Sticker Labeling Machine For Wrap Around also known as a wrap-around labeler or self-adhesive sticker labeling machine is an automated device designed to apply pressure-sensitive labels fully or partially around cylindrical containers like bottles, jars, cans, vials, or tubes. It ensures precise, wrinkle-free labeling at high speeds, making it ideal for industries such as pharmaceuticals, food & beverages, cosmetics, chemicals, and packaging.

Sticker Labeling Machine For Wrap Around Video

Key Features

• Speed: 20–300+ containers per minute (depending on model and container size).

• Container Compatibility: Round bottles, jars, cans; some models handle square/oval with adapters.

• Label Size: Width 10–100 mm; roll diameter up to 300–400 mm.

• Controls: Touchscreen PLC, servo/stepper motors for accuracy (±0.5–1 mm).

• Options: Hot-stamp coding, inkjet printing, vision inspection, tamper-evident seals.

• Build: Stainless steel/aluminum for GMP compliance (common in pharma/food).

Benefits

• Increases branding space (labels cover more surface area).

• High accuracy and consistency; reduces manual labor errors.

• Tool-less changeovers for different container sizes.

• Compliance with regulations (e.g., pharma serialization, batch coding).

How It Works

• Containers are fed via a conveyor belt.

• A sensor detects the product and dispenses a label from a roll.

• The container is rotated while the label wraps around it.

• Optional features include orientation alignment, printing, and inspection systems.

Salient Features of Wrap Around Sticker Labeling Machine

• Compact & elegant model.

• Apt for Normal Paper Labels, Transparent Plastic Labels as well as BOPP Labels.

• One machine can label Bottles, Jars, Tins & other round containers.

• Optional Printing Device attachment facility.

• Option of adding Missing Label Sensor.

• Option of high end feature such as Camera based Vision System to check printing and barcode.

• No Label Data Input/retrievals require for any Label Size.

• HMI based Touch Screen control panel.

• Different label size working without extra change parts set.

• Speed variation pot inbuilt in control system.

• Synchronized speed of Label Dispensing, Product Feeding and Pressing Device.

• Easy to clean and less maintenance system.

• User Friendly Label Placing Adjustments.

• Online Inkjet and Contact Coding System can be attached.

• Suitable for Partial, Full Wrap Around and Overlap Labeling.

• Variable AC Frequency Drive for speed adjustment.

• Machine cover made from high quality Stainless Steel 304.

Process Operation of Labeling Machine

Users manually put bottles on the conveyor of the automatic wrap around sticker labeling machine or alternatively an automatic bottle turn-table can be used for the task. Owing to its programmable logic control the entire process can be controlled. It can automatically sense the bottles and labels and apply the labels on the bottles. Since, the machine comes with a ‘no bottle-no labeling’ system, the machine takes necessary action to stop the operation in case there are no bottles or labels. Optionally Inkjet Printer can be attached onto machine for printing batch no., mfg. date etc. Duly labeled bottles get collected automatically onto exit collection tray of the machine.

For more information related to our single side labeling machine, feel free to get in touch with us.

Technical Specification of Sticker Labeling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
