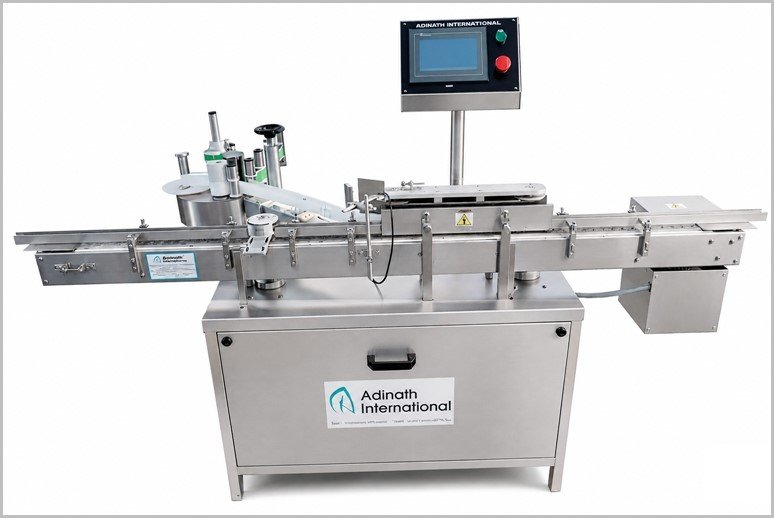

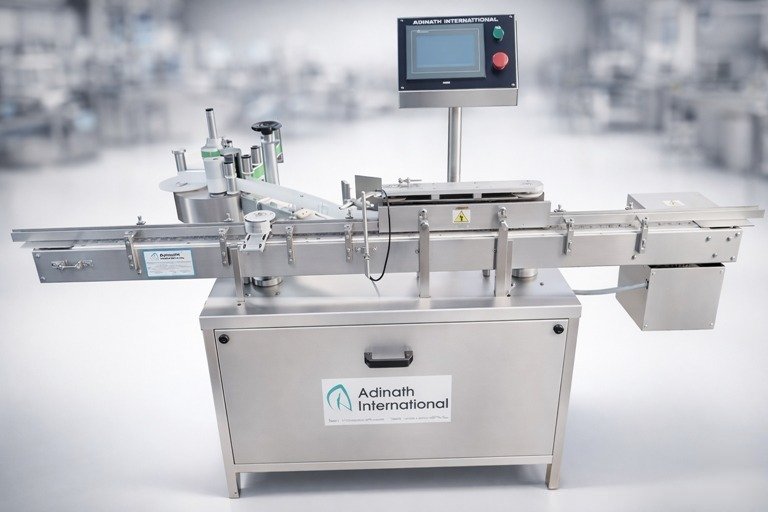

Vial Bottle Sticker Labeling Machine

A Vial Bottle Sticker Labeling Machine is specialized equipment designed primarily for the pharmaceutical, cosmetic, and diagnostic industries to apply self-adhesive stickers (labels) accurately on small cylindrical containers like glass or plastic vials, ampoules, bottles, and similar round objects. These machines ensure precise, wrinkle-free labeling at high speeds, often complying with GMP standards for cleanroom use.

Vial Bottle Sticker Labeling Machine Video

Key Features

• Labeling Types: Full wrap-around, partial wrap, or single-side labeling. Supports opaque, transparent (“no-look”), and BOPP labels.

• Speed: Typically 150–300 vials per minute (up to 500+ in high-end rotary models), depending on vial diameter (usually 10–50 mm) and label size.

• Accuracy: ±0.5–1 mm, with options for vision inspection to check print quality, barcodes, or reject faulty vials.

• Controls: PLC + HMI touchscreen, auto label length detection (no manual input needed), synchronized speed control, and sensors (fiber optic for label gaps).

• Additional Options: Batch coding/printer integration, safety cabinets (acrylic/toughened glass), rejection systems, and in-feed/out-feed trays or turntables for seamless integration with filling/capping lines.

• Variants: Vertical, horizontal, linear, or rotary.

How It Works

1. Feeding: Vials are loaded via tray, turntable, or in-feed screw/conveyor. A roller spacing device or star plate separates them evenly.

2. Detection: Product sensors detect the vial; label gap sensors identify the next label on the roll.

3. Dispensing: Microprocessor-controlled dispenser peels and releases the label.

4. Application: The vial rotates (via wrapping unit or pressing belt) as the label wraps around it. A rubber pressing belt and stationary pad ensure bubble-free adhesion.

5. Output: Labeled vials move to collection tray or next station. Optional camera rejects defects.

Applications

• Pharmaceuticals: Vaccine vials, injectables, eye drops.

• Cosmetics: Essential oil bottles, lip balm tubes.

• Diagnostics: Blood collection tubes, pens.

Salient Features of Vial Bottle Sticker Labeling Machine

• High Production Speed up to 200 containers per minute.

• S.S. 304 Constructions.

• Accurate label placement.

• Micro processor Control unit with LCD Display.

• Full Pharmaceutical security package system.

• Secondary Pressing unit.

• Any kind of printing device can be accommodated with machine.

• Programmable MMI Unit.

• Variable A.C. Frequency Drive for speed adjustment.

• In built Speed Indicator & Counter.

• Stepper Motor with Controller.

• Imported Sensor for Label & Container.

• Finished product can be discharge automatically on packing table or cartooning machine.

• Command in LCD display allow to choose Automatic & Manual operation.

• Hot transfer printing on labels.

• Verification of label & printing presence.

• Imported Gear Motor & Gear Box for Conveyor and Pressing unit.

Process Operation of  Sticker Labeler Machine

Machine conveyor receives container from in-feed turntable, it separated by the feeding roller assembly to maintain the pre determined space between the two containers according to the label length and container diameter. Label is placed on the container immediately when it sensed by the container sensor, it ensures instant adhesive of label’s edge. Then it passes through the pressing unit resulting in precise registration and crease-free application. It can handle container diameter range from 22 mm to 105 mm and label height from 10 mm to 200 mm, change over can be done within few minutes, label height from bottom can be also adjustable for different kind of containers.

Technical Specification of Sticker Labeling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
