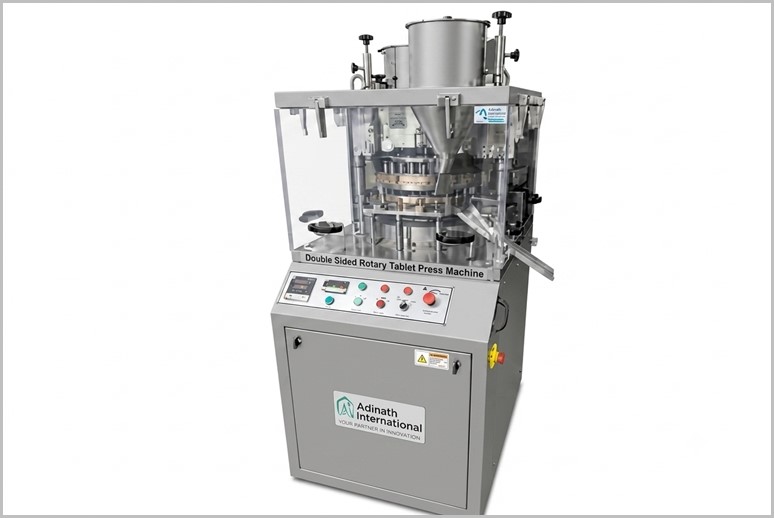

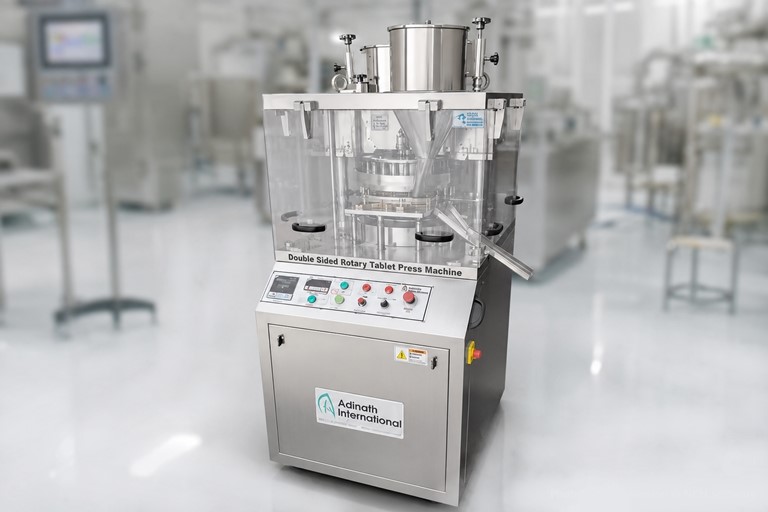

A GMP Tablet Press Machine is a high-speed, fully automated rotary tablet compression machine, specifically engineered to meet Good Manufacturing Practice (GMP) standards for pharmaceutical, nutraceutical, and related industries. It is widely used for producing high-quality tablets with consistent weight, hardness, and thickness under cleanroom-compliant conditions.
GMP Tablet Press Machine Video
Types of Tablet Press Machines
Our range of tableting machines consist small tablet press or mini tablet press to high speed tablet press. We specialize in designing different types of rotary tablet press machines and square tablet press machines such as:
-
8 Station Rotary Tableting Machine
-
16 Station Rotary Tableting Machine
-
27 Station Rotary Tableting Machine
-
35 Station Rotary Tableting Machine
-
45 Station Rotary Tableting Machine
-
55 Station Rotary Tableting Machine
-
61 Station Rotary Tableting Machine
Application of Tablet Press Machine
-
Pharmaceutical Tablets
-
Vitamin Pills
-
Mineral Supplements Tablets
-
Hebbal Tablets
-
Ayurvedic Tablets
-
Chlorine Tablets
Advantages
-
High yield (>99.5%) with minimal powder loss.
-
Low noise (<75 dB).
-
Fast changeover (15–30 mins).
-
Energy-efficient servo motors (in premium models).
-
Remote diagnostics via Ethernet.
Salient Features of Tablet Press Machine GMP Model
-
Square GMP Model
-
Machine is having C.I. Body & C.I. middle plate
-
Easy and More thorough Cleaning
-
Paint free tablet manufacturing zone.
-
Excellent and Operator Friendly Material Feeding System
-
Lower Guards of Polished Stainless Steel
-
Upper Guards of transparent Acrylic material
-
Electronic / Digital, Tablet Cum RPM Counter
-
Turret of Special Grade S G IRON casting
-
Lower Punch wiper Seal to prevent lower Punch jamming
-
Aluminium turret speed 17 to 42 RPM
-
Phosphorous bronze bush provided inside the turret hole
-
Imported needle roller bearing provided at the bottom of turret
-
Cam tracks & pressure rolls made out alloy steel
-
Worm is made of Phosphorous bronze material
-
Separate grinded center pillar of M.S. Material
-
Upper punch penetration system
-
Effective Dust Extraction Nozzles
-
Inter Lock Swutcges to all Guards
-
Variable Speed Pulley
-
One Shot Lubrication System
-
Double Sided Lifting Cams
-
Anti Vibration ounts
-
Overload Pressure Release System
-
Reverse direction motion protection is provide to avoid major accident
Working Principle of Tablet Press Machine
Tablet compression machine basically works on hydraulic pressure. This pressure perform key role in any type of Tablet Machine. It transmitted unreduced through the static fluid. Any external applied pressure is transmitted through static fluid to all directions in the same proposition. which resulting make suitable to increase pressure.
To form a tablet, the granulated powder material must be metered into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to fuse the material together. There are two types of tablet presses called Single Station Tablet Press and Multi Station Tablet Press. Working of these machines differs in terms of production output and feature requirements.
Technical Specification of Rotary Tablet Press Machine
|
Model |
16D | 20D | 24D | 37D |
| Number of Stations | 16 | 20 | 24 |
37 |
|
Type of Tooling Punch |
D | D | DB | D |
| Output – Tablets / hour approx. | 13,440 – 40,320 | 16,800 – 50,400 | 19,320 – 57,950 |
222000 |
| Max. Operating Pressure | 100 KN | 100 KN | 65 KN | 100 KN |
| Max. Tablet Dia | 25mm | 25mm | 16mm |
25mm |
|
Max. Depth of fill |
20.5 mm | 20.5 mm | 17.5 mm | 20mm |
| Upper Punch Penetration | 1.5 – 8 mm | 1.5 – 8 mm | 1.5 – 8 mm |
3 – 6mm |
|
Main Electric Motor |
3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. | 3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. | 3 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. | 9 H.P., 1440 RPM, 415 V., 3 Phase, 50 Hz. |
| Overall Dimension (cm) approx. | 98 x 102 x 182 H | 98 x 102 x 182 H | 98 x 102 x 182 H |
167 x 183 x 215 |
|
Net Weight (Kgs) approx. |
1150 | 1150 | 1150 |
2500 |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
