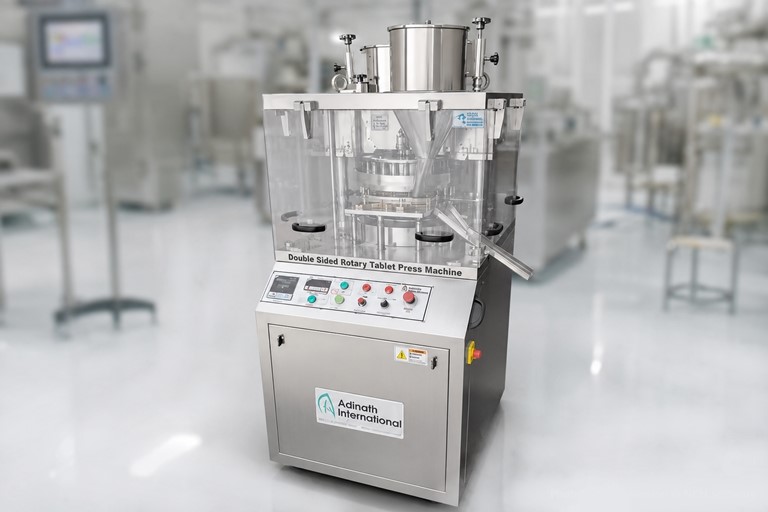

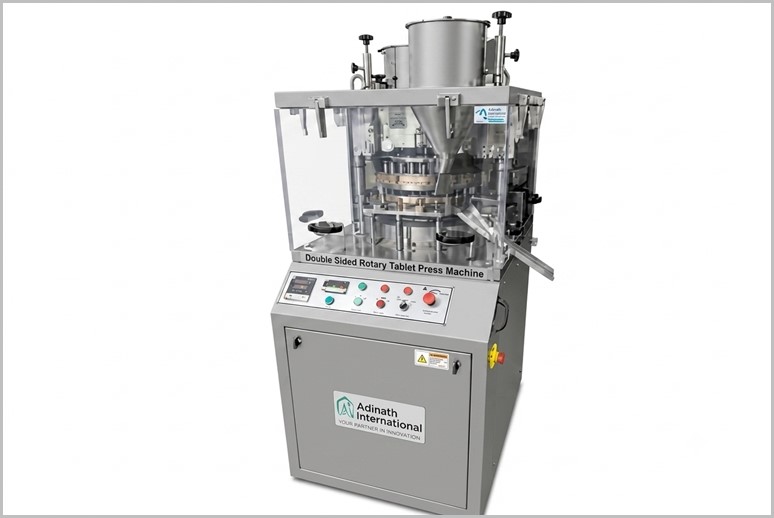

Rotary Tablet Press Machine

The machine operates on the principle of hydraulic pressure using a rotating turret. Powder flows into die cavities as lower punches drop. The upper and lower punches then apply pre-compression and main compression forces to form the tablet. The turret rotates continuously, with cam tracks guiding punches through filling, compression, and ejection stages, allowing simultaneous production across multiple stations.

• Compact GMP-compliant design with powerful pre- and main compression forces (up to 100 KN).
• Turret driven by a centrally fitted oil-immersed gearbox with speeds up to 70 RPM.
• Available with optional two-layer tablet compression, PLC/HMI controls, auto lubrication, and pneumatic powder loading.
• Features upper punch penetration adjustment, anti-vibration mounts, safety interlocks, and hydro-pneumatic pressure control.
• Tooling options in D, B, and BB configurations.

The machine is available in models such as 16D, 20D, 24D, and 37D with output ranging from 13,440 to 222,000 tablets per hour. It supports maximum tablet diameters up to 25mm, compression forces up to 100 KN, and various tooling types. Specifications vary by model to suit different production scales.

Advantages include high production speed and consistency, uniform tablet weight/hardness/thickness, suitability for large-scale manufacturing, support for various tablet shapes, and low maintenance with automated controls. Applications span the Pharmaceutical, Biotech, Ayurvedic, Herbal, and Nutraceutical industries for efficient solid dosage form production.
