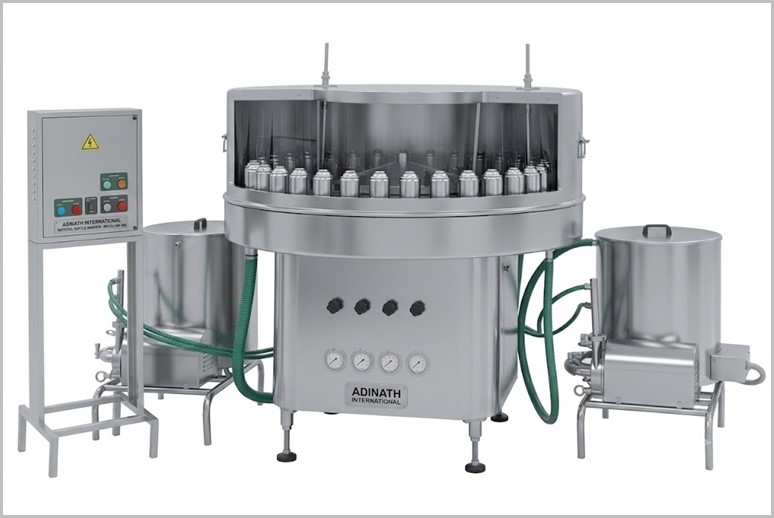

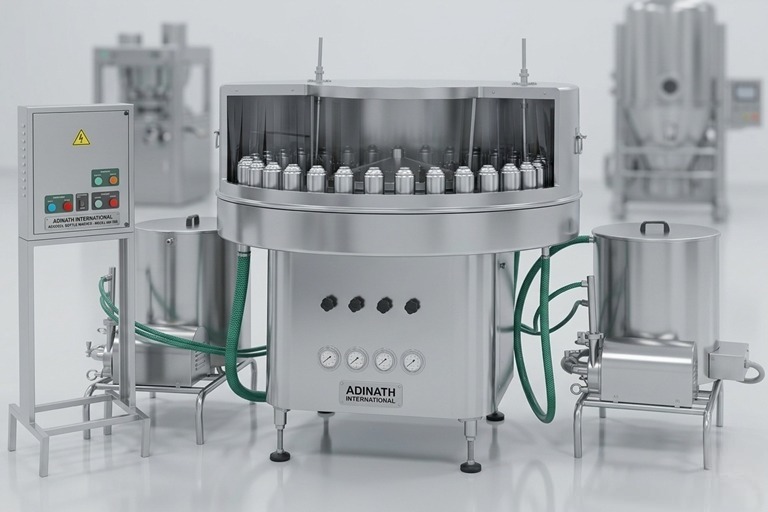

The Bottle Washing Machine is a fully automated, high-efficiency system engineered for cleaning new or recycled bottles prior to filling. Available in rotary (high-speed) or linear (compact) configurations, it accommodates bottle sizes from 50 ml to 5 liters and materials including glass, PET, and plastic.
Bottle Washing Machine Video
Types of Bottle Washing Machines
- Linear (Tunnel) Bottle Washers
-
Bottles move in a straight line through different zones
-
Common in smaller or medium-sized plants
-
Easier maintenance, lower cost
-
- Rotary Bottle Washers
-
Bottles are loaded onto rotating carousels
-
Very high speed
-
Used in large beverage plants (Coca-Cola, Pepsi, major breweries)
-
Typical Washing Stages
-
Pre-rinse (remove loose dirt)
-
Caustic soak or spray (main cleaning + label removal)
-
Internal & external high-pressure spraying
-
Fresh water rinses (multiple stages)
-
Final rinse with clean or de-ionized water
-
Air blowing / drying (optional)
Salient Features of Bottle Washing Machine
-
Geneva mechanism.
-
Four inner, one outer and one air wash.
-
Sequence of washes of washes to customer’s choice
-
Stationary nozzles eliminate contamination of water cycles.
-
Easy loading and unloading with two rows.
-
Individual solenoid valve for each washing sequence.
-
Pumps and tanks are mounted on parable stand for easy maintenance.
-
Easy operation.
-
Higher capacity centrifugal pumps to wash bigger bottles.
-
The stationary nozzles avoid chipping of bottle necks.
-
Bottle guide system especially for lightweight bottle.
-
Pumps and Tanks are mounted on portable stand for easy maintenance.
-
Separate panel control to avoid any short circuit due to spraying of water.
-
S.S. glycerin fill pressure meter.
Process Operation of Automatic Bottle Washer
The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.
Technical Specification of Bottle Washer Machine
|
Model No |
ARBW – 64 | ARBW – 100 |
| Production Output | Up to 60 Bottles / Minute (Depending on Bottle Size) |
Up to 100 Bottles / Minute (Depending on Bottle Size) |
|
Input Specification |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
| Power Supply | Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz
Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
|
Overall Dimension |
1550 mm (L) x 1700 mm (W) x 1300 mm (H) approx. | 1800 mm (L) x 1700 mm (W) x 1300 mm (H) approx. |
| Air Consumption | 30 CFM @ 5 bar |
30 CFM @ 5 bar |
|
Net Weight |
650 kgs. approx. |
750 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
