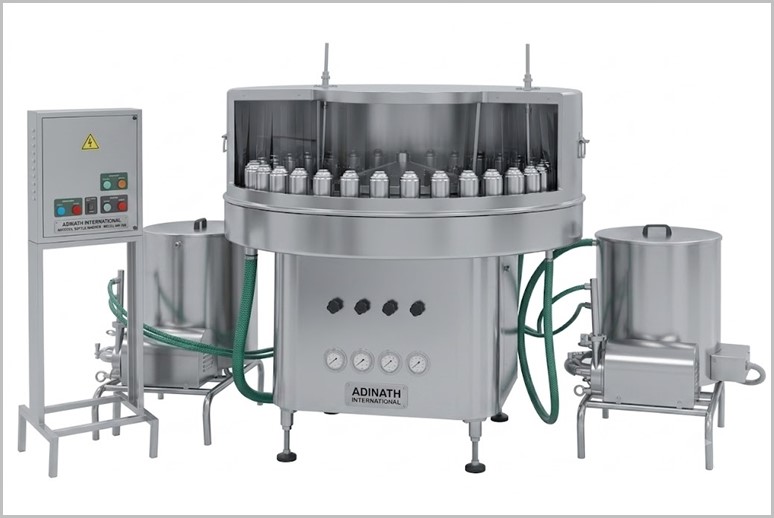

Chemical Bottle Washing Machine

Description

Chemical Bottle Washing Machine is a specialized industrial cleaning system designed for the thorough washing, rinsing, and sanitization of glass or plastic bottles previously used for storing chemicals, pharmaceuticals, laboratory reagents, acids, alkalis, solvents, or other hazardous substances.

If you need details on specific models and pricing, let me know!

Salient Features of Chemical Bottle Washing Machine

Geneva mechanism.
Four inner, one outer and one air wash.
Sequence of washes of washes to customer’s choice
Stationary nozzles eliminate contamination of water cycles.
Easy loading and unloading with two rows.
Individual solenoid valve for each washing sequence.
Pumps and tanks are mounted on parable stand for easy maintenance.

Easy operation.
Higher capacity centrifugal pumps to wash bigger bottles.
The stationary nozzles avoid chipping of bottle necks.
Bottle guide system especially for lightweight bottle.
Pumps and Tanks are mounted on portable stand for easy maintenance.
Separate panel control to avoid any short circuit due to spraying of water.
S.S. glycerin fill pressure meter.

Working Principle of Chemical Bottle Washing Machine

The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.

Technical Specification of Chemical Bottle Washing Machine

Model No	ARBW – 64	ARBW – 100
Production Output	Up to 60 Bottles / Minute (Depending on Bottle Size)	Up to 100 Bottles / Minute (Depending on Bottle Size)
Input Specification	Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts)	Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts)
Power Supply	Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W.	Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W.
Overall Dimension	1550 mm (L) x 1700 mm (W) x 1300 mm (H) approx.	1800 mm (L) x 1700 mm (W) x 1300 mm (H) approx.
Air Consumption	30 CFM @ 5 bar	30 CFM @ 5 bar
Net Weight	650 kgs. approx.	750 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Washing and Cleaning Machine

Automatic Airjet Bottle Cleaning Machine

Multijet Ampoule Washing Machine

Automatic External Ampoule Washing Machine

Inverter Type Airjet Cleaning Machine

Inverter type Airjet Cleaning Machine

Automatic Linear Bottle Washer

Applications of Washing and Cleaning Machine

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Chemical Bottle Washing Machine

Superior Cleaning for Aggressive Chemicals

Robust & Corrosion-Resistant Construction

High-Speed & High-Volume Output

Low Maintenance & Easy Operation

Key Features of Chemical Bottle Washing Machine

Deep Chemical Residue Removal: Utilizes high-pressure jets, recirculating hot alkaline/acidic detergents, neutralizing agents, and multiple rinse cycles (including purified water or DI water) to completely eliminate toxic, corrosive, or reactive chemical residues.

Safety Compliance: Ensures bottles are safe for reuse, recycling, or disposal in compliance with strict industry standards.

Automated Process: Typically fully automatic or semi-automatic with programmable cycles for soaking, scrubbing, high-pressure interior/exterior washing, air blowing, and final rinsing.

Material Compatibility: Constructed with corrosion-resistant materials to withstand aggressive cleaning chemicals and prevent contamination.

Capacity Range: Available from laboratory-scale to large industrial models.

FAQ for Chemical Bottle Washing Machine

What is a Chemical Bottle Washing Machine?

A Chemical Bottle Washing Machine is a specialized industrial system designed for thorough cleaning, rinsing, and sanitization of glass or plastic bottles used for storing chemicals, acids, alkalis, solvents, reagents, or hazardous substances. It removes stubborn chemical residues to ensure bottles are safe for reuse, recycling, or proper disposal.

What are the key features of the Chemical Bottle Washing Machine?

Robust Geneva mechanism for reliable rotary operation
Multi-stage washing (inner, outer, and air washes) with customizable sequences
Stationary nozzles to prevent contamination and bottle neck damage
High-capacity centrifugal pumps for effective cleaning of larger bottles
SS 316 contact parts for corrosion resistance against aggressive chemicals
Easy loading/unloading, portable tanks, and separate control panel
Individual solenoid valves for precise water and air control

What is the production capacity?

The machine is available in models such as ARBW-64 (up to 60 bottles/minute) and ARBW-100 (up to 100 bottles/minute). It handles bottles with diameters of 25–100 mm and heights up to 280 mm (with change parts), making it suitable for various chemical container sizes.

Why is corrosion resistance important in a Chemical Bottle Washing Machine?

Chemical bottles often contain highly corrosive or reactive substances. The machine uses Stainless Steel 316 contact parts and durable construction to withstand aggressive cleaning agents (acids, alkalis, detergents) without degrading, ensuring long service life, consistent performance, and prevention of cross-contamination.

What are the main benefits of using a Chemical Bottle Washing Machine?

Deep removal of toxic and stubborn chemical residues
High-speed automated cleaning for improved productivity
Enhanced safety and compliance with industry regulations
Reduced labor costs and water/chemical consumption through recycling options
Versatile for glass and plastic bottles in chemical, pharmaceutical, and industrial applications
Low maintenance with easy cleaning and robust design for continuous operation
