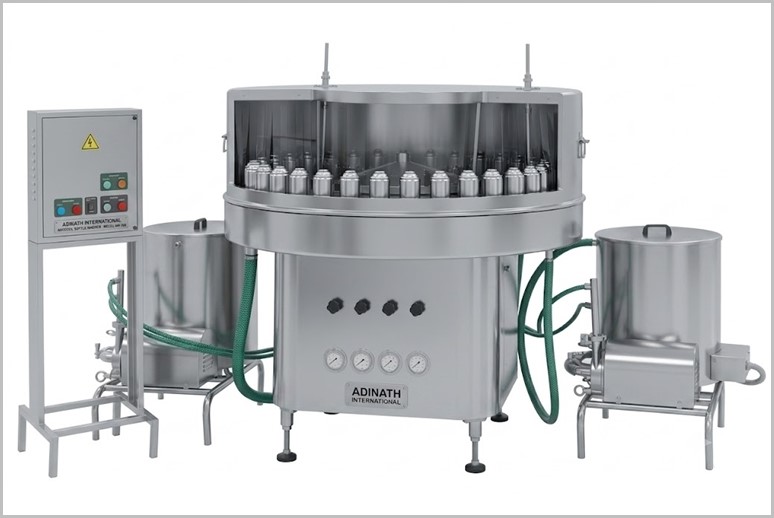

The Semi Automatic Rotary Bottle Washing Machine is a compact and efficient solution designed for thorough external and internal cleaning of glass, PET, and HDPE bottles (typically ranging from 50 ml to 1000 ml capacity) in pharmaceutical, beverage, food, dairy, cosmetic, and chemical industries.
Semi Automatic Rotary Bottle Washing Machine Video
Key Features & Working Principle
-
Rotary Bottle Washing Machine features a rotary turret/indexing table with bottle holders/grippers that rotate continuously or intermittently.
-
Bottles are manually loaded (or via optional conveyor) upside-down onto the bottle holders.
-
As the turret rotates, bottles pass sequentially through multiple washing stations:
-
Pre-washing with recycled water
-
Internal & external washing with fresh water/detergent
-
Air blowing for water drainage
-
Final rinsing with DM/distilled water or purified water
-
Sterile compressed air blowing (optional)
-
-
Washing media (water/air) is supplied through solenoid valves and specially designed nozzles that enter inside the bottle neck for effective internal cleaning while external jets clean the outer surface.
-
After completing the cycle, clean bottles are manually unloaded or automatically transferred to the next station.
Standard Specifications
-
Number of washing stations: 8, 12, 16 or 20
-
Construction: Stainless Steel 304/316 contact parts, fully GMP compliant
-
Change parts: Quick-change bottle holders for different diameters
-
Utilities required: Water (recycled & fresh), compressed air, optional steam/DM water
-
Control: PLC + HMI (optional) with safety interlocks
Advantages
-
High cleaning efficiency with minimum water & air consumption
-
Low maintenance and easy cleaning
-
Suitable for small to medium-scale production
-
Complies with cGMP and USFDA standards
Technical Specification of Rotary Bottle Washer Machine
|
Model No |
ARBW – 64 | ARBW – 100 |
| Production Output | Up to 60 Bottles / Minute (Depending on Bottle Size) |
Up to 100 Bottles / Minute (Depending on Bottle Size) |
|
Input Specification |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts) |
| Power Supply | Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz
Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W. |
|
Overall Dimension |
1550 mm (L) x 1700 mm (W) x 1300 mm (H) approx. | 1800 mm (L) x 1700 mm (W) x 1300 mm (H) approx. |
| Air Consumption | 30 CFM @ 5 bar |
30 CFM @ 5 bar |
|
Net Weight |
650 kgs. approx. |
750 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
