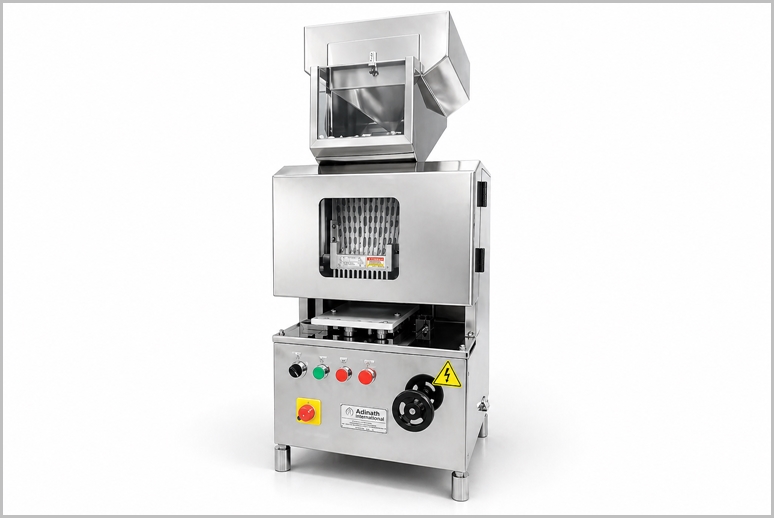

Capsule Loading Device

Description

Capsule Loading Device typically refers to equipment used in the pharmaceutical, nutraceutical, or supplement industries to efficiently load empty capsules (such as gelatin or vegetarian capsules) onto trays or into filling machines. This process orients the capsules correctly—usually with the cap facing up—for subsequent steps like powder filling, tamping, and sealing. It’s an essential accessory for manual, semi-automatic, or automated capsule production lines, helping to increase productivity while reducing labor and errors compared to hand-loading.

Feeding: Empty capsules are poured into a hopper or vibratory feeder.

Orientation: The device separates caps from bodies (if needed) and aligns them vertically, cap-up, using channels or rails.

Loading: Capsules are ejected into a tray or directly into a filling station. For instance, in a 300-hole loader, each stroke might fill 12 capsules across rows.

Integration: The loaded tray then moves to a filling machine for powder addition, followed by capping.

This setup minimizes spillage and ensures uniform loading, making it ideal for herbs, vitamins, or pharmaceuticals.

If you need details on specific models and pricing, let me know!

Salient Features of Capsule Loading Device

Compact-Sized Equipment.
Working numerous filling machines with a single capsule loader will maximize manufacturing output.
Appropriate for GMP productions, Documentation on IQ, OQ, and DQ is available.
When the third tray in the capsule filling machine is in operation, two loading trays can be filled in the loader machine.

Both devices are capable of handling capsules of various sizes.
Since the loader has a single-phase power source, even domestic electricity functions.
Machines capable of processing HPMC, veg, and hard gelatin capsules.
Even a semi-skilled individual can run the machine thanks to its simplicity.

Working Principle of Capsule Loading Device

Adinath is one of the leading capsule filling machine manufacturers in India. We are giving here below step-by-step process guide of Capsule Filling Machine with Loader:

By pulling the lever, slide the rail further.
Place the loading tray from the capsule filling machine onto the loading area of the capsule loader automatically.
Attach the guiding plate to the loading tray’s four top legs.
Slide rail is pushed within.
Launch the device.
Once the machine is running, the loader will automatically fill the rows one at a time.
It will fill 12 capsules in the loading tray with each stroke.
The machine will automatically stop once all 300 holes have been filled with capsules.
Now remove the loading tray and the guide plate.
Add the properly filled loading tray to the capsule filling machine.
Verify that the front knob is turned to the right.
Now further steps will be performed in the manual capsule filling machine.

Technical Specification of Capsule Loading Device

Model	ACL 300
Production Output	Up to 20000 Capsules/hour (depends upon operator’s efficiency)
Capsule Combinations	Size 00, 0, 1, 2, 3 and 4 (through format parts)
Sequence of holes	25 x 12 = 300
Power Voltage	220 Volts, Single Phase, 50 Hertz
Overall Dimension	630mm X 430mm X 780mm approx.
Net Weight	80 Kgs. approx.
Gross Weight	120 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Filling Machine

100 Holes Capsule Filling Machine

Automatic Capsule Filling Machine

Automatic Capsule Loader

Capsule Filling Machine with Loader Orienter

Capsule Polishing Machine

Lab Scale Automatic Capsule Filler

Manual Capsule Filling Machine

Semi Automatic Capsule Filling Machine

Applications of Capsule Filling Machine

Benefits of Capsule Loading Device

Significant Increase in Productivity

Drastically Reduces Manual Labor

Low Investment – High Output

Consistent & Accurate Orientation

Saves Time & Increases Efficiency

Key Advantages of Capsule Loading Device

Capsule loading devices come in various forms, from simple manual loaders to fully automated orienters. Here’s a breakdown:

Manual Capsule Loaders: Basic trays or holders that allow users to load capsules by hand into a grid. These are affordable for home or small-scale use and often pair with a separate filling machine.

Automatic Capsule Loaders/Orienters: Advanced machines that automatically sort, orient, and load capsules into trays. For example:
- They use vibration or mechanical feeding to align capsules cap-up.
- Compatible with standard sizes like “00” (largest common size) or “0”.
- Often integrated with manual filling machines to boost output by 2–3 times.

Common capacities include 24, 100, or 300 capsules per load, depending on the machine size.

FAQ for Capsule Loading Device

What is a Capsule Loading Device and what is it used for?

A Capsule Loading Device (also known as Automatic Capsule Loader or Capsule Orienter, Model ACL 300) is a compact auxiliary machine that automatically orients and loads empty capsules into the loading trays of manual or semi-automatic capsule filling machines. It is widely used in pharmaceutical, nutraceutical, Ayurvedic, herbal, and supplement industries to reduce manual labor, ensure correct capsule orientation (cap up/body down), minimize errors, and significantly boost production efficiency.

What is the production capacity of the Capsule Loading Device?

The ACL 300 model can load up to 20,000 capsules per hour (depending on operator efficiency). It fills a 300-hole tray (25 × 12 arrangement) in approximately 28–30 seconds. One loader can efficiently support multiple filling machines by loading two trays while the third is in use on the filler.

Which capsule sizes and materials does the Capsule Loading Device support?

It supports standard capsule sizes 00, 0, 1, 2, 3, and 4 through interchangeable format/change parts. The device is compatible with hard gelatin capsules, HPMC (vegetarian), and veg capsules, making it suitable for a wide range of formulations in pharmaceutical and nutraceutical production.

Does the Capsule Loading Device require electricity? What are its key features?

Yes, it operates on a single-phase 220V power supply (works on domestic electricity; voltage can be customized as per requirements). Key features include its compact GMP-compliant design (approx. 630mm × 430mm × 780mm, ~80 kg net weight), stainless steel contact parts, fast automatic row-by-row loading (12 capsules per stroke), easy operation by semi-skilled workers, low maintenance, simple cleaning, and availability of IQ/OQ/DQ documentation.

How does the Capsule Loading Device work and what are its main benefits?

The working process is straightforward: Place the empty tray and guiding plate on the loader, pour capsules into the hopper, start the machine (it automatically orients and loads row by row), and remove the filled tray once all 300 holes are loaded. Main benefits include drastically reducing manual loading time, increasing overall productivity, improving accuracy and consistency, minimizing operator fatigue, ensuring GMP compliance, and offering a low-investment, high-output solution for small to medium-scale production.
