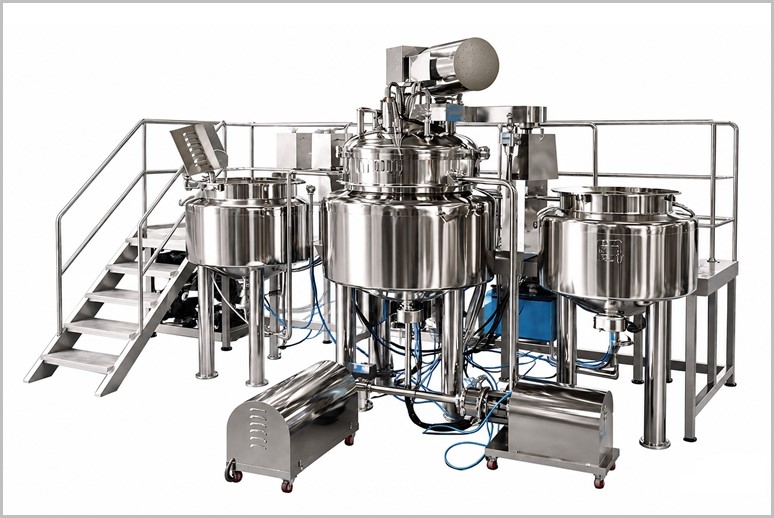

Ointment Production Plant

Description

Ointment Production Plant also known as an ointment manufacturing plant, is a specialized facility designed for the large-scale production of semi-solid pharmaceutical and cosmetic products. These include ointments, creams, lotions, gels, toothpastes, and emulsions used in skincare, wound care, and personal hygiene. Such plants ensure high-quality output through automated mixing, homogenization, and packaging processes, adhering to strict regulatory standards like cGMP and WHO-GMP. These plants are essential in industries requiring precise control over viscosity, texture, and active ingredient distribution, minimizing human intervention to reduce contamination risks and improve efficiency.

If you need details on specific models and pricing, let me know!

Salient Features of Ointment Production Plant

The Plant is designed to be operated only by one operator and one helper.
All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
All the vessels are cGMP (paint free construction).
The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material & finished to class 4B (Mirror) finish and are crevice free.
The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice).

All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
All material transfers are done by vacuum or by transfer pumps.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
A microprocessor based automatic operating plant can be designed as per requirement.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Working Principle of Ointment Production Plant

A comprehensive range of additional features can be provided to increase the flexibility of the Mixer Each option is supplied fully integrated in to the control system of the unit with appropriate safety features.

Heating / cooling and insulated jackets complete with temperature control and safety equipment

Semi Contra Rotary agitator with open slot scraper design

Short loop product Re-Circulation for smaller batch sizes

Hydraulic lifting of manufacturing vessel top dish to facilitate product recovery

Separate pre – mix vessels for wax and water phase

Process piping with transfer panel design for automated plants

Leaning In place cycles with validation protocols

Ointment Manufacturing Plant Layout (GA Drawing)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Manufacturing Plant

Oral Suspension Production Plant

Cosmetic Manufacturing Plant

Oral Liquid Production Plant

Shampoo Manufacturing Plant

Syrup Preparation Plant

Toothpaste Preparation Plant

Applications of Manufacturing Plant

Benefits of Ointment Production Plant

Efficiency: Automation reduces production time and labor costs.

Quality: Uniform products with negligible wastage due to sealed systems.

Scalability: Easily adaptable for small-batch R&D or high-volume commercial runs.

Compliance: Built-in features like interlocking safety devices and validation support regulatory approvals.

Key Features of Ointment Production Plant

A typical Ointment Production Plant integrates several interconnected systems for seamless operation. Here’s a breakdown of the main components:

Water Phase Vessel:
- Prepares the aqueous components of the formulation by heating or cooling the mixture.
- Jacketed for temperature control; often includes stirrers for uniform blending.

Wax/Oil Phase Vessel:
- Handles oily or waxy ingredients, ensuring they are melted and emulsified properly.
- Vacuum transfer capabilities; conical filters to remove impurities.

Main Manufacturing Vessel:
- Central mixing unit where phases are combined, emulsified, and homogenized.
- High-speed agitators (up to 960 RPM); hydraulic lifting for easy cleaning and product recovery.

Homogenizer:
- Breaks down particles for a smooth, uniform texture.
- Inline or batch types; ensures high shear for emulsions.

Storage Vessel:
- Holds the final product before packaging.
- Jacketed for temperature maintenance; CIP (Clean-In-Place) compatible.

Filling & Sealing Machine:
- Automates filling into tubes, jars, or bottles and seals them.
- Volumetric piston fillers; suitable for various container sizes.

Control Panel:
- Digital interface for monitoring and automation.
- Touchscreen with PLC/SCADA; controls speed, temperature, and time.

We manufacture Ointment Production Plants in batch production capacity ranging from 20 kgs. to 2000 kgs.

FAQ for Ointment Production Plant

What is an Ointment Production Plant?

An Ointment Production Plant (also known as Ointment Manufacturing Plant) is a specialized facility for large-scale production of semi-solid formulations such as ointments, creams, lotions, gels, and toothpastes. It is widely used in pharmaceutical and cosmetic industries to ensure precise mixing, emulsification, homogenization, and compliance with cGMP/WHO-GMP standards for high-quality, stable products.

What are the key features of the Ointment Production Plant?

Key features include operation by one operator and one helper, SS 304/316 contact parts with mirror finish and tri-clover joints, cGMP-compliant vessels, food-grade gaskets, CIP/SIP capability, vacuum transfers, jacketed vessels with temperature control, high-speed emulsifiers, semi-contra rotary agitators, hydraulic lifting, and optional PLC automation. Batch sizes range from 20 kg to 2000 kg.

How does the Ointment Production process work?

The process uses separate pre-mix vessels for water and wax/oil phases. Ingredients are heated/cooled in jacketed vessels, then combined in the main manufacturing vessel using high-shear mixing and homogenization under vacuum. The mixture is recirculated, cooled, and transferred to storage or filling lines for packaging.

What industries use Ointment Production Plants?

These plants serve the Pharmaceutical, Cosmetic, Ayurvedic, Herbal, Nutraceutical, and Biotech industries. They are ideal for producing dermatological products, medicated creams, gels, lotions, and other topical semi-solid formulations.

What are the main benefits of an Ointment Production Plant?

Benefits include high efficiency with low manpower, excellent product uniformity and stability, reduced contamination through sealed systems, easy cleaning/validation with CIP/SIP, scalability for R&D to commercial production, and strong regulatory compliance support.
