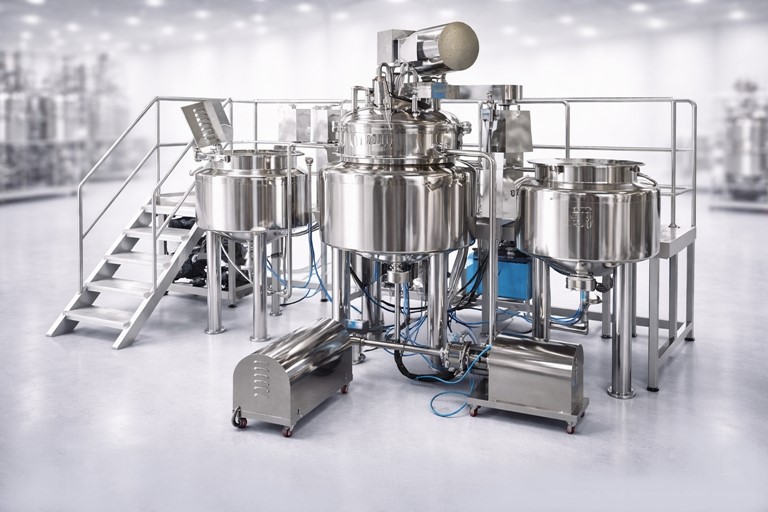

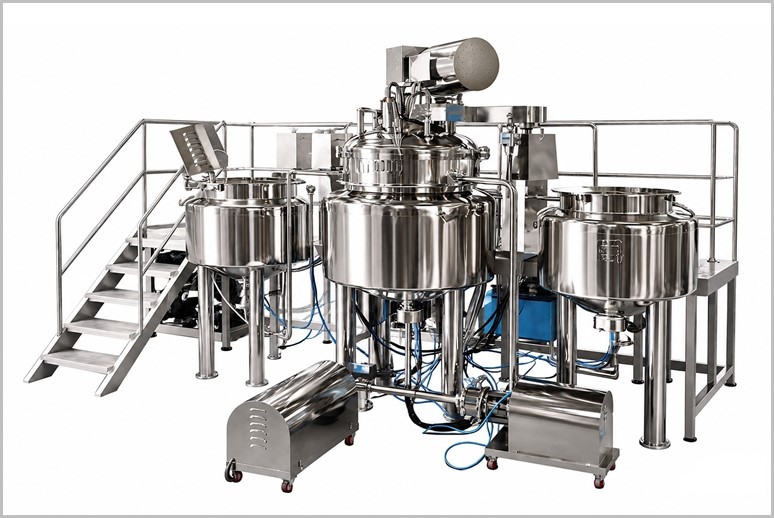

Pharma Ointment Preparation Plant

Description

Pharma Ointment Preparation Plant also known as an ointment manufacturing plant, is a specialized production facility designed for the large-scale manufacture of semi-solid topical products. These include ointments, creams, gels, lotions, toothpastes, and emulsions used in pharmaceutical, cosmetic, and veterinary applications. Such plants ensure uniform mixing, emulsification, and homogenization while adhering to strict regulatory standards like WHO-GMP and cGMP to maintain product quality, sterility, and safety. These plants are versatile and can produce a wide range of formulations, such as antiseptic, anti-allergic, anti-fungal ointments, or even non-pharma items like shaving creams and hair gels.

If you need details on specific models and pricing, let me know!

Salient Features of Pharma Ointment Preparation Plant

The Plant is designed to be operated only by one operator and one helper.
All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
All the vessels are cGMP (paint free construction).
The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material & finished to class 4B (Mirror) finish and are crevice free.
The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice).

All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
All material transfers are done by vacuum or by transfer pumps.
The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
A microprocessor based automatic operating plant can be designed as per requirement.
All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.

Working Principle of Pharma Ointment Preparation Plant

A comprehensive range of additional features can be provided to increase the flexibility of the Mixer Each option is supplied fully integrated in to the control system of the unit with appropriate safety features.

Heating / cooling and insulated jackets complete with temperature control and safety equipment

Semi Contra Rotary agitator with open slot scraper design

Short loop product Re-Circulation for smaller batch sizes

Hydraulic lifting of manufacturing vessel top dish to facilitate product recovery

Separate pre – mix vessels for wax and water phase

Process piping with transfer panel design for automated plants

Leaning In place cycles with validation protocols

Ointment Manufacturing Plant Layout (GA Drawing)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Manufacturing Plant

Oral Suspension Production Plant

Cosmetic Manufacturing Plant

Oral Liquid Production Plant

Shampoo Manufacturing Plant

Syrup Preparation Plant

Toothpaste Preparation Plant

Applications of Manufacturing Plant

Advantages of Pharma Ointment Preparation Plant

Efficiency: Vacuum systems eliminate air, improving product shelf life and texture.

Compliance: Designed for FDA/WHO standards, with options for sterile production.

Scalability: Customizable for automation levels.

Challenges: High initial setup costs and regulatory hurdles, especially for sterile lines.

Key Components of Pharma Ointment Preparation Plant

Ointment plants consist of integrated equipment for efficient processing. Here’s a breakdown of the main components:

Water Phase Vessel: Prepares the aqueous components by heating and mixing to a precise temperature.

Oil/Wax Phase Vessel: Handles oil-based ingredients with heating jackets for melting and homogenization.

Main Manufacturing Vessel: Core unit where phases are combined under vacuum to remove air bubbles, achieve emulsification, and ensure uniform particle size. It features high-shear mixers, scrapers, and cooling jackets.

Storage Vessel: Holds the finished product temporarily, often with gentle agitation to prevent settling.

Transfer Pumps: Specialized pumps for viscous materials; bump pumps transfer product between vessels based on viscosity and batch size.

Filling & Sealing Machines: Automated systems for packaging into tubes, jars, or bottles, ensuring sterility and accurate dosing.

Control Panel: PLC/SCADA-integrated panel for automation, monitoring temperature, speed, and pressure; includes safety features like overload relays.

Interconnecting Pipelines: Stainless steel lines for hygienic transfer, often with valves for CIP systems.

We manufacture Pharma Ointment Preparation Plant in batch production capacity ranging from 20 kgs. to 2000 kgs.

FAQ for Pharma Ointment Preparation Plant

What is a Pharma Ointment Preparation Plant?

A Pharma Ointment Preparation Plant (also known as an Ointment Manufacturing Plant) is a complete processing system designed for large-scale production of semi-solid formulations such as ointments, creams, gels, lotions, toothpastes, and emulsions. It ensures uniform mixing, emulsification, and homogenization while meeting cGMP, WHO-GMP, and FDA standards. Batch sizes typically range from 20 kg to 2000 kg.

What are the key components of an Ointment Preparation Plant?

The plant includes several integrated vessels and systems: Water Phase Vessel, Oil/Wax Phase Vessel, Main Manufacturing Vessel (with agitators and emulsifiers), Storage Vessel, Transfer Pumps, Vacuum System, and a Control Panel. It also features CIP/SIP capabilities, heating/cooling jackets, and hygienic stainless steel piping with tri-clover joints.

What are the main features of the Pharma Ointment Preparation Plant?

Salient features include cGMP-compliant design with SS 304/316 contact parts (mirror finish), vacuum transfer for minimal contamination, easy-to-clean tri-clover joints, digital controls for temperature and time, low manpower requirement (one operator + one helper), sterilization capability, and options for automation (PLC/microprocessor) and hydraulic lifting.

How does the Pharma Ointment Preparation Plant work?

The process involves preparing water and oil/wax phases separately in dedicated vessels with heating/cooling. These phases are then transferred to the main manufacturing vessel under vacuum, where high-shear emulsifiers and contra-rotary agitators with scrapers ensure thorough mixing and homogenization. The finished product is transferred to a storage vessel via pumps for further processing or filling.

Which industries use the Ointment Preparation Plant?

It is widely used in the Pharmaceutical, Cosmetic, Ayurvedic, Herbal, Nutraceutical, and Biotech industries. Common applications include manufacturing medicated ointments, antiseptic creams, anti-fungal gels, lotions, hair gels, shaving creams, and other topical or semi-solid products.
