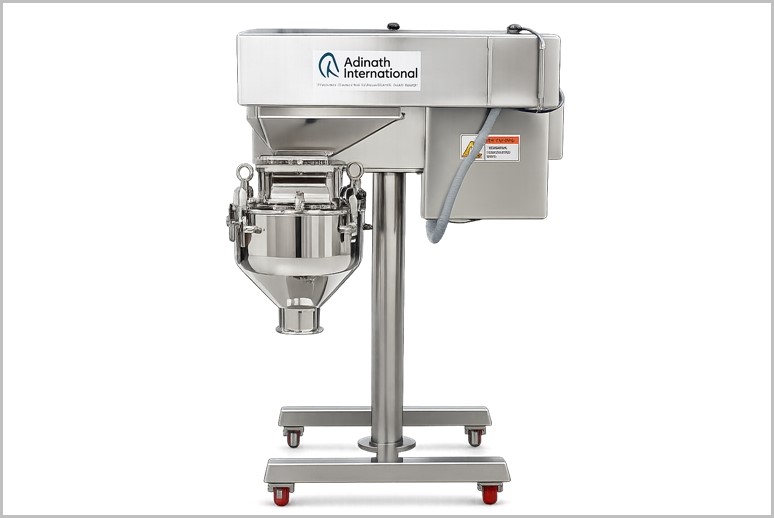

Multi Mill

Q: What are the available models and capacities?

We offer three main models: MM-100 : Up to 100 kg/hour MM-200 : Up to 200 kg/hour MM-500 : Up to 500 kg/hour Motor power ranges from 1 HP to 5 HP with variable rotor speeds (750 to 3000 RPM). Lab-scale and custom higher-capacity models are also available.

Q: Which industries is the Multi Mill suitable for?

The Multi Mill is ideal for: Pharmaceutical Industry Biotech Industry Ayurvedic & Herbal Industry Nutraceutical Industry Cosmetic Industry Food Processing and Chemical Industries It excels at size reduction for both wet and dry materials.

Q: What are the key features and benefits of the Multi Mill?

Key Features : Compact cGMP model with SS 304/316 contact parts Portable on castor wheels Interchangeable screens (0.5 mm to 12 mm) 12 beaters + scraper blades, reversible direction Easy dismantling and cleaning Variable speed via AC drive (optional) Benefits : High output, uniform particle size, low heat generation, easy maintenance, multi-purpose use, and minimal fines.

Description

Multi Mill is a versatile, high-speed size reduction machine used in pharmaceutical, chemical, food, cosmetic, and related industries for wet and dry granulation, pulverization, milling, shredding, chopping, and particle size reduction of powders, granules, and other materials. It operates on the principle of impact in air, where rotating blades shred material fed into a hopper, passing it through a selected screen for controlled particle size, while maintaining low temperatures to prevent degradation.

If you need details on specific models and pricing, let me know!

Salient Features of Multi Mill

Compact GMP Model.
Suitable for dry and wet granules.
All contact parts are made out of SS304 quality material.
Castor wheel provided for the ease of mobility.
Sieves available in sizes of 0.5 to 12mm hole diameter.
12 numbers of beaters with knife edges & impact edges & 02 nos. scrapper blades.
In GMP Model complete body cladded with SS304 and polished to the matt finish & in Standard Model excluding product contact parts, all other parts made out of C.I. or M.S. and colored.

Machine rated for continuous operation.
Higher output with process uniformity.
All contact parts can easily be dismantled and cleaned for change of product.
Wide range of SS perforated screens available
Machine portable on castor wheels.
Reversible direction of blade rotation.
Different size of screen / speed / number of blade / directions of rotation of blade can be selected.

Working Principle of Multi Mill

Unit consists of S.S 316 AISI quality material rotor fitted with 8 Nos. SS blades knife/impact edge having swing action and 2 Nos. scrapper blades. Rotor assembly fitted on SS shaft with suitable bearing. Other end of the shaft directly coupled with suitable H.P./3 PHASE/415V/60CS/2800 RPM flange mounting type motor through love jaw coupling. The speed variation will be achieved through A.C. Frequency drive unit with selected 4 speeds of i.e., 2800RPM/2200RPM/1600RPM/800RPM.

S.S Charging hopper with slide plate arrangement to control the material feed rate. S.S Screen with hold plate is provided to get desired size of granules. S.S discharge hopper with necessary holding arrangement. Drive unit supported on S.S column with S.S base plate fitted with PU castor wheels to achieve portability.

Technical Specification of Multi Mill

Model	MM-100	MM 200	MM-500
Production Output	Up to 100 Kgs. / Hour.	Up to 200 kgs./hour	Up to 500 Kgs. / Hour.
Rotor assembly diameter	150 mm Approx.	250 mm (approx.)	350 mm Approx.
Rotor Speed	750 / 1500 / 2300 / 3000 RPM	750 / 1500 / 2300 / 3000 RPM	750 / 1500 / 2100 / 3000 RPM
Beaters	12 knife & impact edges & 2 scrapper blades	12 knife & impact edges & 2 scrapper blades	12 knife & impact edges & 2 scrapper blades
Screen dimensions approx.	Inner Diameter 160 mm	Inner diameter – 260 mm	Inner diameter – 350 mm
	Height 135 mm	Height – 135 mm	Height – 200 mm

Motor	1 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.	3 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.	5 H. P., 1440 RPM, 440 Volts, 3 Phase, 50 Hz.
Starter	DOL Starter with reversible switch	DOL Starter with reversible switch	VFD Panel
Material Charging Height	1250mm	1445 mm approx.
Net Weight	80 Kgs. approx.	250 Kgs. approx.	Variable as required by client
Gross weight	150 Kgs. approx.	400 kgs. approx.	300 Kgs. approx.
Overall Dimensions approx. (LXWXH)	850mm x 950mm x 1630mm	870mm x 965mm x 1630mm	450 Kgs. approx.
Case Dimensions approx. (LXWXH)	1200mm x 1500mm x 1860mm	1200mm x 1550mm x 1860mm

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of Multi Mill

Fast, efficient for multi-purpose size reduction

easy to clean and maintain

minimal fines generation compared to other mills

suitable for fragile or heat-sensitive materials

Key Features of Multi Mill

Design and Construction: Compact, tabletop or portable unit with stainless steel contact parts for cGMP compliance, hygiene, and corrosion resistance. Includes a hopper, variable force swing beaters, interchangeable screens, and optional features like variable frequency drives (VFD) for speed control, dust extraction, and inline integration with sifters or granulators.

Capacity: Lab models handle small batches, typically up to a few kg, suitable for R&D, pharmacy colleges, and pilot-scale testing.

Power and Controls: Equipped with a 1-2 HP motor, high-speed rotation, digital controls, timers, and safety interlocks. Beaters rotate within the screen to achieve fine particle sizes without excessive heat.

Operation: Material enters the hopper, is impacted by high-speed blades, and exits through the screen in a spiral motion, collecting in a container below. This process ensures uniform size reduction for both wet and dry materials.

FAQ for Multi Mill

What is a Multi Mill?

A Multi Mill is a versatile, high-speed size reduction machine used for wet and dry granulation, pulverizing, mixing, shredding, chopping, and particle size reduction of powders and granules. It operates on the principle of impact and operates with swinging beaters (knife and impact edges) that pass material through interchangeable screens for controlled output particle size. It is widely used in pharmaceutical, chemical, food, cosmetic, and allied industries.

How does the Multi Mill work?

Material is fed into the hopper and controlled by a slide plate. It enters the processing chamber where high-speed rotating beaters (with knife and impact edges) shred and impact the material. The processed material passes through a selected perforated screen and is collected in the discharge container. The machine allows reversible blade rotation and variable speeds for different applications while generating minimal heat.

What are the available models and capacities?

We offer three main models:

MM-100: Up to 100 kg/hour
MM-200: Up to 200 kg/hour
MM-500: Up to 500 kg/hour

Motor power ranges from 1 HP to 5 HP with variable rotor speeds (750 to 3000 RPM). Lab-scale and custom higher-capacity models are also available.

Which industries is the Multi Mill suitable for?

The Multi Mill is ideal for:

Pharmaceutical Industry
Biotech Industry
Ayurvedic & Herbal Industry
Nutraceutical Industry
Cosmetic Industry
Food Processing and Chemical Industries

It excels at size reduction for both wet and dry materials.

What are the key features and benefits of the Multi Mill?

Key Features:

Compact cGMP model with SS 304/316 contact parts
Portable on castor wheels
Interchangeable screens (0.5 mm to 12 mm)
12 beaters + scraper blades, reversible direction
Easy dismantling and cleaning
Variable speed via AC drive (optional)

Benefits: High output, uniform particle size, low heat generation, easy maintenance, multi-purpose use, and minimal fines.
