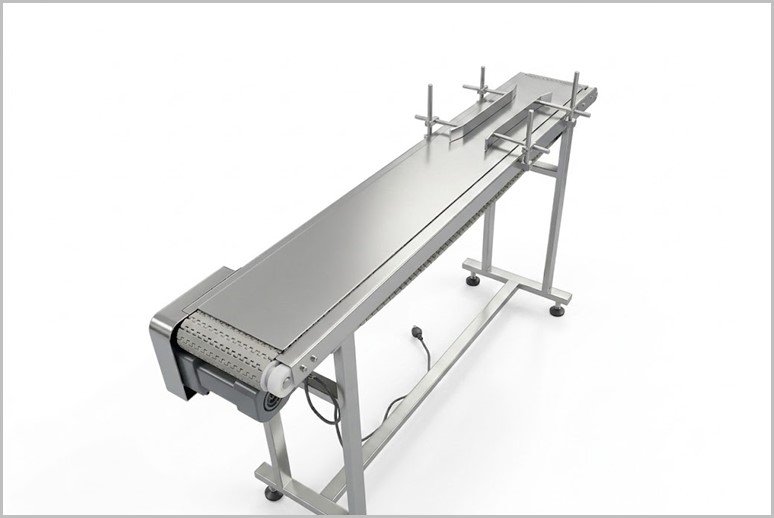

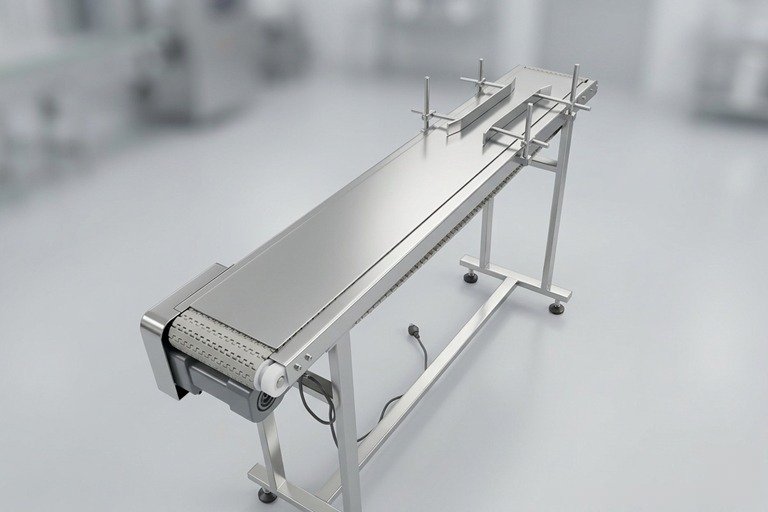

Plastic Modular Belt Conveyor

A Plastic Modular Belt Conveyor is a type of conveyor system that uses a belt made from interlocking plastic modules (typically injection-molded from materials like polypropylene, polyethylene, acetal, or nylon) connected by hinge rods in a brick-like pattern. Unlike traditional flat fabric or rubber belts, these belts are positively driven by sprockets that engage with the belt’s underside, ensuring no slippage and precise tracking.

This design allows for easy customization, curves, inclines, and various surface types (e.g., flat top, flush grid, raised rib, or friction top).

Plastic Modular Belt Conveyor Video

Key Advantages

• Easy Repair and Maintenance: Damaged modules can be replaced individually without swapping the entire belt, reducing downtime and costs.

• Durability and Resistance: Resistant to chemicals, wear, extreme temperatures (hot or cold), and corrosion—ideal for harsh environments.

• Hygiene and Cleanability: Easy to clean and sanitize; open designs allow drainage and airflow, making them popular in food processing.

• Positive Drive: Low tension required, no slippage, better tracking, and less wear on motors/bearings.

• Versatility: Handles curves, inclines/declines, high loads (even at narrow widths), accumulation, and heavy-duty applications.

• Longer Lifespan: Often lasts 2-3 times longer than fabric belts in certain uses.

Common Applications

• Food and beverage processing (e.g., meat, bakery, dairy—due to FDA-compliant materials and easy cleaning).

• Packaging and bottling lines.

• Automotive, metalworking, and tire manufacturing (high load capacity).

• Pharmaceuticals and logistics/parcel handling.

• Anywhere requiring curves or elevation changes.

Overall, plastic modular belt conveyors are a robust, flexible choice for industries prioritizing hygiene, durability, and minimal downtime.

Salient Features of Conveyor

• Available in S.S./M.S. model.

• Available as per your require speed, length, height & width.

• Structure is made of S.S. 304/M.S. 32mm square pipe with matt finish/painted.

• Table top is made of S.S.304 16 gauge sheet with matt finish.

• Conveyor Belt is supplied with 3 speed pulley.

• Special Self-aligning bearing ensure smooth and trouble free rotation of the Roller.

• Conveyor belt is used as PVC coated canvas belt/endless rubberized belt.

• The Reduction Gear Box provides jerk less & noiseless performance for long time.

Technical Specification of Plastic Modular Belt Conveyor

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
