A Reaction Kettle For Saturated Resin Jacket Reactor, also known as a jacketed reactor or stirred tank reactor, is specialized industrial equipment designed for the synthesis of various resins, including saturated resins (e.g., certain saturated polyesters, alkyd resins, or other saturated polymer resins). These reactors are commonly used in chemical plants for controlled polymerization, condensation, and mixing processes.
Reaction Kettle For Saturated Resin Jacket Reactor Video
Key Features and Design
-
Material: Typically constructed from stainless steel (SS304 or SS316) for durability, corrosion resistance, and compatibility with reactive chemicals. Some lab-scale versions use borosilicate glass.
-

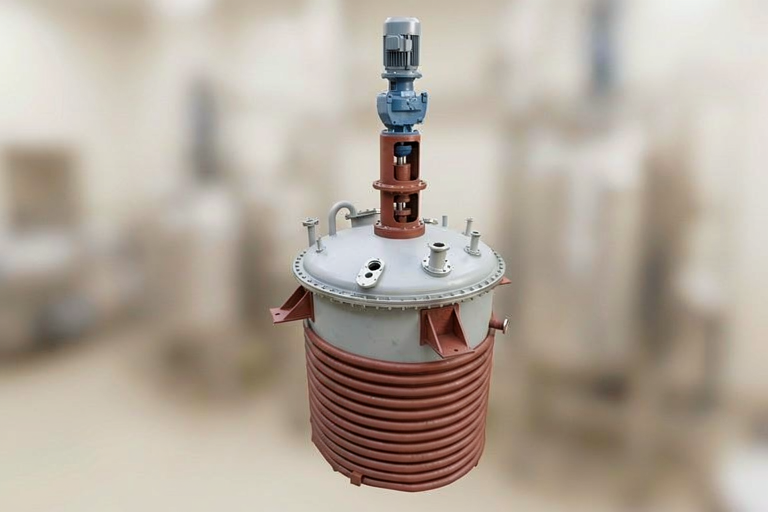

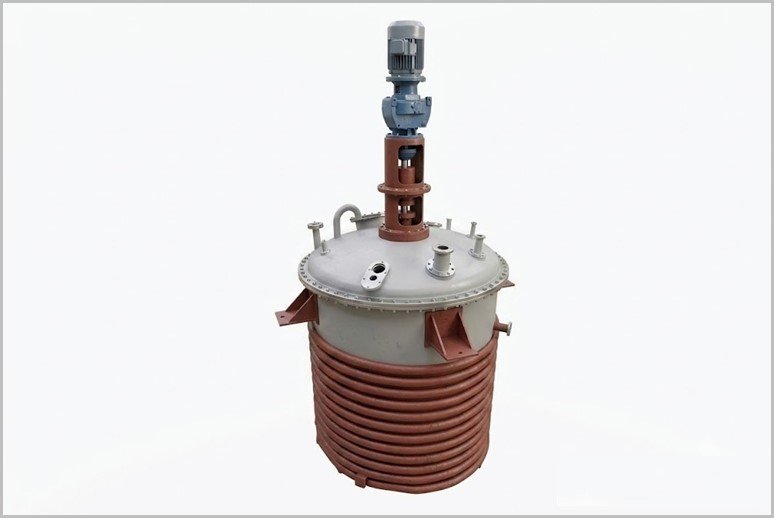

Jacketed Structure: The vessel has an outer jacket (or limpet coil) surrounding the inner tank. This allows circulation of heating/cooling media (steam, hot oil, water, or thermal fluid) to precisely control reaction temperature.
-
Capacity: Ranges from 50L (lab/pilot) to 50,000L+ for industrial production.
-
Agitator/Stirrer: Equipped with an anchor, propeller, paddle, or turbine-type stirrer driven by a motor/reducer for uniform mixing. Speed is adjustable (e.g., 50-150 RPM).
-
Heating Options: Electric heating rods, steam, thermal oil, or external coils.
- Additional Components:
-
Vertical/horizontal condensers for vapor recovery.
-
Fractionating column, water separator, and dilution kettle (especially for polyester resins).
-
Temperature/pressure sensors, vacuum capability, and mechanical seals.
-
Supports processes like heating, evaporation, cooling, and low/high-speed mixing.
-
Applications for Saturated Resins
These reactors are versatile and used for producing:
-
Saturated polyester resins (fully saturated chains, often for coatings or adhesives).
-
Alkyd resins, phenolic resins, epoxy resins, and other saturated variants.
-
Note: Many commercial listings mention “saturated resin” but often in context with unsaturated polyester resin equipment, as the same reactors handle both due to similar polycondensation processes.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
