Unsaturated Polyester Resin Reactor

The reactor is typically fabricated from high-grade stainless steel (SS 316 / SS 316L) to resist aggressive organic acids and glycols at elevated temperatures. For highly corrosive formulations or specialized catalysts, wetted parts can be upgraded to Hastelloy or Inconel. Internal contact surfaces are mirror-polished (often Ra < 0.5 µm) to prevent product adhesion and simplify cleaning.

UPR synthesis requires precise heating profiles, often ramping up to 200°C–250°C, followed by rapid cooling to quench the exothermic reaction at the target acid value and viscosity. The system uses high-temperature thermic fluid or steam for heating and cooling water for quenching, ensuring rapid thermal transfer and exact temperature control.

The reactor is equipped with specialized agitators—such as anchor, pitched blade, or dual-shaft configurations—designed to manage the dramatic viscosity increase as monomers polymerize into high-molecular-weight resins. These agitators deliver continuous torque under heavy loads and are paired with explosion-proof (flameproof/Ex-proof) motors suitable for volatile solvent environments.

A condenser/reflux system separates and refluxes unreacted glycols while continuously distilling off the water of esterification. It efficiently condenses water vapor and volatile byproducts, and a collection system accurately measures the distillate to monitor reaction progress via water-of-reaction mass balance, driving the polycondensation forward.

Nitrogen blanketing maintains an oxygen-free, inert atmosphere inside the vessel to prevent premature cross-linking, discoloration, and oxidation of the batch. Full vacuum capability allows effective stripping of residual moisture, volatile monomers, or low-boiling impurities during the final stages of processing, helping achieve higher molecular weight and product purity.

The reactor incorporates crucial pressure-relief devices (safety valves) to handle unexpected exothermic runaways or sudden pressure spikes. Explosion-proof motors and robust construction further enhance operational safety in chemical handling environments involving volatile solvents and aggressive reactants.

It prevents chemical degradation and maintains product purity when handling aggressive acids and glycols; enables exact temperature profiling and rapid quenching for safe control of exothermic reactions; smoothly handles viscosity increases with heavy-duty agitators; accurately removes water of reaction; uses nitrogen blanketing to avoid oxidation and premature cross-linking; and operates under full vacuum to eliminate residual impurities.

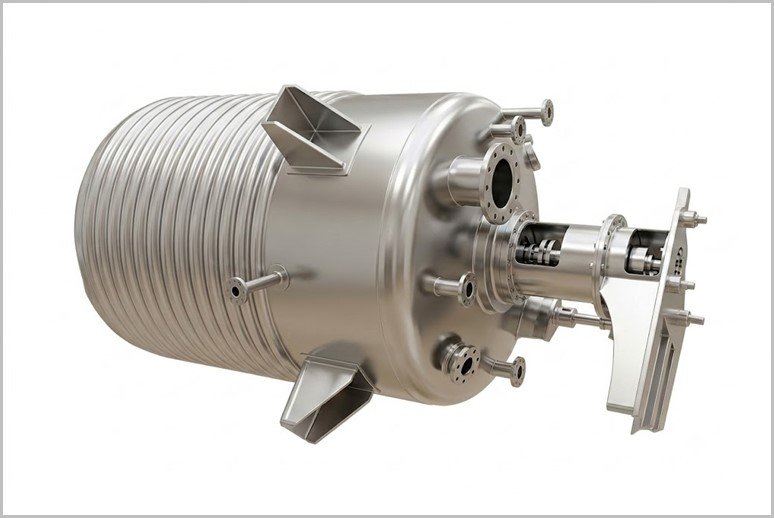

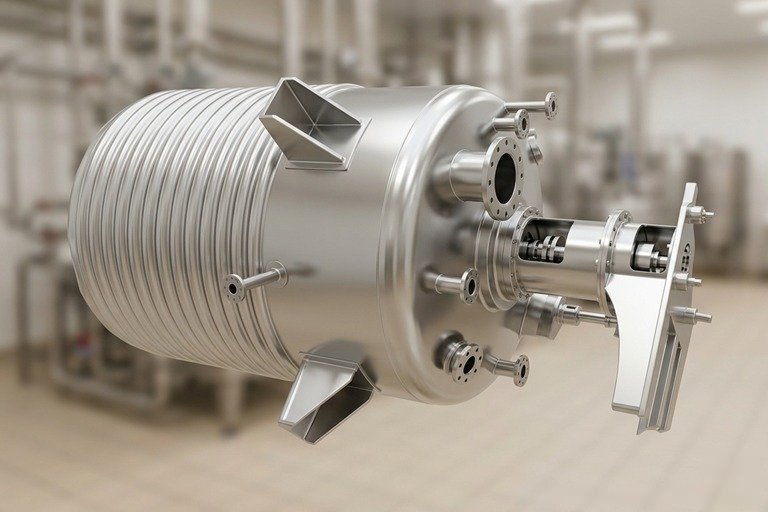

Key components include a jacketed stainless steel batch reactor vessel (vertical or horizontal) for heating/cooling; an agitator/mixer (anchor, propeller, or impeller type); a condenser system (often with fractionation column or water separator); precise heating/cooling systems (thermic fluid or steam); vacuum capability; and auxiliary equipment such as dilution kettles (for adding styrene), buffer tanks, high-position feed tanks, and oil-water separators. Capacities range from pilot-scale to full industrial production.

It is primarily used in the chemical industry for producing unsaturated polyester resins that serve as the backbone for high-performance composite materials, protective coatings, and fiberglass-reinforced plastics (FRP). Related applications extend to sectors requiring durable thermosetting polymers, with the broader manufacturing context also supporting pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, and cosmetic industries through associated equipment lines.
