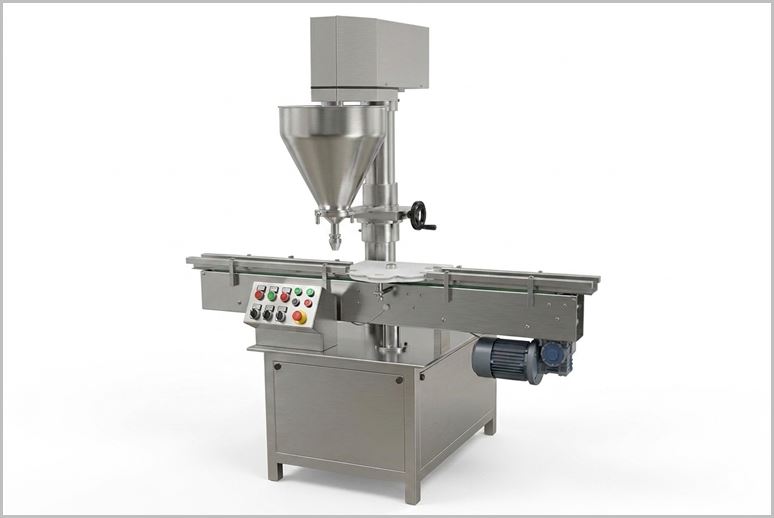

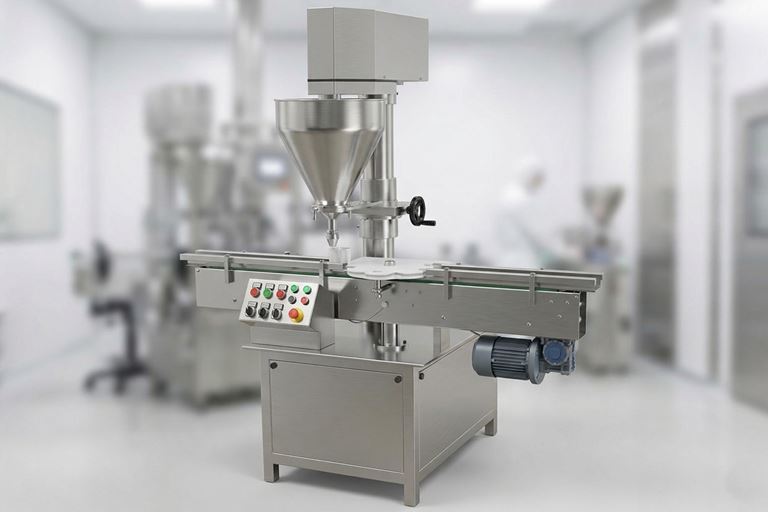

Powder Filling Machine

Q: What is the filling accuracy and production capacity of the machine?

The machine typically offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density, and environmental conditions). Production output varies by model: Single Head: up to 30 bottles/min Double Head: up to 60 bottles/min Triple Head: up to 90 bottles/min Fill volumes generally range from 5g to 60g per dose, with customization available for different container sizes.

Q: What are the key features and construction details?

Contact parts are made of SS316 and Nylon/HDPE for hygiene and easy cleaning. Machine frame is constructed from SS304 . Features include servo-driven filling heads, multiple auger systems, PLC with HMI, variable speed control (A.C. drive), and optional inbuilt laminar airflow for sterile (Class 100) filling. Quick-release tooling supports fast changeover and low maintenance.

Description

Powder Filling Machine is specialized packaging equipment designed for accurately and efficiently dispensing dry powder or granular materials into containers such as bottles, pouches, sachets, jars, or bags. These machines are essential in industries where precision, speed, and hygiene are critical, helping to automate production lines, reduce waste, and ensure consistent fill volumes. They handle a variety of powders, from fine and free-flowing to non-free-flowing or sticky ones, often using mechanisms like auger screws to measure and transfer product without clumping or dust.

Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.

Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.

Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.

Structure Body: This is basic structure that supports the entire system.

Controls: This is the main mechanism to operate the machine parameters.

If you need details on specific models and pricing, let me know!

Salient Features of Powder Filling Machine

Standard as well as Optional Servo Driven Filling Head.
Multiple auger head system as per customer requirements.
All contact parts made of SS316 and Nylon/HDPE material with easy removal system for Cleaning.
Machine construction in SS304 material.
Filling Accuracy of +/- 3% depending upon powder characteristics and environmental conditions.

A.C. Variable Frequency Drive Speed Control
Built in Turn Tables with Separate Drive for speed control.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered.
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.

Working Principle of Powder Filling Machine

Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.

Most powder filling machines operate on an auger filling principle, which is highly accurate for volumetric dosing:

Hopper Loading: Powder is loaded into a stainless steel hopper.

Measurement: An auger screw draws a precise amount of powder based on speed, pitch, and revolutions, controlled by sensors or electronic scales.

Dispensing: The measured powder is released into the container via a funnel or nozzle.

Sealing/Integration: Many integrate with sealing, capping, or labeling stations for full automation.

Technical Specification of Powder Filling Machine

Models	AI-APF 1	AI-APF 2	AI-APF 3
Production Output	Up to 30 bottles/minute	Up to 60 bottles/minute	Up to 90 bottles/minute
Fill Volume	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System
Container Size	Custom made as per required container size	Custom made as per required container size	Custom made as per required container size
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder
Power Load	2 H. P.	3 H. P.	4.5 H. P.
Overall Dimension	1810 mm (L) x 905 mm (W) x 1900 mm approx.	2300 mm (L) x 905 mm (W) x 1900 mm approx.	3000 mm (L) x 905 mm (W) x 1900 mm approx.
Conveyor Height	850 – 950 mm adjustable	850 – 950 mm adjustable	850 – 950 mm adjustable
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of Powder Filling Machine

Versatility Across Powders and Containers

High-Speed Automated Production

Hygienic Design and Easy Maintenance

Reduced Waste, Dust, and Operational Costs

Key Features of Powder Filling Machine

Accuracy: ±0.5-1% fill tolerance; look for servo motors and load cells.

Material Compatibility: Stainless steel construction for corrosion resistance and easy cleaning.

Speed and Output: 10-100 containers/min; scalable for production needs.

Customization: Options for dust collection, anti-static features, or integration with elevators/feeders.

Safety/Compliance: GMP/FDA standards for food/pharma; CE certification for global use.

FAQ for Powder Filling Machine

What is a Powder Filling Machine and how does it work?

A Powder Filling Machine (also known as an Auger Powder Filling Machine) is specialized equipment used to accurately dispense dry powders, granules, or non-free-flowing materials into containers such as bottles, jars, pouches, or sachets. It works on the auger filling principle: powder is loaded into a hopper, a rotating helical screw (auger) measures a precise volume, and dispenses it through a funnel into the container. The process is controlled by sensors, a magnetic clutch, and optional PLC systems for consistent, repeatable fills.

What is the filling accuracy and production capacity of the machine?

The machine typically offers a filling accuracy of ±2–3% (depending on powder characteristics, bulk density, and environmental conditions). Production output varies by model:

Single Head: up to 30 bottles/min
Double Head: up to 60 bottles/min
Triple Head: up to 90 bottles/min

Fill volumes generally range from 5g to 60g per dose, with customization available for different container sizes.

What materials and industries is the Powder Filling Machine suitable for?

It handles both free-flowing and non-free-flowing powders, granules, and challenging materials that tend to clump or aerate. It is widely used in the Pharmaceutical, Cosmetic, Chemical, Food & Beverage, Nutraceutical, and Biotech industries.

What are the key features and construction details?

Contact parts are made of SS316 and Nylon/HDPE for hygiene and easy cleaning.
Machine frame is constructed from SS304.
Features include servo-driven filling heads, multiple auger systems, PLC with HMI, variable speed control (A.C. drive), and optional inbuilt laminar airflow for sterile (Class 100) filling.
Quick-release tooling supports fast changeover and low maintenance.

What are the main advantages of using this Powder Filling Machine?

High precision with minimal product wastage.
Hygienic, easy-to-clean design with excellent sterility (especially with laminar airflow).
Easy integration into complete filling-capping-labeling lines.
Versatility for different powders and containers.
Regulatory compliance support (IQ/OQ documentation available) and low maintenance.
