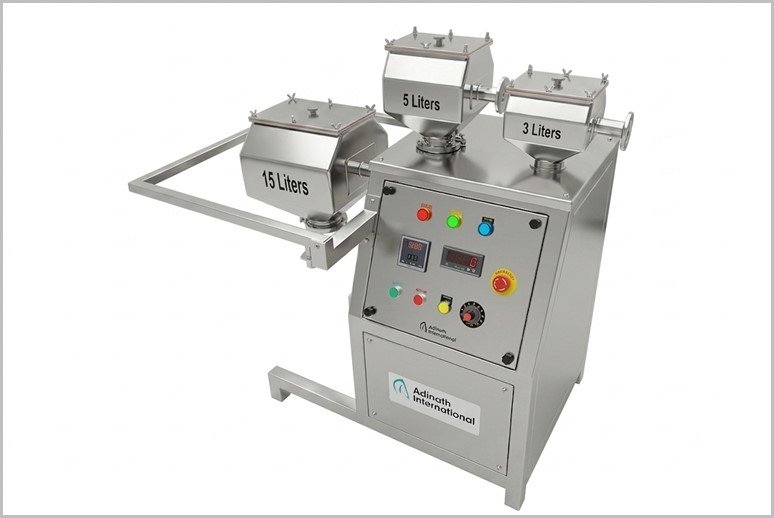

R&D Octagonal Blender

It works on the principle of gentle tumbling and multi-directional material flow. The octagonal container rotates slowly (typically 2–45 RPM), causing granules to move continuously from all sides due to the shape. This results in excellent blending and lubrication with minimal shear, especially for crystalline and granular materials. The container is usually filled to about two-thirds capacity for optimal results.

Lab-scale models include:

• AOB-1: 1L gross / 0.6L working
• AOB-2: 2L gross / 1L working
• AOB-3: 3L gross / 1.5L working
• AOB-5: 5L gross / 3L working
• AOB-10: 10L gross / 5L working

These are ideal for formulation development and small trials.

• Compact GMP-compliant design
• Octagonal shape for superior mixing at low RPM
• Contact parts in SS 304/SS 316/SS 316L
• Manual inching with hand wheel
• Easy loading/unloading and cleaning
• Low power consumption
• Safety guards and interlocks
• Removable baffles for enhanced mixing (in some models)

It is widely used in:

• Pharmaceutical Industry
• Nutraceutical Industry
• Herbal & Ayurvedic Industry
• Biotech & Cosmetic Industry
• Chemical & Food Industry

It is perfect for R&D formulation development and scale-up studies.

The octagonal geometry creates multi-directional particle movement and continuous rolling of material even at slow speeds. This provides better homogeneity for granules and crystalline products compared to cylindrical or simple tumbling mixers, while requiring lower RPM and reducing power consumption.

• Gentle mixing with minimal shear (preserves particle size)
• Superior blending efficiency and uniformity
• Low power consumption for bigger batches
• Easy cleaning and maintenance
• Dust-free operation
• Compact design suitable for lab spaces
• Safe and user-friendly with inching facility

• Models from 1L to 10L gross capacity
• Power: 220V, Single Phase
• Slow rotation speed for gentle action
• Stainless steel contact parts
• Manual or optional automated controls
• Compact dimensions suitable for laboratory benches
• Low net weight (5–10 kg depending on model)

The machine is highly user-friendly with simple controls, manual inching via hand wheel, and quick loading/unloading. Its smooth stainless steel surfaces, removable parts, and sanitary design allow fast, thorough cleaning — essential for frequent product changeovers in R&D labs.

Yes. Adinath offers customization options such as different capacities, material upgrades (SS 316L), variable speed drives, additional baffles, vacuum loading systems, and specific safety features to meet laboratory or regulatory requirements.
