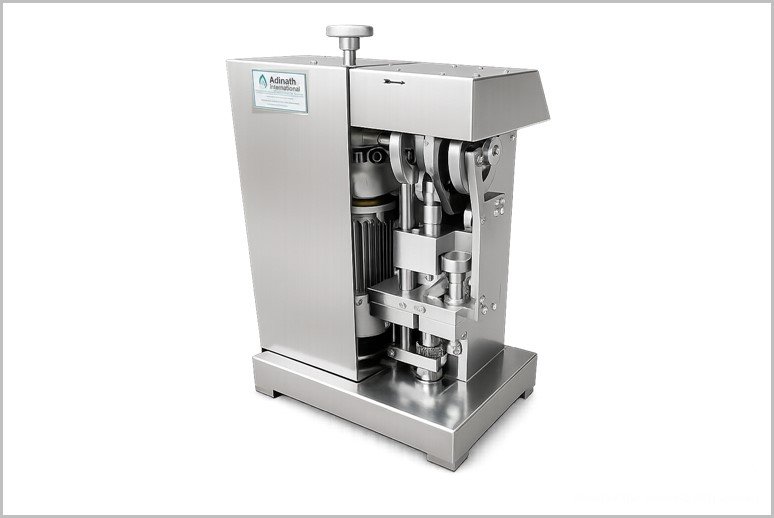

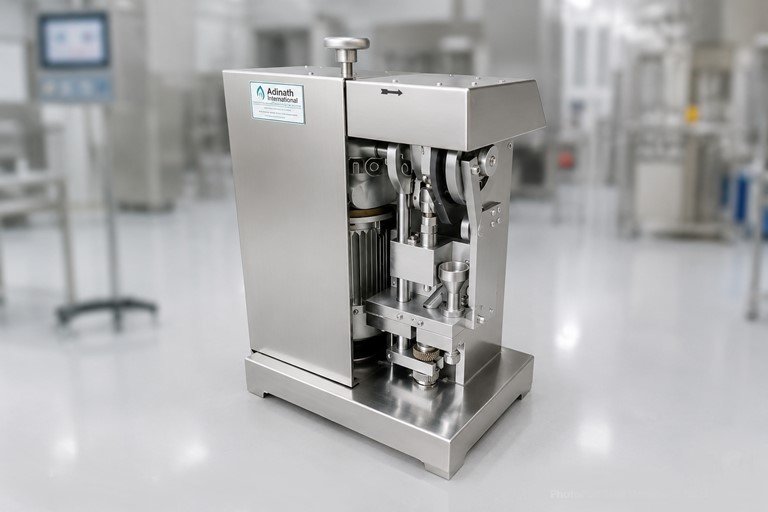

R&D Tablet Press Machine

• Model: ATP 1
• Max. Compression Force: 4 ton
• Max. Tablet Diameter: 12mm
• Max. Depth of Fill: 12mm
• Max. Tablet Thickness: 6mm
• Production Output: Up to 2,500 tablets/hour (depending on product and tablet size/shape)
• Power: 1 H.P. (voltage adjustable as per requirements)
• Compact dimensions: Approx. 450mm (L) x 550mm (W) x 750mm (H), Net weight ~100 kg.

It is suitable for:

• Pharmaceutical Industry
• Nutraceutical Industry
• Herbal/Ayurvedic Industry
• Biotech Industry
• Cosmetic Industry
• Chemical Industry
• Food Industry.

• Compact GMP-compliant model
• Motorized operation with hand wheel option
• Heavy-duty structure to minimize vibration
• SS coverings for safety and easy dismantling of contact parts for cleaning
• Hard chrome plated die & punch for rust-free operation
• External hopper for easy powder feeding
• Small footprint, easily movable.

It operates on the principle of compressing powder into tablets using a single-punch system. Powder is fed from the hopper, compressed with adjustable force, and tablets are ejected automatically. It supports round or irregular tablet shapes and is designed for flexibility in R&D settings with quick tooling changes.

• Minimal material usage and reduced waste
• Precise control for formulation development and data collection
• Flexibility to test different shapes, sizes, and pressures
• Cost and time efficiency in early development stages
• Supports scale-up studies by simulating production conditions.

Yes. It can produce various round or irregular (special-shaped) tablets. It is excellent for quick experimentation with new formulas, adjusting compression force, and testing tablet quality with small material quantities.

Its compact size, low material consumption, ease of cleaning, quick changeover, and focus on precision make it perfect for research labs, pilot-scale work, hospitals, and development departments. It allows scientists to gather valuable data before moving to full-scale production.

The machine features a heavy-duty structure with SS coverings over moving parts, interlocking safety guards, and complies with GMP standards. All contact parts are easy to dismantle and clean. It is built for reliable, low-vibration operation.

Yes. Power voltage can be adjusted for different regions. It supports customization as per customer requirements, and Adinath offers a range of other R&D lab machines (e.g., blenders, granulators) to complement it. Contact the team for tailored solutions or a quick quote.
