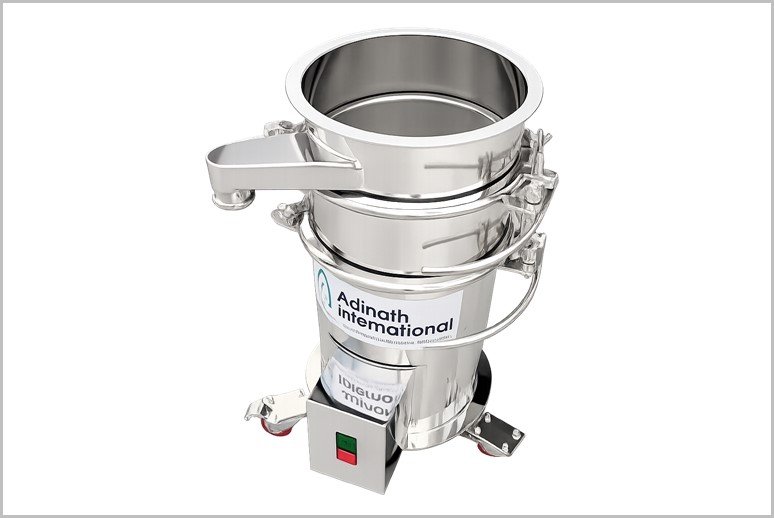

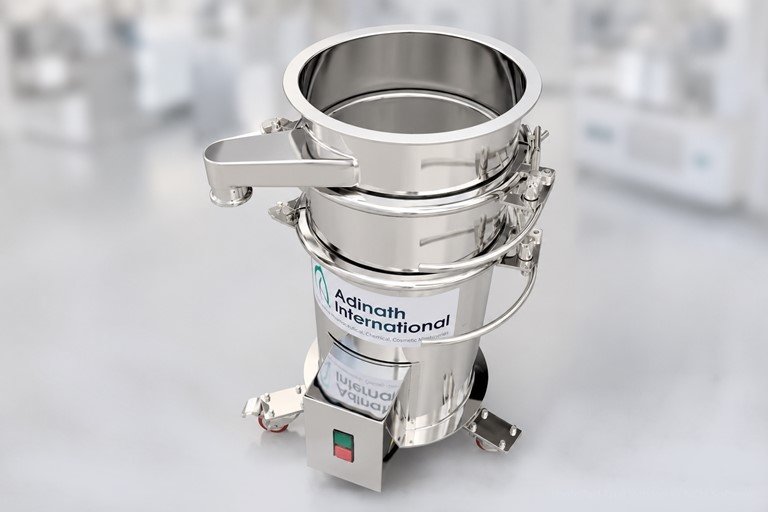

R&D Vibro Sifter

Key models include AVS-20 and AVS-24.

• Output: 20–70 kg/hr (AVS-20) to 20–140 kg/hr (AVS-24)
• Screen MOC: SS 304 / SS 316
• Motor: 0.25 H.P.
• Construction: Compact GMP model with stainless steel contact parts
• Features: Dust-free lid, silicon sealing, and easy assembly/disassembly. Power voltage is adjustable per requirements.

It is ideal for:

• Pharmaceutical Industry
• Nutraceutical Industry
• Herbal & Ayurvedic Industry
• Biotech Industry
• Cosmetic Industry
• Chemical Industry It supports small-batch testing and quality control across these sectors.

• Compact GMP-compliant design
• Fitted with vibro motor and long-life screens
• Dust-free operation with lid and silicon sealing
• Stainless steel (SS 304/316) contact parts
• Easy cleaning, assembly, and screen changeover
• Low maintenance and operating costs
• IQ/OQ documentation and PLC options available.

The machine consists of a circular pre-tensioned screen mounted on a frame with a vibrating motor. The motor imparts three-plane gyratory vibrations via eccentric weights. Material is fed onto the screen; smaller particles pass through while larger ones are discharged. Springs isolate vibrations for stable, efficient operation (typically 3–5 minutes per batch).

• Compact and portable for lab use
• Suitable for small batches and R&D
• High precision and uniform particle size distribution
• Dust-free, hygienic operation
• Energy-efficient with reduced motor HP and low maintenance
• Quick cleaning and minimal material waste.

Yes. It handles powders, granules, and solid-liquid mixtures effectively. It is optimized for small R&D batches (typically 10–50 kg) with options for various screen sizes (including 12-inch lab models) and multi-deck configurations for grading into multiple fractions.

Its small footprint, low material consumption, precise control, ease of cleaning, and GMP compliance make it perfect for formulation development, pilot-scale testing, quality control, and process validation in space-constrained labs.

The machine is built as a compact GMP model with stainless steel construction, dust-free design, and easy-to-clean contact parts. It offers low-vibration operation, optional IQ/OQ documentation, and can include PLC controls for enhanced compliance in regulated environments.

Yes. Screen sizes (20″ to 60″ dia. options), power voltage, and additional features like PLC with GUI can be adjusted to customer needs. It integrates well with other R&D lab machines such as blenders, granulators, and tablet presses. Contact us for tailored solutions or a quick quote.
