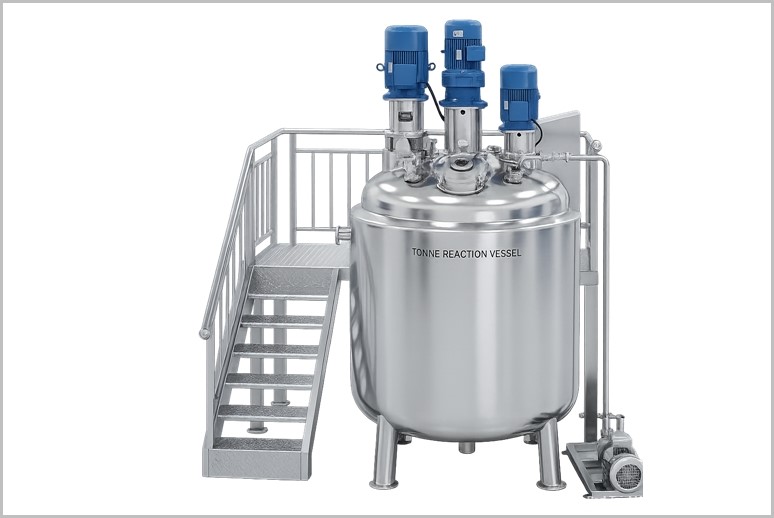

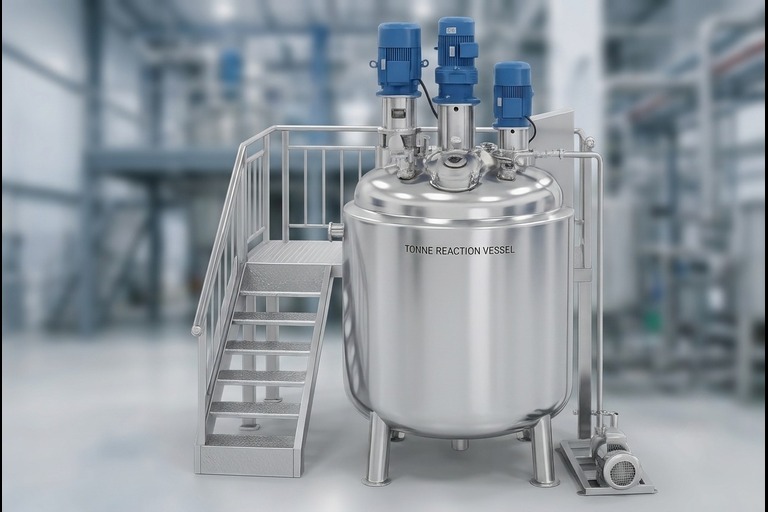

A High Pressure Reaction Vessel, also known as a pressure reactor or autoclave, is a specialized container designed to conduct chemical reactions under elevated pressures and sometimes high temperatures. These vessels are essential in laboratory, pilot plant, and industrial settings for processes where pressure influences reaction kinetics, solubility, or product yields. Unlike standard reaction flasks, they are built to withstand extreme conditions while minimizing risks like explosions or leaks.
Mixing Vessel Video
Key Design and Materials
High pressure vessels are engineered for safety and durability:
-
Materials: Typically constructed from stainless steel, alloys like Hastelloy or Inconel for extreme conditions, or glass for lower-pressure lab use. Exotic materials are used for corrosive environments.
-
Pressure and Temperature Ratings: Common ranges include 1,900–5,000 psi (131–345 bar) and up to 350°C, with some models handling thousands of bars.
-
Components: Include thick walls, seals, stirrers for mixing, ports for gas/liquid introduction, pressure relief valves, and rupture disks to prevent over-pressurization.
-
Sizes: From small lab-scale to larger pilot units.
How They Work
-
Setup: Load reactants (solids, liquids, or gases) into the vessel, often using secondary containers like test tubes or flasks to contain spills.
-
Pressurization: Seal the vessel and introduce pressure via external gases or by heating a sealed system, where temperature and pressure rise together per the ideal gas law (P ∝ T).
-
Reaction: Agitate with magnetic stirrers or impellers while monitoring pressure/temperature via gauges. Reactions proceed faster under pressure, accelerating desired pathways without proportionally speeding decomposition.
-
Shutdown: Cool, vent slowly to avoid foaming, and disassemble for analysis.
Pressure increases reaction rates by shifting equilibria or enhancing gas solubility, saving time and energy—up to 92% electricity and 200 gallons of cooling water per reaction compared to atmospheric conditions.
Applications
These vessels enable reactions impractical at ambient pressure:
-
Catalysis: Hydrogenation, oxidation, polymerization.
-
Synthesis: Hydrothermal processes, supercritical fluid studies, nanomaterial production.
-
Testing: Corrosion resistance, component durability in high-pressure environments.
-
Industries: Pharmaceuticals, energy, polymers, and green chemistry.
They align with green chemistry principles by enabling closed systems that prevent toxic gas releases and minimize energy input.
Safety Considerations
High pressure introduces hazards like vessel rupture or runaway reactions. Always:
-
Use vessels within rated limits; never exceed pressure/temperature specs.
-
Select compatible materials and incorporate safety features.
-
Follow SOPs: Wear PPE, work in fume hoods, monitor for leaks, and vent gradually.
-
Comply with standards like ASME Boiler and Pressure Vessel Code.
-
For labs: Start with small scales; avoid explosive mixtures.
