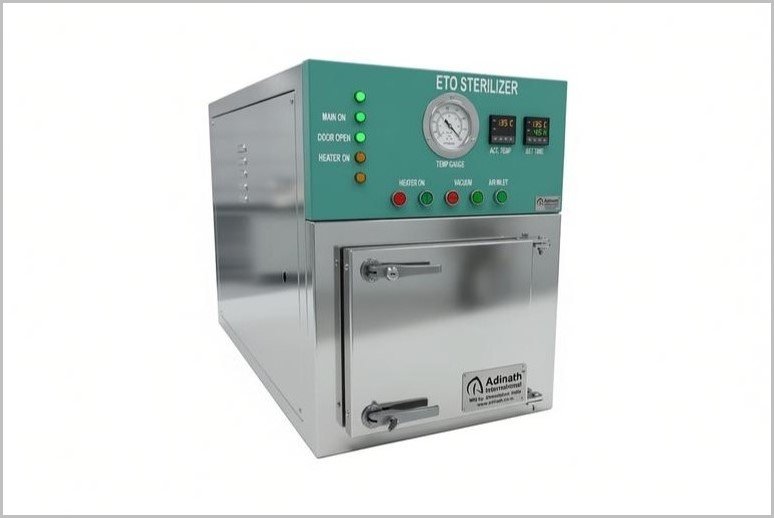

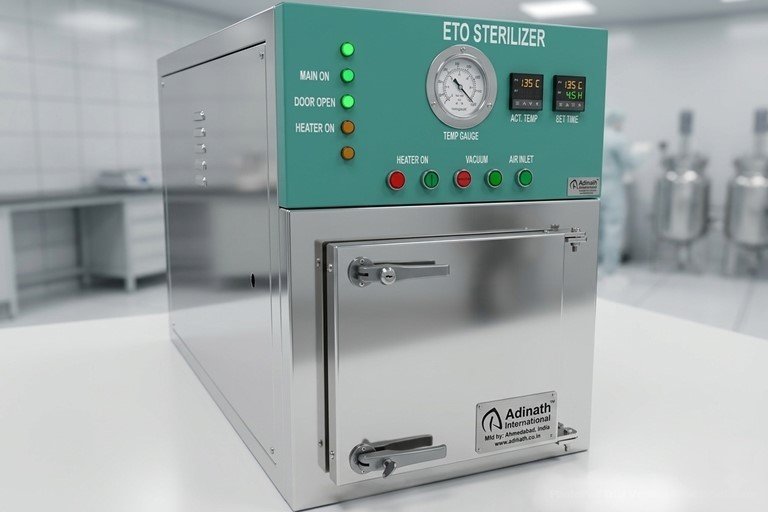

2 Cubic Feet Sterilizer

A 2 Cubic Feet Sterilizer typically refers to a compact autoclave or gas-based sterilization unit with an internal chamber volume of approximately 2 cubic feet. These are tabletop or small benchtop models commonly used in medical clinics, dental offices, laboratories, veterinary practices, or small hospitals for sterilizing instruments, trays, pouches, and other heat- or moisture-sensitive items. They are designed for low- to medium-volume processing and prioritize ease of use, quick cycles, and compliance with standards like those from the Association for the Advancement of Medical Instrumentation (AAMI).

Eto Gas Sterilizer Video

Key Advantages Include:

• Portability and Space Efficiency: Fits on a countertop; ideal for space-constrained environments.

• Cycle Times: Often 20–60 minutes per load, depending on the type.

• Load Capacity: Can handle 2–4 trays of instruments or 3–4 standard cassettes.

Types of 2 Cubic Feet Sterilizers

There are two primary categories based on sterilization method:

1. Steam Autoclaves (Most Common):

   • Use high-pressure steam for fast, effective killing of bacteria, viruses, and spores.

   • Suitable for heat- and moisture-tolerant items like surgical tools and linens.

2. Ethylene Oxide (ETO) Gas Sterilizers:

   • Use ETO gas for low-temperature sterilization of heat-sensitive or moisture-sensitive items.

   • Longer cycles (8–12 hours) due to aeration to remove gas residues; requires ventilation for safety.

Salient Features of ETO Sterilizer

• Machine is suitable to Sterilize Surgical Medical Device products like I.V. Sets, Disposable Syringes, Disposable Surgical Set, catheter, Urine Bag etc.

• ETO Sterilization reduce microbiological load and increase life span of material.

• Modular construction of chamber.

• Model is available from 0.5 Cubic Meters to 40 Cubic Metres.

• Easy to operate.

• Fully automatic operation based on PLC control.

• Semi Automatic (Pneumatically Operated Ball Valve) Control.

• Contact parts are SS 304 / 316.

• Process time about 8 hours.

• IQ/OQ/DQ documentation can be offered on demand. (OPTIONAL).

• It is useful for prevention of micro biological contamination useful for treatment of spices, dried nuts, Foods Packed cereals etc.

Process Operation of ETO Sterilizer

Ethylene Oxide Sterilization (Sterilisation) offers various distinct advantages over the conventional steam sterilizers (sterilisers), being a DRY & COLD (operates at 50ºC ) process proves very useful in sterilization of expensive items, also it has got a unique penetration ability, so it is very useful in sterilization (Sterilisation) of expensive and delicate items such as Cardiac catheters, Stents, IOL’s Tubings, various types of scopes, sharp surgical instruments etc., its unique mode of action, also enhances the life of several surgical accessories & disposables items thus making them perfectly reusable.

Types of EO Gas Sterilizers

We are one of the leading EO Gas Sterilizer manufacturer in India. We manufacture below two types of ETO sterilizers:

Semi Automatic Operation Mode EO Sterilizer: In this type of control mode there are analog type buttons onto control panel of the machine through which machine operation procedure will be done.

Fully Automatic Operation Mode EO Sterilizer: This is PLC HMI based fully automatic control mode equipment in which there is HMI mounted onto control panel of the machine through which operation procedure done.

Technical Specification of EO Gas Sterilizer

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
